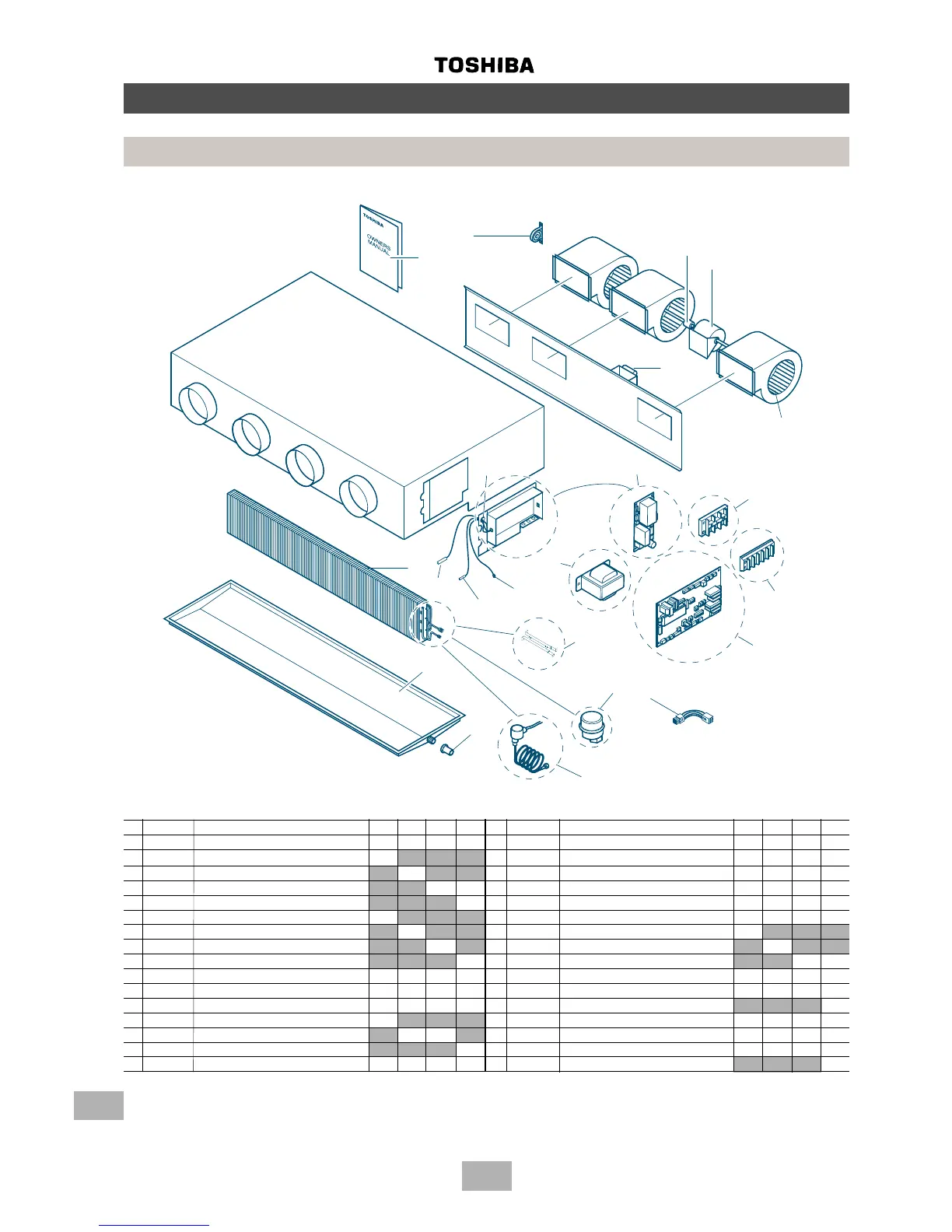

Exploded views and service parts
Indoor units
Built-In Duct – MM-B056, MM-B080, MM-B112, MM-B140
Ref. Part No. Description B065 B080 B112 B140 Ref. Part No. Description B065 B080 B112 B140
01 43120149 MULTI-BLADE FAN 1 2 2 3 09 43A60025 TERMINAL ‘ABC PQ E’ 1 1 1 1
02 43A21009 FAN MOTOR (60 W) 1 10 43A60012 TERMINAL ‘E L N’ 1 1 1 1
02 43121516 FAN MOTOR (100 W) 1 11 43A69025 PCB - CONTROL (CM**CO2) 1 1 1 1
02 43121528 FAN MOTOR (120 W) 1 12 43A69024 PCB - POWER (P**RC01) 1 1 1 1
02 43121535 FAN MOTOR (140W) 1 13 43A49010 PRESSURE SENSOR (Service) 1 1 1 1
03 43A44068 REFRIGERATION ASSEMBLY 1 14 43A46037 PULSE MOTOR VALVE - COIL 1 1 1 1
03 43A44069 REFRIGERATION ASSEMBLY 1 15 43A72004 DRAIN PAN ASSEMBLY 1
03 43A44070 REFRIGERATION ASSEMBLY 1 15 43A72005 DRAIN PAN ASSEMBLY 1
03 43A44071 REFRIGERATION ASSEMBLY 1 15 43191310 DRAIN PAN ASSEMBLY 1 1
04 43A50024 TEMP. SENSOR - AMBIENT TA 1 1 1 1 16 43160394 CONNECTOR 9P 1 1 1 1
05 43A50021 TEMP. SENSOR - GAS TC1 1 1 1 1 17 43A5006 TEMP. SENSOR CLIP TC 2 2 2 2
06 43A50022 TEMP. SENSOR - LIQUID TC2 1 1 1 1 18 43125135 BEARING 1
07 43155080 MF CAPACITOR 1 19 43A60009 BUSHING ∅ 38 mm 1 1 1 1
07 43155096 MF CAPACITOR 1 1 20 43A88013 OWNER’S MANUAL 1 1 1 1
07 43155097 MF CAPACITOR 1 21 43A70002 DRAIN SOCKET 1 1 1 1
08 43A58007 TRANSFORMER (MMS) 1 1 1 1 22 43125137 COUPLING 1
18
2
7
1
3
5
20
15
21
4
22
6
19
16
17
14
13
8
12
11
9
10
