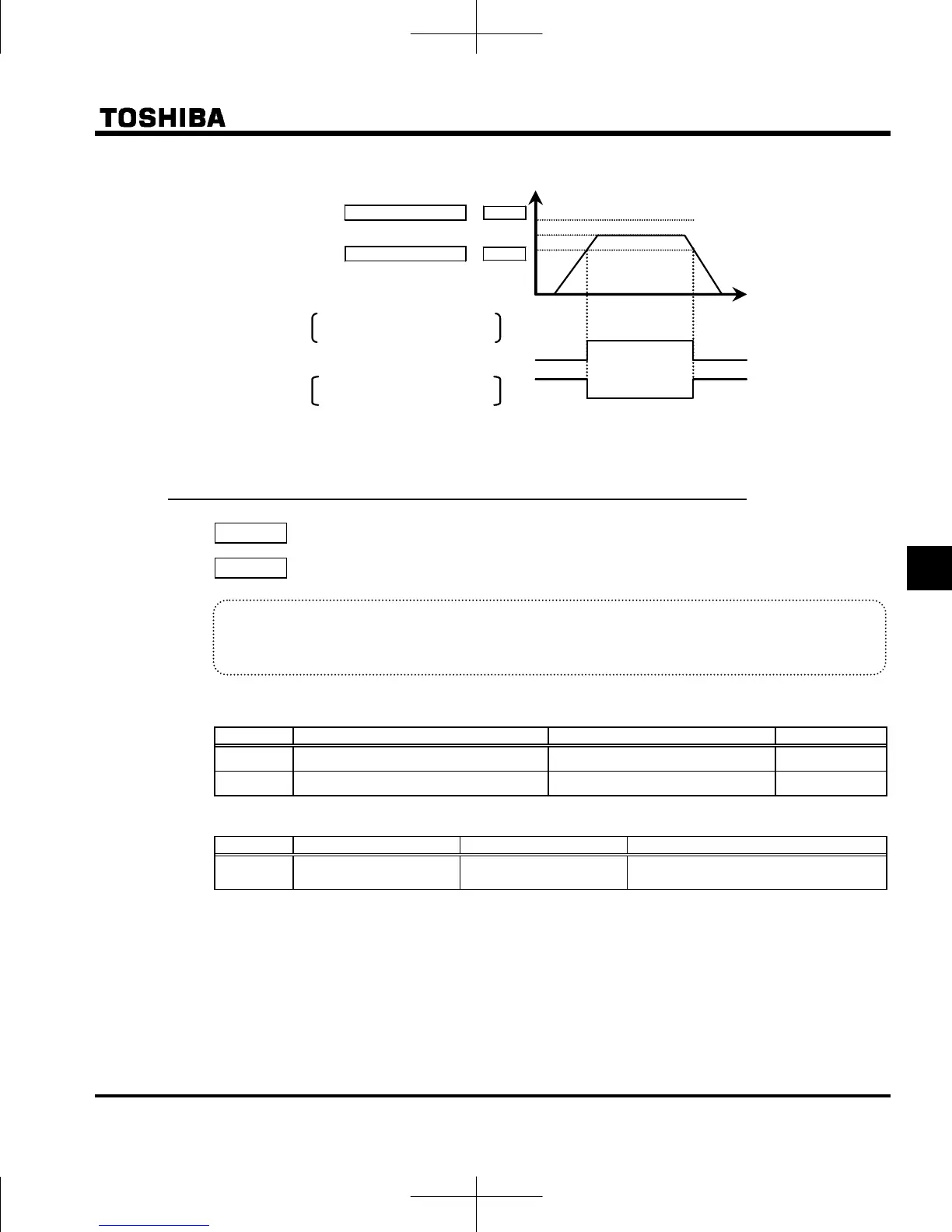

E6581697
F-3
6
Output frequency [Hz]
Time [s]
Designated frequency  
ON
OFF
Designated frequency  
Setting frequency
Output frequency attainment signal
: OUT-NO terminals
Inversion of output frequency
attainment signal
ON
OFF
0
6.1.3 Output of set frequency speed reach signal
f101 : Speed reach setting frequency
f102 : Speed reach detection band
 Function
When the output frequency becomes equal to the frequency set by
f101f102, an ON or OFF
signal is generated.
[Parameter setting]
■Parameter setting of frequency and detection band
Title Function Adjustment range Default setting
f101 Speed reach setting frequency 0.0-fh (Hz) 0.0
f102
Speed reach detection band 0.0-
fh (Hz) 2.5
■Parameter setting of output terminal selection
Title Function Adjustment range Setting
f131
Output terminal
selection 2A (OUT)
0-255
(Refer to section 11.7.)
8: RCHF (Set frequency attainment
signal)
Setting value 9 is reverse signal.
Note: Set
f132 to assign to FLA-FLC-FLB terminals and f130 to RY-RC terminal.
