E6581697
C-25
3

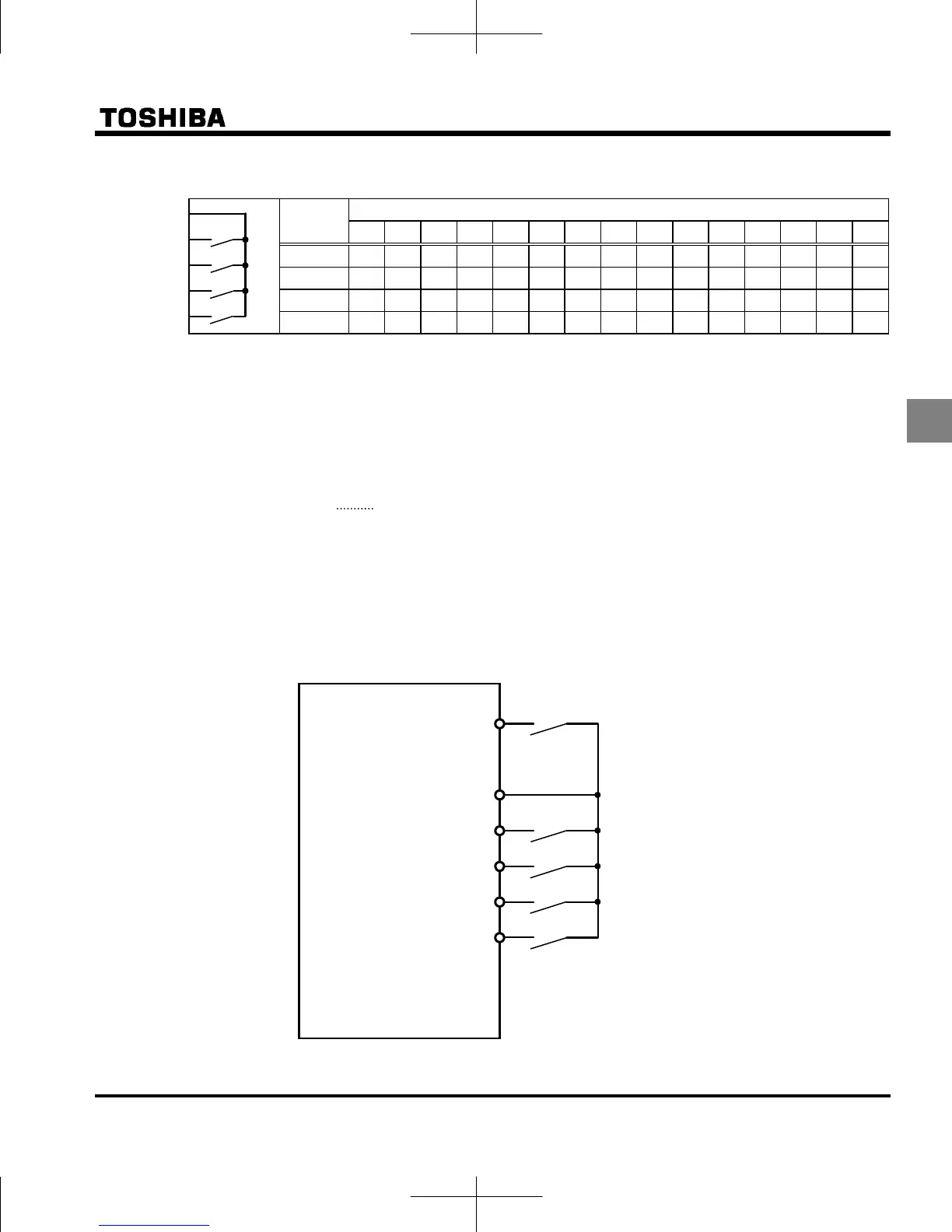

Preset-speed logic input signal example: Slide switch SW1 = SINK side
O: ON -: OFF (Speed commands other than preset-speed commands are valid when all are OFF)
Preset-speed
Terminal
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
S1-CC - - - - - - -
S2-CC - -- -- - -
S3-CC - - - ----
RES-CC -------
, Terminal functions are as follows.
Terminal S1............. Input terminal function selection 4A (S1)
=10 (Preset-speed command 1: SS1)
Terminal S2............. Input terminal function selection 5 (S2)
=12 (Preset-speed command 2: SS2)
Terminal S3............. Input terminal function selection 6 (S3)
=14 (Preset-speed command 3: SS3)
Terminal RES Input terminal function selection 3A (RES)
=16 (preset-speed command 4: SS4)
, In the default settings, SS4 is not assigned. Assign SS4 to RES with input terminal function selection.
CC
S1
S2
RES
S3
[ Example of a connection diagram ]
(with sink logic settings)
F (Forward run)
CC
RES
S2
S3
S1
Forward
Preset-speed 1 (SS1)
Preset-speed 3 (SS3)
Preset-speed 4 (SS4)
Preset-speed 2 (SS2)
Common
