C-26
3
3) Using other speed commands with preset-speed command
Command mode selection

0: Terminal board
1: Panel keypad (including extension panel),
2: RS485 communication
3: CANopen communication
4: Communication option
Frequency setting
mode selection 
1: Terminal
board VIA
2: Terminal
board VIB
5: UP/DOWN
from external
logic input
8: Terminal
board VIC
11: Pulse train
input
0:Setting dial 1
(save even if
power is off)
3: Setting dial 2
(press in center
to save)
4: RS485
communication
6: CANopen
communication
7: Communication
option
1: Terminal
board VIA
2: Terminal
board VIB
5: UP/DOWN
from external
logic input
8: Terminal
board VIC
11: Pulse train
input
0:Setting dial 1
(save even if
power is off)
3: Setting dial 2
(press in center
to save)
4: RS485
communication
6: CANopen
communication
7: Communication
option
Active Preset-speed command valid Note)
Ter mi nal
command valid
Setting dial
command valid
Communication
command valid
Preset-speed
command
Inactive
Ter mi n al
command valid
Setting dial
command valid
Communication
command valid
Note) The preset-speed command is always given priority when other speed commands are input at the same time.

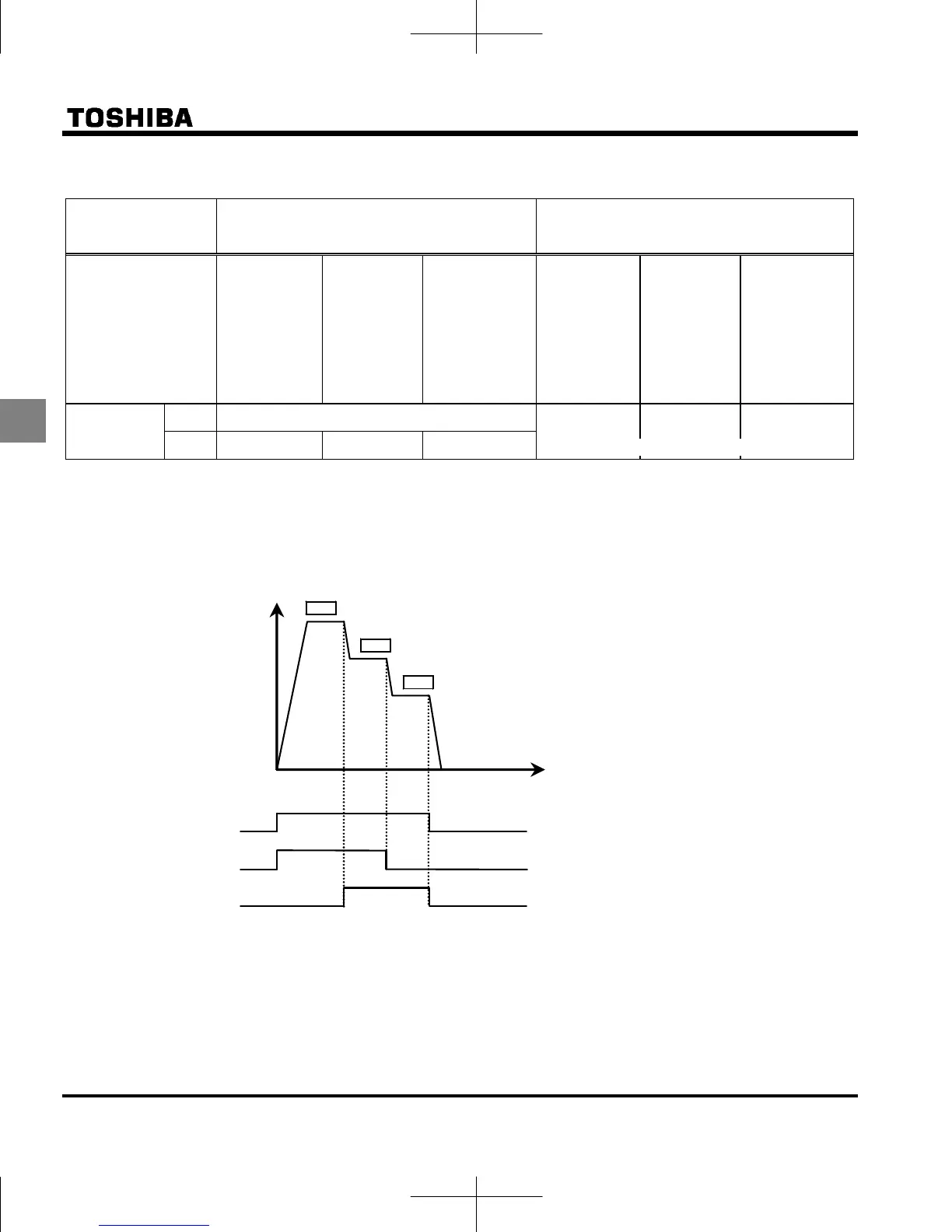

An example of three-speed operation with the default settings is shown below. (Frequency settings are required for
 to .
F-CC
S1(SS1)-CC
S2(SS2)-CC
ON
OFF
ON
OFF
ON
OFF



Output frequency
Time
0
Example of 3-speed operation
(The inverter doesn't accept Preset-speed command.)
