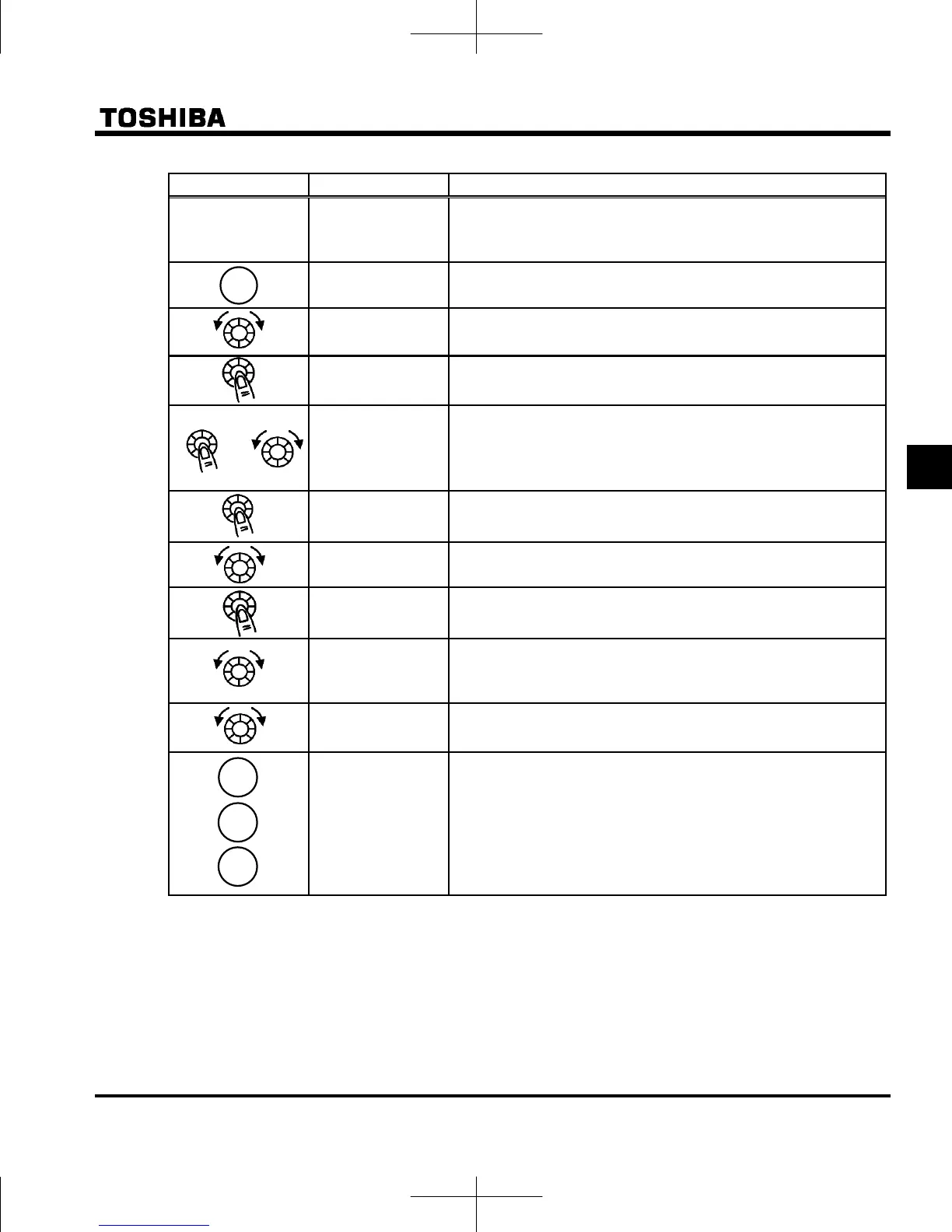

How to search and reprogram parameters
Panel operation LED display Operation
Displays the output frequency (operation stopped).
(When standard monitor display selection is set as =
[output frequency])
Displays the first basic parameter "History function ()."
Turn the setting dial, and select .
Press the center of the setting dial to enter the user parameter setting
change search mode.
or
Searches for and displays parameters different to the default settings.
Parameters are changed by either pressing the center of the setting
dial or turning it to the right. (Turning the setting dial to the left
searches for parameter in the reverse direction.)
Press the center of the setting dial to display set values.
Turn the setting dial, and change set values.
Press the center of the setting dial to set values. The parameter name
and set value light alternately and are written.
()
Use the same steps as those above and turn the setting dial to
display parameters to search for or whose settings must be changed,
and check or change the parameter settings.
When appears again, the search is ended.
Parameter display
A search can be canceled by pressing the MODE key. Press the key
once while the search is underway to return to the display of
parameter setting mode. Pressing it while searching returns to the
display.
After that you can press the MODE key to return to the status monitor
mode or the standard monitor mode (display of output frequency).
MODE
MODE
MODE
MODE
