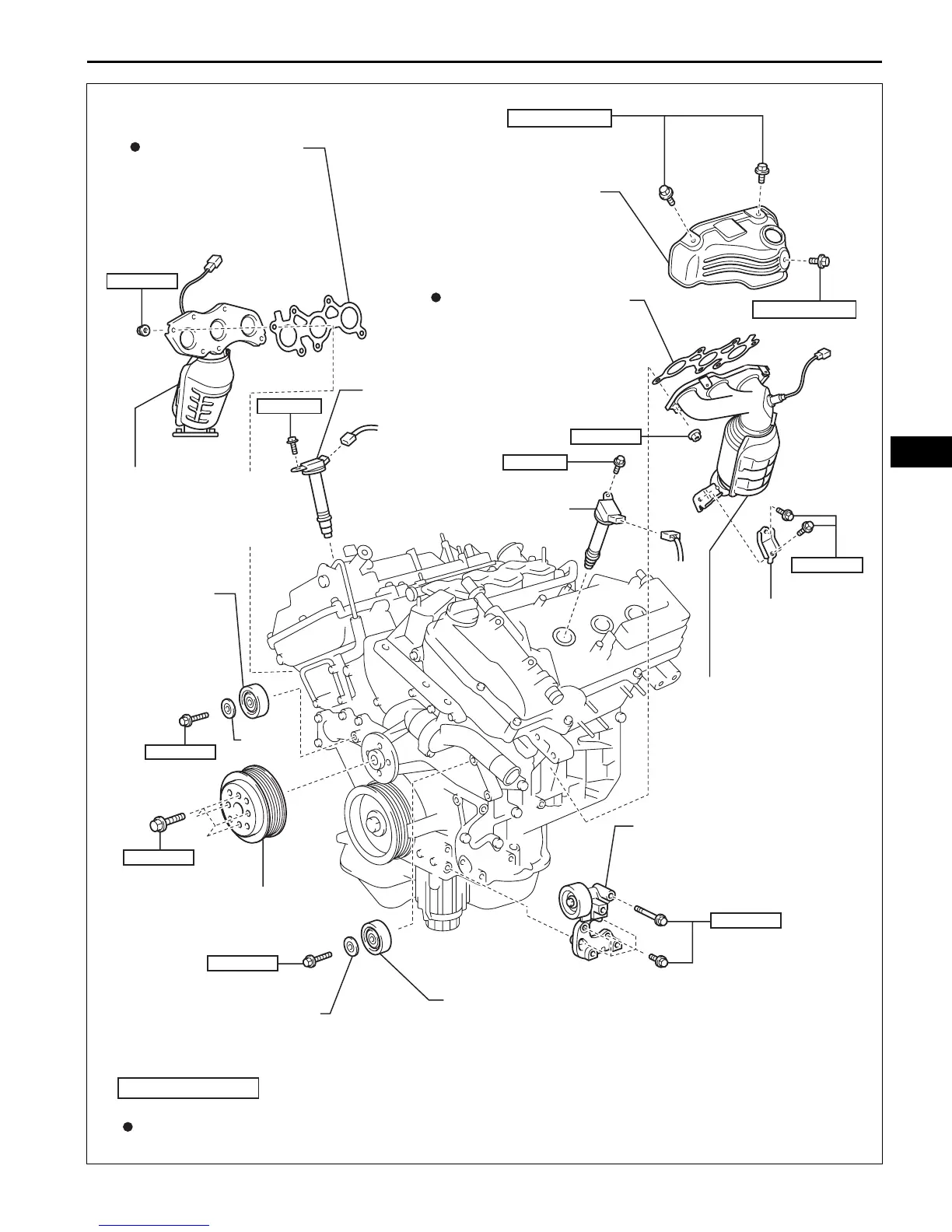

2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM–21
EM
EXHAUST MANIFOLD
SUB-ASSEMBLY LH
EXHAUST MANIFOLD
SUB-ASSEMBLY RH
IGNITION COIL ASSEMBLY
NO. 2 EXHAUST MANIFOLD
HEAT INSULATOR
V-RIBBED BELT TENSIONER
ASSEMBLY
WATER PUMP PULLEY
IGNITION COIL ASSEMBLY
N*m (kgf*cm, ft.*lbf)
: Specified torque
Non-reusable part
8.5 (87, 75 in.*lbf)
8.5 (87, 75 in.*lbf)
21 (214, 15)
21 (214, 15)
43 (438, 32)
43 (438, 32)
43 (438, 32)
21 (214, 15)
10 (102, 7)
10 (102, 7)
34 (347, 25)
EXHAUST MANIFOLD TO
HEAD LH GASKET
EXHAUST MANIFOLD
TO HEAD GASKET
x6
x6
PLATE
PLATE
NO. 2 IDLER
PULLEY SUB-
ASSEMBLY (RR
SIDE)
NO. 2 IDLER PULLEY
SUB-ASSEMBLY (FR SIDE)
NO. 2 MANIFOLD
STAY
A134941E01
