EM–22

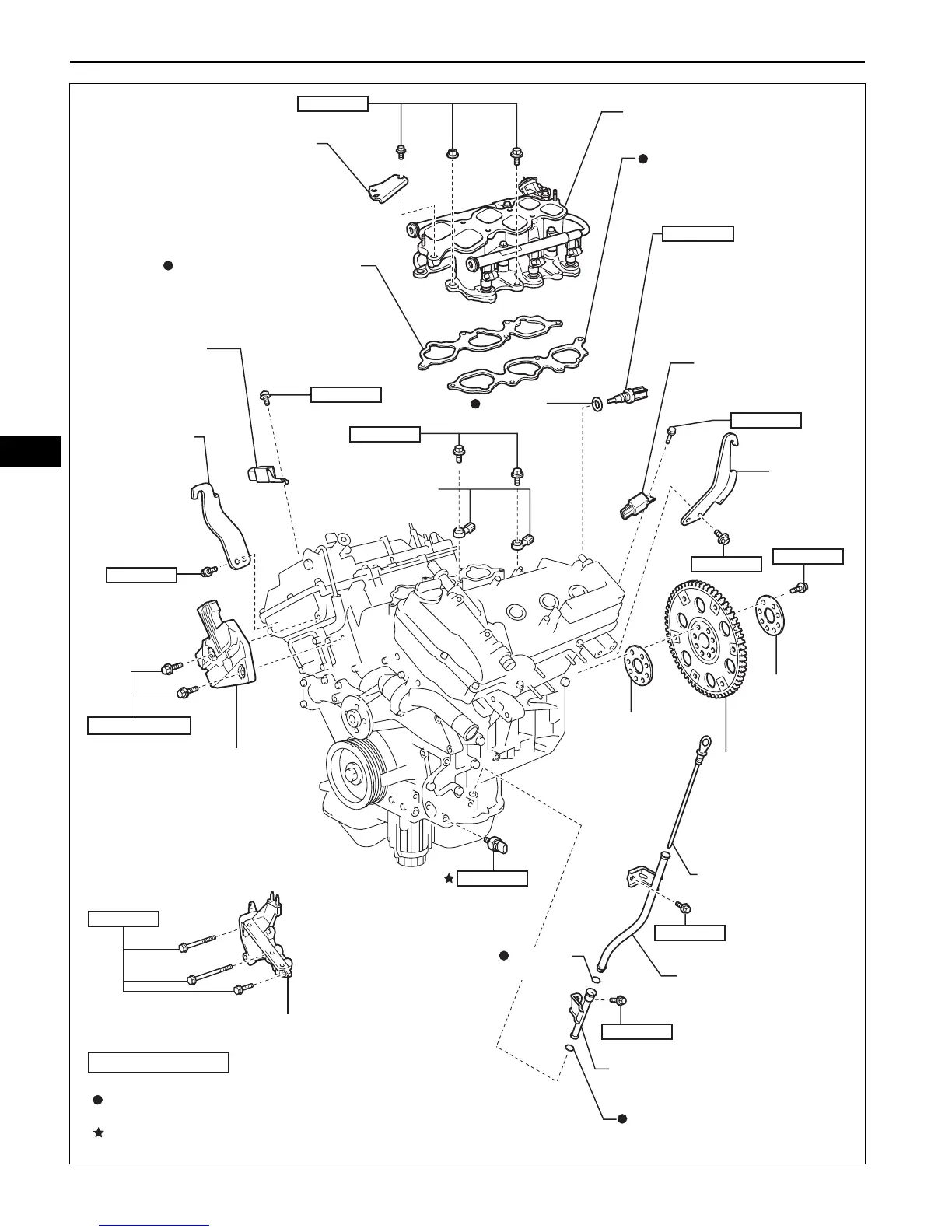

2GR-FE ENGINE MECHANICAL – ENGINE ASSEMBLY
EM
DRIVE PLATE
AND RING GEAR
SUB-ASSEMBLY
ENGINE OIL PRESSURE
SWITCH ASSEMBLY
INTAKE MANIFOLD
NO. 1 ENGINE MOUNTING BRACKET FRONT LH
NO. 2 ENGINE MOUNTING
STAY RH
N*m (kgf*cm, ft.*lbf)
: Specified torque
Non-reusable part
6.0 (61, 53 in.*lbf)
54 (551, 40)
21 (214, 15)
21 (214, 15)
21 (214, 15)
83 (846, 61)
20 (200, 14)
20 (204, 15)
21 (214, 15)
33 (337, 24)
33 (337, 24)
Precoated Part
O-RING
GASKET
NO. 1 OIL LEVEL GAUGE GUIDE
NO. 2 OIL LEVEL
GAUGE GUIDE
OIL LEVEL GAUGE
DRIVE PLATE
SPACER FRONT
DRIVE PLATE
SPACER REAR
NO. 2
ENGINE
HANGER
NO. 1 ENGINE
HANGER
NO. 2 INTAKE MANIFOLD
TO HEAD GASKET
NO. 1 INTAKE MANIFOLD
TO HEAD GASKET
ENGINE COOLANT
TEMPERATURE
SENSOR
KNOCK CONTROL
SENSOR
NO. 2 TIMING GEAR COVER
x3
x2
O-RING
x8
x6
x4
10 (102, 7)
10 (102, 7)
RADIO SETTING
CONDENSER
RADIO SETTING
CONDENSER
A134942E01
