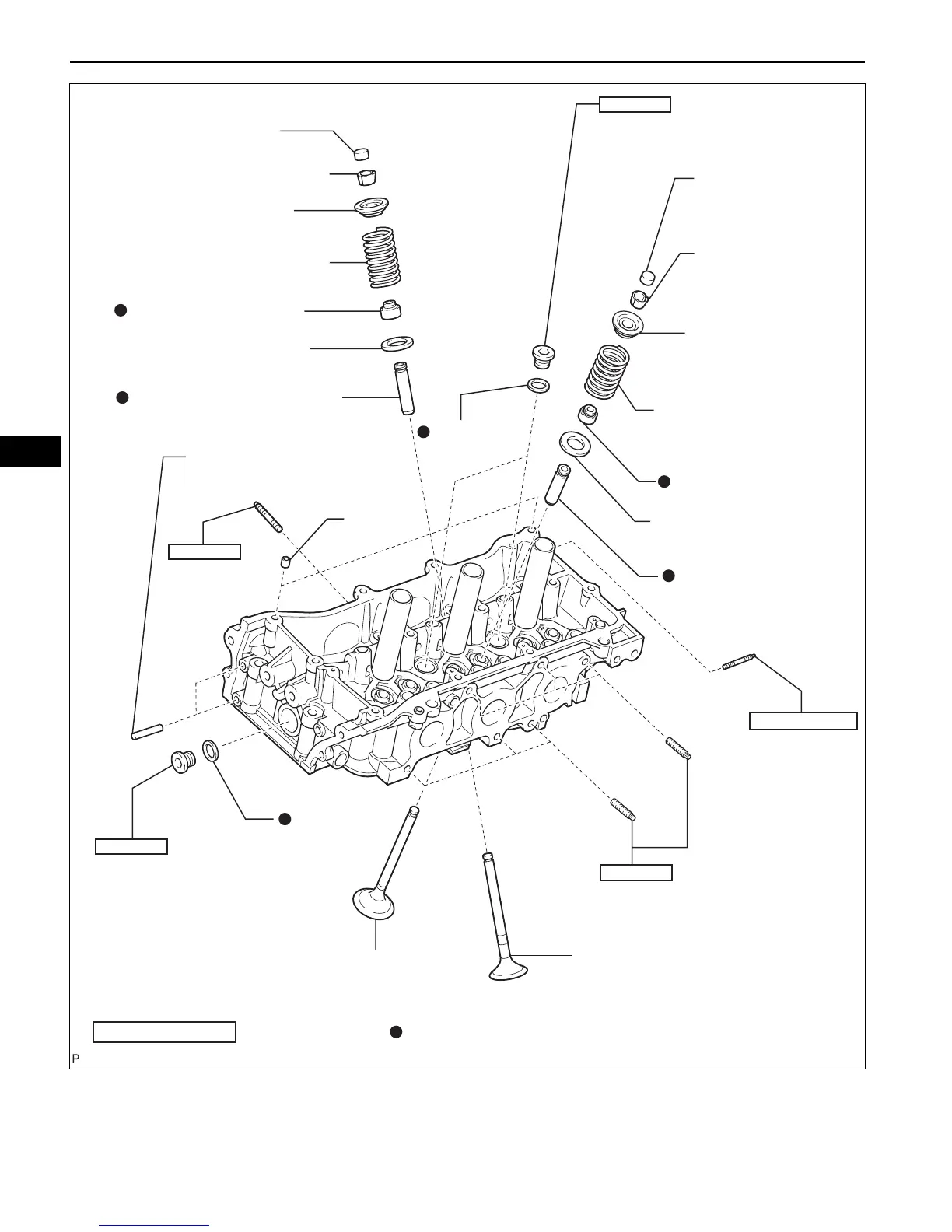

2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM
EXHAUST VALVE
INTAKE VALVE
NO. 1 STRAIGHT SCREW PLUG
NO. 2 STRAIGHT
SCREW PLUG
VALVE STEM OIL SEAL
80 (816, 59)
N*m (kgf*cm, ft.*lbf)
: Specified torque
Non-reusable part
44 (449, 32)
GASKET
VALVE SPRING
RETAINER LOCK
INNER COMPRESSION
SPRING
VALVE SPRING
RETAINER
VALVE SPRING RETAINER LOCK
INNER COMPRESSION SPRING
VALVE SPRING RETAINER
GASKET
VALVE STEM OIL SEAL
EXHAUST VALVE
GUIDE BUSH
INTAKE VALVE GUIDE BUSH
VALVE SPRING SEAT
VALVE STEM CAP
VALVE SPRING SEAT
VALVE STEM CAP
RING PIN
STRAIGHT PIN
STUD BOLT
STUD BOLT
4.0 (41, 35 in.*lbf)
10 (102, 7)
x2
STUD BOLT
10 (102, 7)
A132502E01
