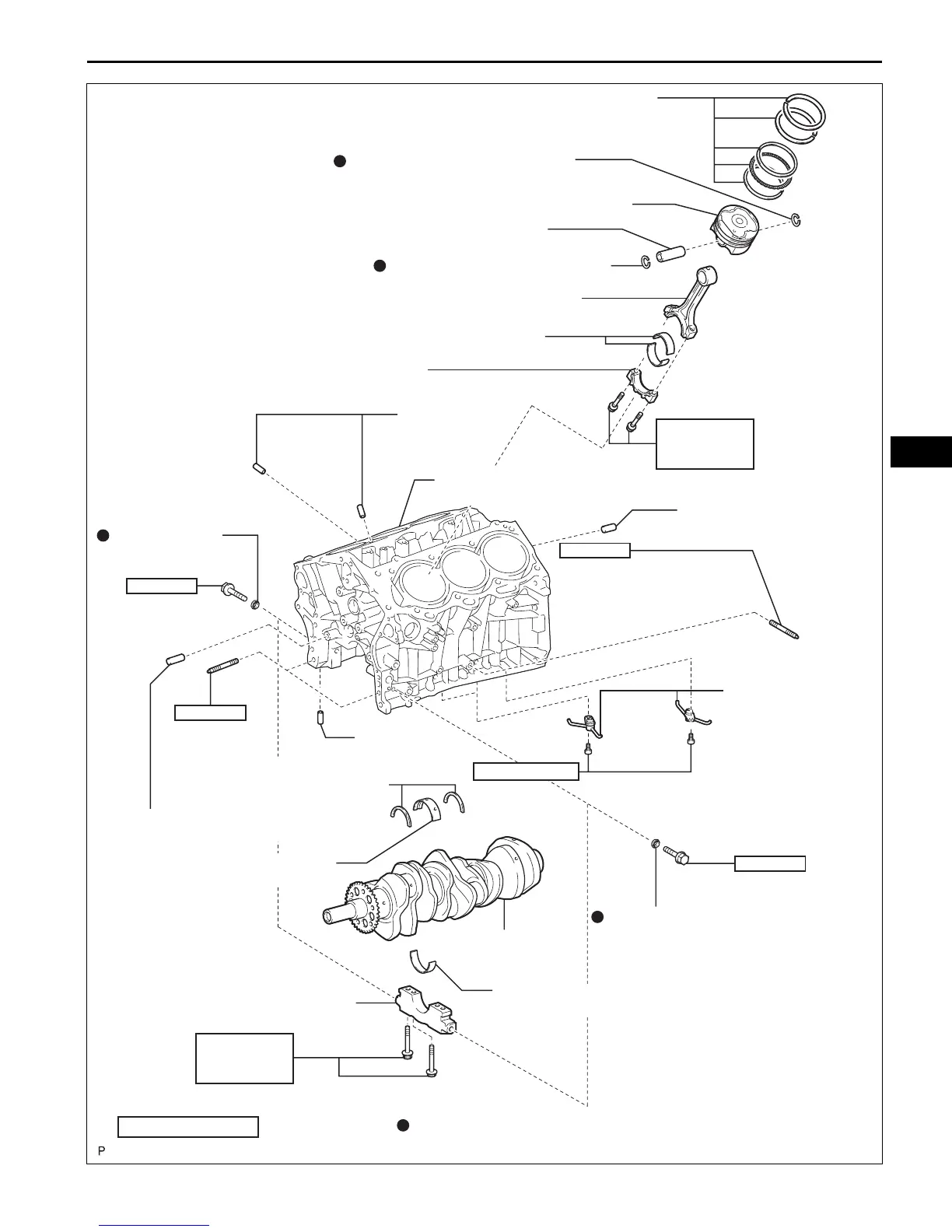

2GR-FE ENGINE MECHANICAL – ENGINE UNIT
EM–63
EM
CRANKSHAFT
NO. 1 OIL NOZZLE
SUB-ASSEMBLY
PISTON RING SET
PISTON
PISTON PIN HOLE SNAP RING
PISTON PIN
PISTON PIN HOLE SNAP RING
CONNECTING ROD BEARING
CONNECTING ROD SUB-ASSEMBLY
CONNECTING ROD CAP
SEAL WASHER
CYLINDER BLOCK SUB-ASSEMBLY
LOWER CRANKSHAFT BEARING
UPPER CRANKSHAFT BEARING
UPPER CRANKSHAFT
THRUST WASHER
CRANKSHAFT BEARING CAP
x8
x8
9.0 (92, 80 in.*lbf)
52 (525, 38)
N*m (kgf*cm, ft.*lbf)
: Specified torque
Non-reusable part
1st: 61 (622, 45)
2nd: Turn 90°
SEAL WASHER
1st: 25 (255, 18)
2nd: Turn 90°
52 (525, 38)
x4
x4
x4
x4
x4
STRAIGHT PIN
STUD BOLT
STRAIGHT PIN
x4
x4
STRAIGHT PIN
x2
x2
10 (102, 7)
STRAIGHT PIN
STUD BOLT
17 (173, 13)
A132503E01
