TP-Link EAP110 User Manual

6
1.2 Build the Network Topology

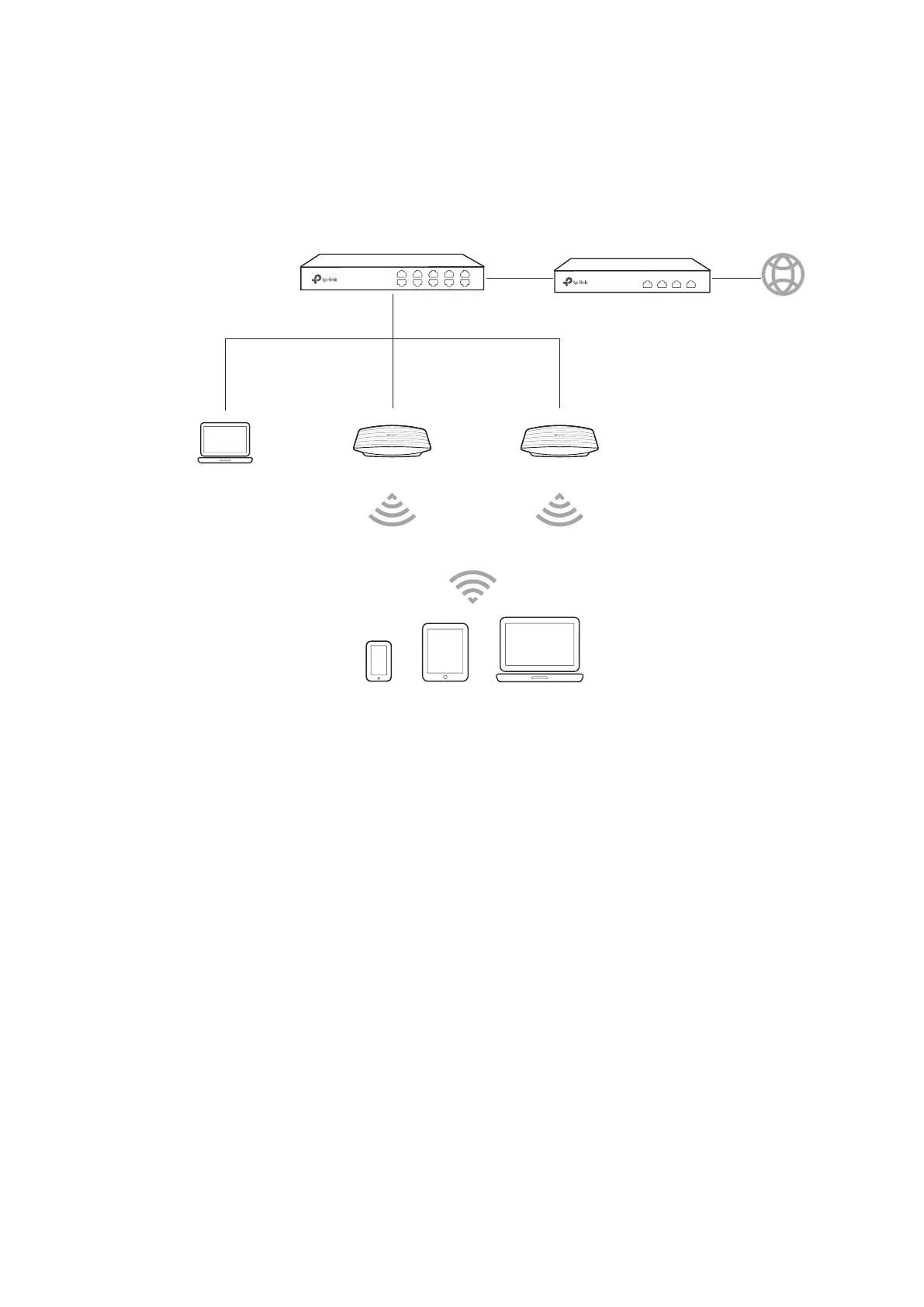

To manage the EAPs in Standalone mode, refer to the following topology.
EAPEAPPC
IP: 192.168.0.100
Switch
Router (DHCP Server)
LAN: 192.168.0.1
Internet
Clients
• The router is the gateway of the network, and devices in the LAN surf the internet via
the router. At the same time, the router acts as a DHCP server to assign dynamic IP
addresses to the EAPs and clients.
• The layer 2 switch is connected to the LAN interface of the router.
• The PC and the EAPs are all connected to the layer 2 switch. Since the PC and the EAPs
are in the same network segment, the PC can log in to the web pages of the EAPs and
manage them.
1.3 Log in to the EAP
There are two methods to log in to the EAP. You can choose one as you like: Log in via the
Domain Name
and Log in via the IP Address of the EAP .
Note:
EAP320 and EAP330 are not currently available for login via domain name.

TP-Link EAP110 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	No
Certification	CE, FCC, RoHS
Product color	White
Cable lock slot type	Kensington
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows 8, 7, Vista, XP
Input current	1 A
AC input voltage	24 V
Power consumption (typical)	7.7 W
Antenna features	Integrated antenna
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna gain level (max)	3 dBi

Weight and Dimensions

Width	180 mm
Height	47.5 mm
