TP-Link EAP110 User Manual

67

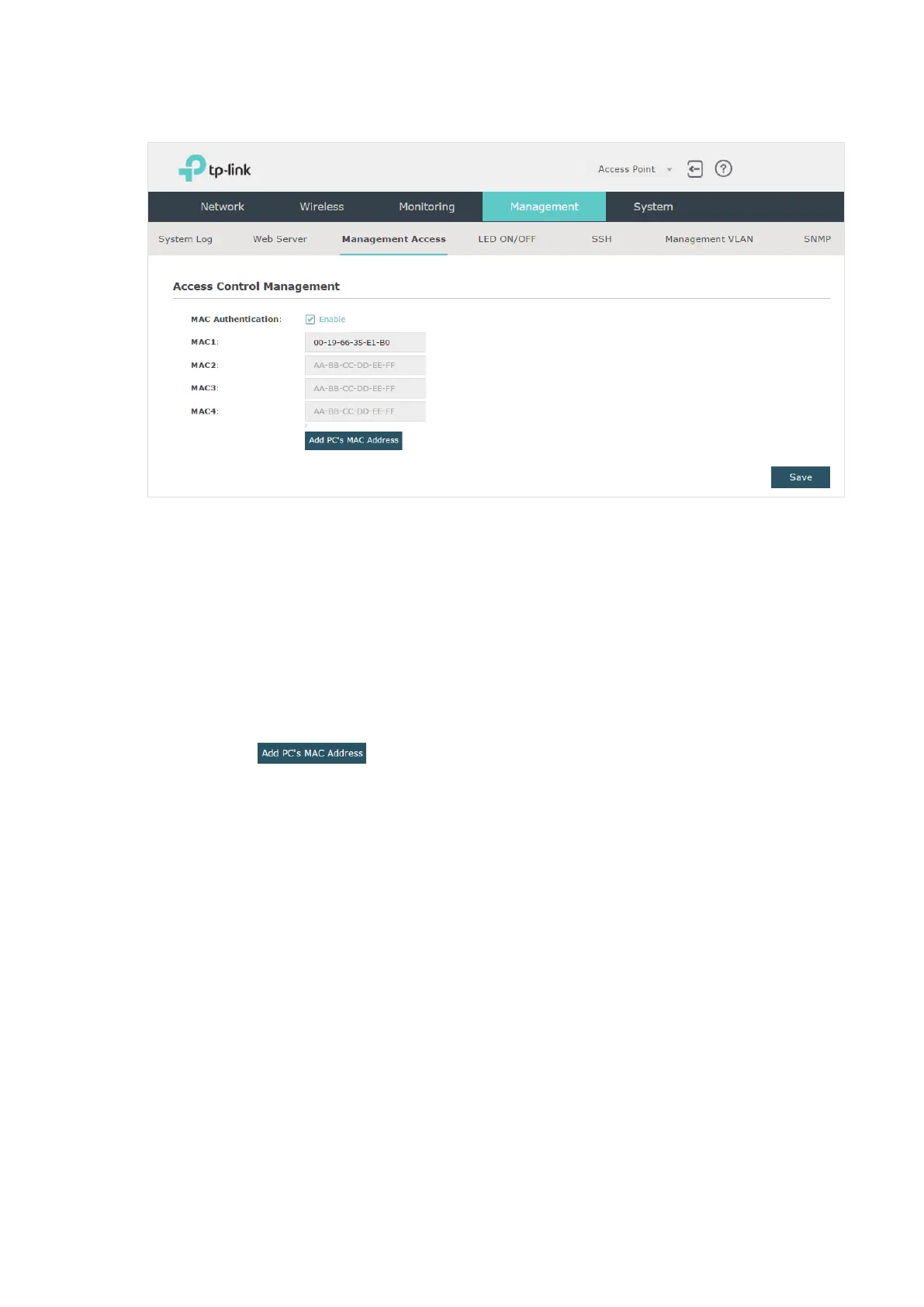

To configure Management Access, go to the Management > Management Access page.
Follow the steps below to configure Management Access on this page:
1. Check the box to enable MAC Authentication.
2. Specify one or more MAC addresses in the MAC1/MAC2/MAC3/MAC4 fields. Up to
four MAC addresses can be added.
3. Click Save.
Tips:
·
You can click
to quickly add the MAC address of your current logged-in host, .
·
Verify the MAC addresses carefully. Once the settings are saved, only the hosts in the MAC
address list can access the web page of the EAP.
·
If you cannot log in to the web page after saving the wrong configuration, you can reset the EAP
to the factory defaults and use the default username and password (both admin) to log in.
4.4 Configure Trunk (For EAP330)
The trunk function can bundle multiple Ethernet links into a logical link to increase
bandwidth and improve network reliability. The EAP330 has two 1000Mbps Ethernet ports.
If the Trunk function is enabled and the ports are in the speed of 1000Mbps Full Duplex,
the whole bandwidth of the trunk link is up to 4Gbps (2000Mbps * 2).
Note:
The trunk feature here refers to static trunk. Make sure that the trunk mode of the peer is static.

TP-Link EAP110 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	No
Certification	CE, FCC, RoHS
Product color	White
Cable lock slot type	Kensington
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows 8, 7, Vista, XP
Input current	1 A
AC input voltage	24 V
Power consumption (typical)	7.7 W
Antenna features	Integrated antenna
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna gain level (max)	3 dBi

Weight and Dimensions

Width	180 mm
Height	47.5 mm
