TP-Link EAP110 User Manual

10

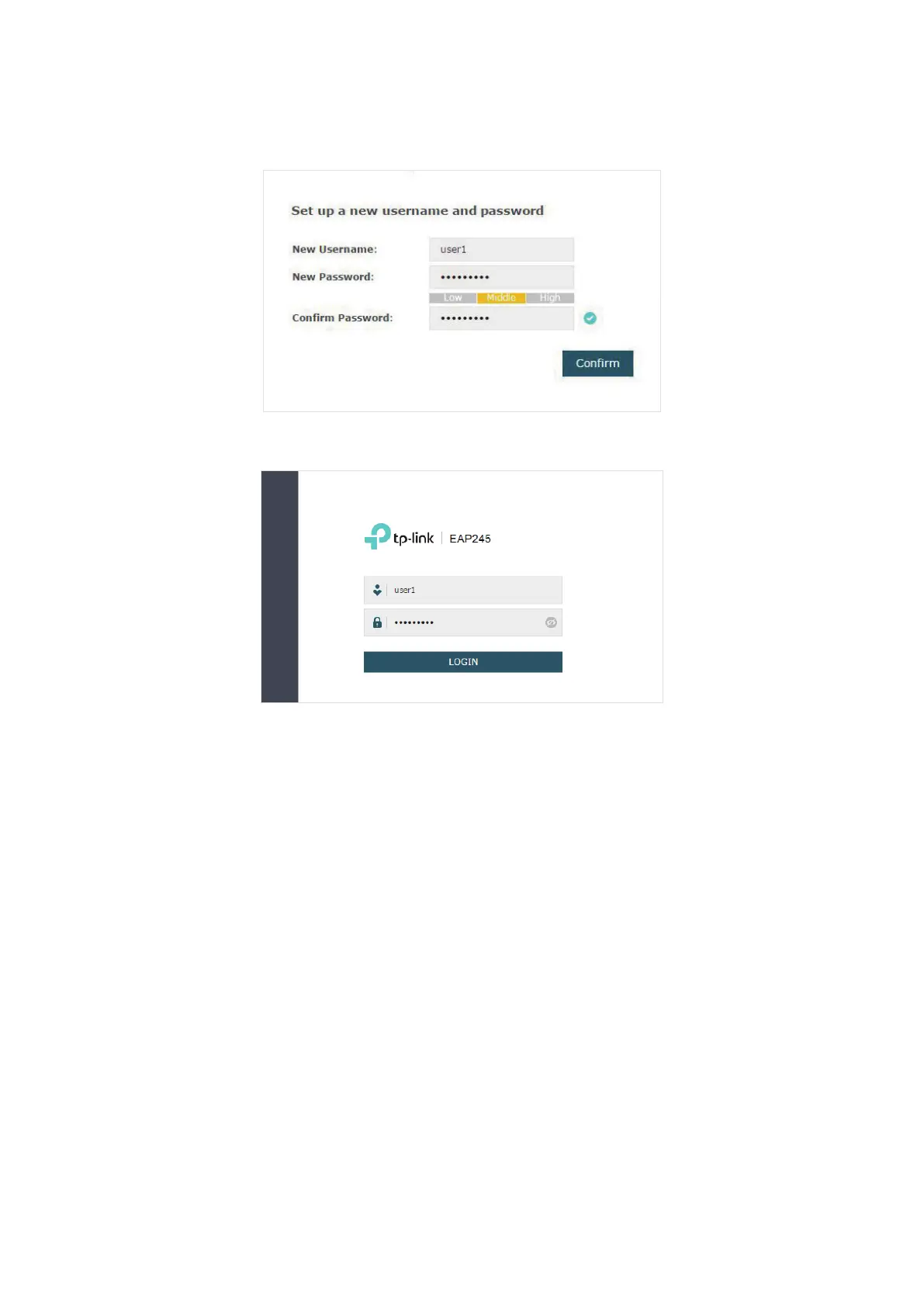

3. In the pop-up window, configure a new username and a new password for your user
account.
4. Use the new username and password to log in.
Tips:
To facilitate access to the EAP via a wired device, you can set a static IP address for the EAP and
remember it well or write it down. But make sure that this IP address is not being used in the same
LAN. For detailed instructions about how to set a static IP address for the EAP, refer to Configure
the IP Address of the EAP .
1.4 Edit the SSID
By default, the dual-band EAP has two default SSIDs named TP-LINK_2.4GHz_XXXXXX
and TP-LINK_5GHz_XXXXXX on the 2.4GHz band and 5GHz band, and the single-band
EAP has a default SSID named TP-LINK_2.4GHz_XXXXXX on the 2.4GHz band.
The default SSID has no password, so anyone can access the network without
authentication. If your network is a private network, for security, we recommend that you
change the SSID configuration immediately after login.
Follow the steps below to edit the default SSID:

TP-Link EAP110 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	No
Certification	CE, FCC, RoHS
Product color	White
Cable lock slot type	Kensington
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows 8, 7, Vista, XP
Input current	1 A
AC input voltage	24 V
Power consumption (typical)	7.7 W
Antenna features	Integrated antenna
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna gain level (max)	3 dBi

Weight and Dimensions

Width	180 mm
Height	47.5 mm
