TP-Link EAP110 User Manual

75

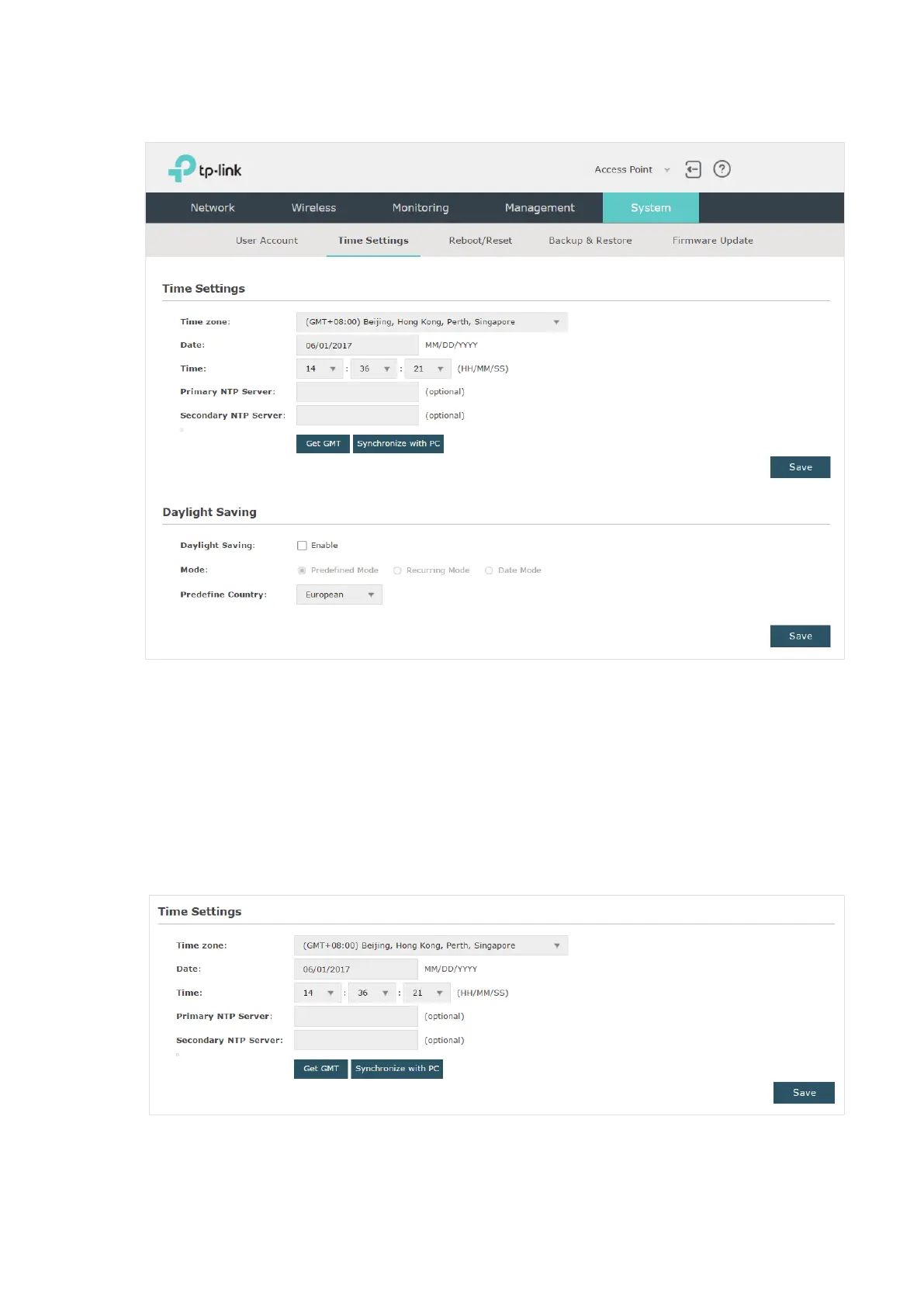

To configure the system time, go to the System > Time Settings page.
The following two sections introduce how to configure the basic system time settings and
the Daylight Saving Time feature.
Configure the System Time
In the Time Settings section, you can configure the system time. There are three methods
to set the system time:
Set the System Time Manually , Acquire the System Time From an
NTP Server
, and Synchronize the System Time with PC’s Clock .
Determine the way of setting the system time and follow the steps below to complete the
configurations:

TP-Link EAP110 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	No
Certification	CE, FCC, RoHS
Product color	White
Cable lock slot type	Kensington
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows 8, 7, Vista, XP
Input current	1 A
AC input voltage	24 V
Power consumption (typical)	7.7 W
Antenna features	Integrated antenna
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna gain level (max)	3 dBi

Weight and Dimensions

Width	180 mm
Height	47.5 mm
