TP-Link EAP110 User Manual

62
4.1 Manage System Logs
System logs record information about hardware, software as well as system issues and
monitors system events. With the help of system log, you can get informed of system
running status and detect the reasons for failure.

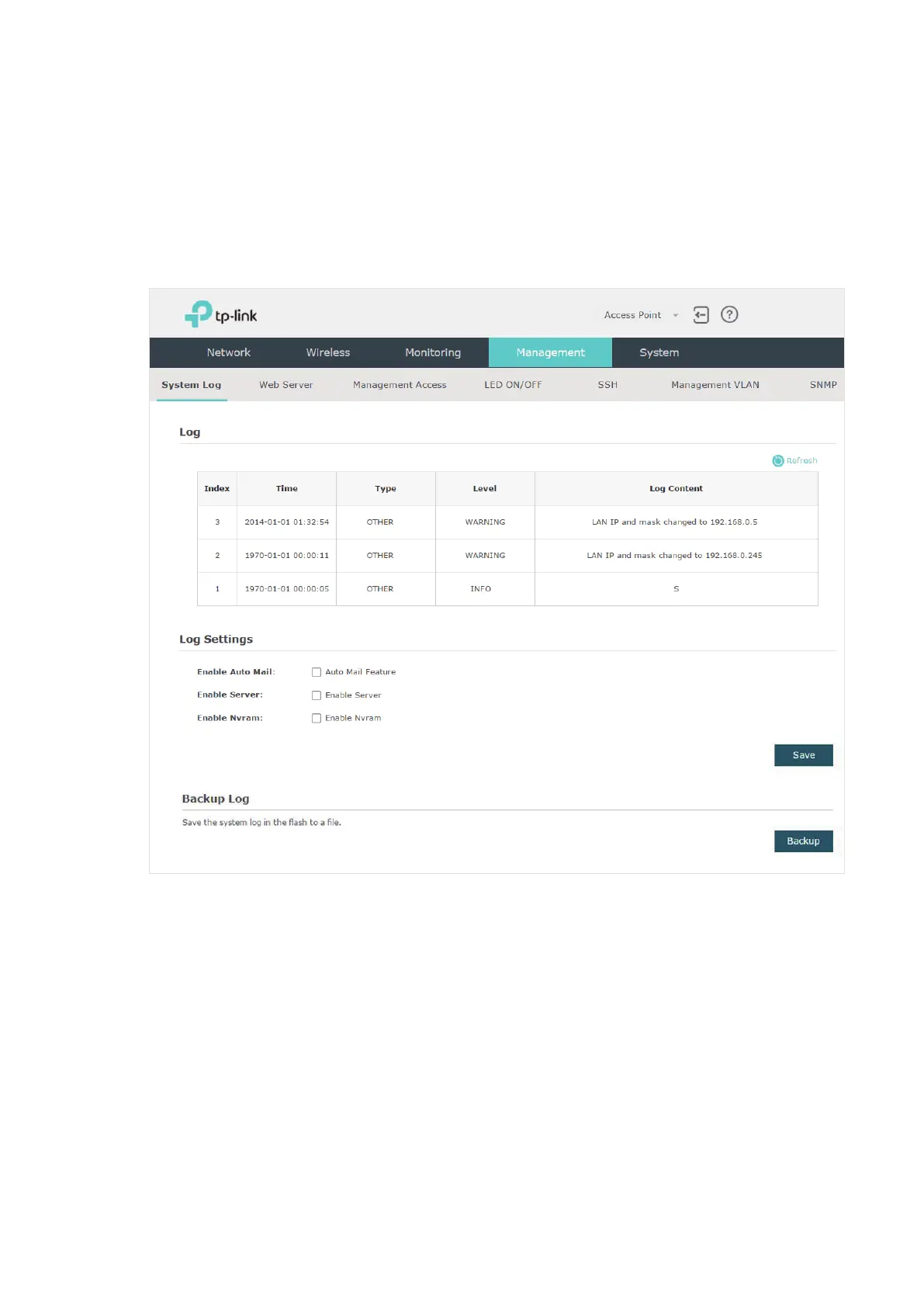

To manage system logs, go to the Management > System Log page.
On this page, you can view the system logs and configure the way of receiving system
logs. For EAP320/EAP330/EAP225, you can also backup the system logs to your local
host.

TP-Link EAP110 Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	No
Certification	CE, FCC, RoHS
Product color	White
Cable lock slot type	Kensington
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Compatible operating systems	Microsoft Windows 8, 7, Vista, XP
Input current	1 A
AC input voltage	24 V
Power consumption (typical)	7.7 W
Antenna features	Integrated antenna
Antennas quantity	2
Antenna direction type	Omni-directional
Antenna gain level (max)	3 dBi

Weight and Dimensions

Width	180 mm
Height	47.5 mm
