TP-Link TD-W8980 User Manual

TD-W8980 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
6

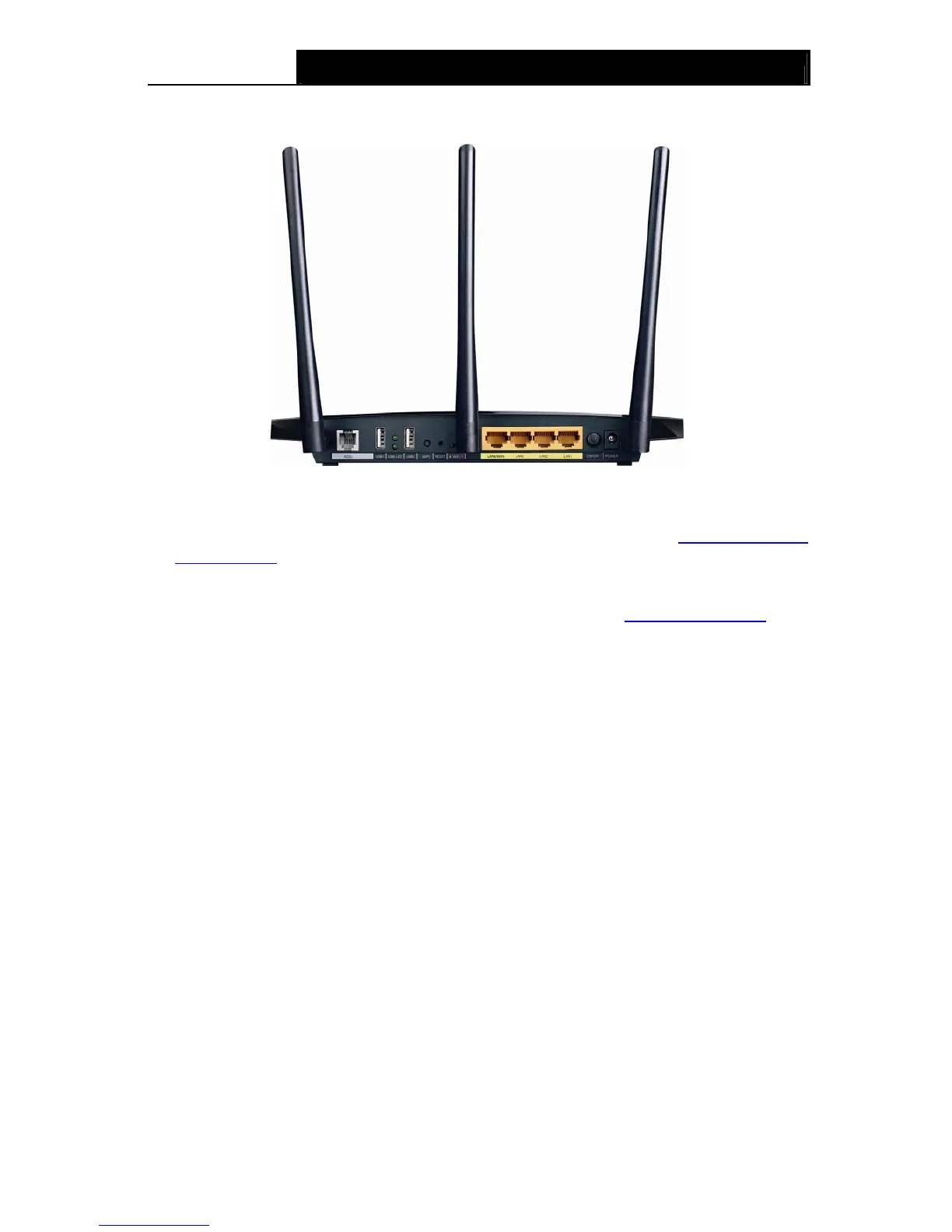

1.3.2 The Back Panel
Figure 1-2
¾ ADSL: Through the port, you can connect the modem router with the telephone. Or you can
connect them by an external separate splitter. For details, please refer to 2.3 Connecting the
Modem Router
.
¾ USB1, USB2: The USB port connects to a USB storage device or a USB printer.
¾ WPS: The switch for the WPS function. For details, please refer to 4.8.2 WPS Settings.
¾ RESET: There are two ways to reset the modem router's factory defaults.
Method one: With the modem router powered on, use a pin to press and hold the Reset
button for at least 5 seconds. And the Router will reboot to its factory default settings.
Method two: Restore the default setting from “Maintenance-SysRestart” of the modem
router's Web-based Utility.
¾ WiFi: The switch for the WiFi function. Move it to left /right to enable/disable the WiFi function.
¾ LAN4/WAN, LAN3, LAN2, LAN1: Through these ports, you can connect the modem router to
your PC or the other Ethernet network devices. Enable EWAN function and you will be able to
connect to Cable/FTTH/VDSL/ADSL device.
¾ ON/OFF: The switch for the power.
¾ POWER: The Power plug is where you will connect the power adapter.
¾ Antennas: Used for wireless operation and data transmit.

TP-Link TD-W8980 Specifications

General

VPN support	PPTP, L2TP
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1.5 A
Rack mounting	No
Frequency band	2.4 & 5 GHz
USB ports quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Supported network protocols	ATM/PPP
Antennas quantity	5
Antenna connector type	RP-SMA
Security algorithms	128-bit AES, 128-bit WEP, 256-bit AES, 3DES, 64-bit WEP, DES, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	MD5, SHA-1
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Output voltage	12 V

Weight and Dimensions

Depth	160.6 mm
Width	243 mm
Height	32.5 mm
Weight	- g
