TD-W8980 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
62
4.9.5 Wireless Advanced
Choose menu “Wireless 5GHz”Æ”Wireless Advanced”, you can configure the advanced settings
of your wireless network.

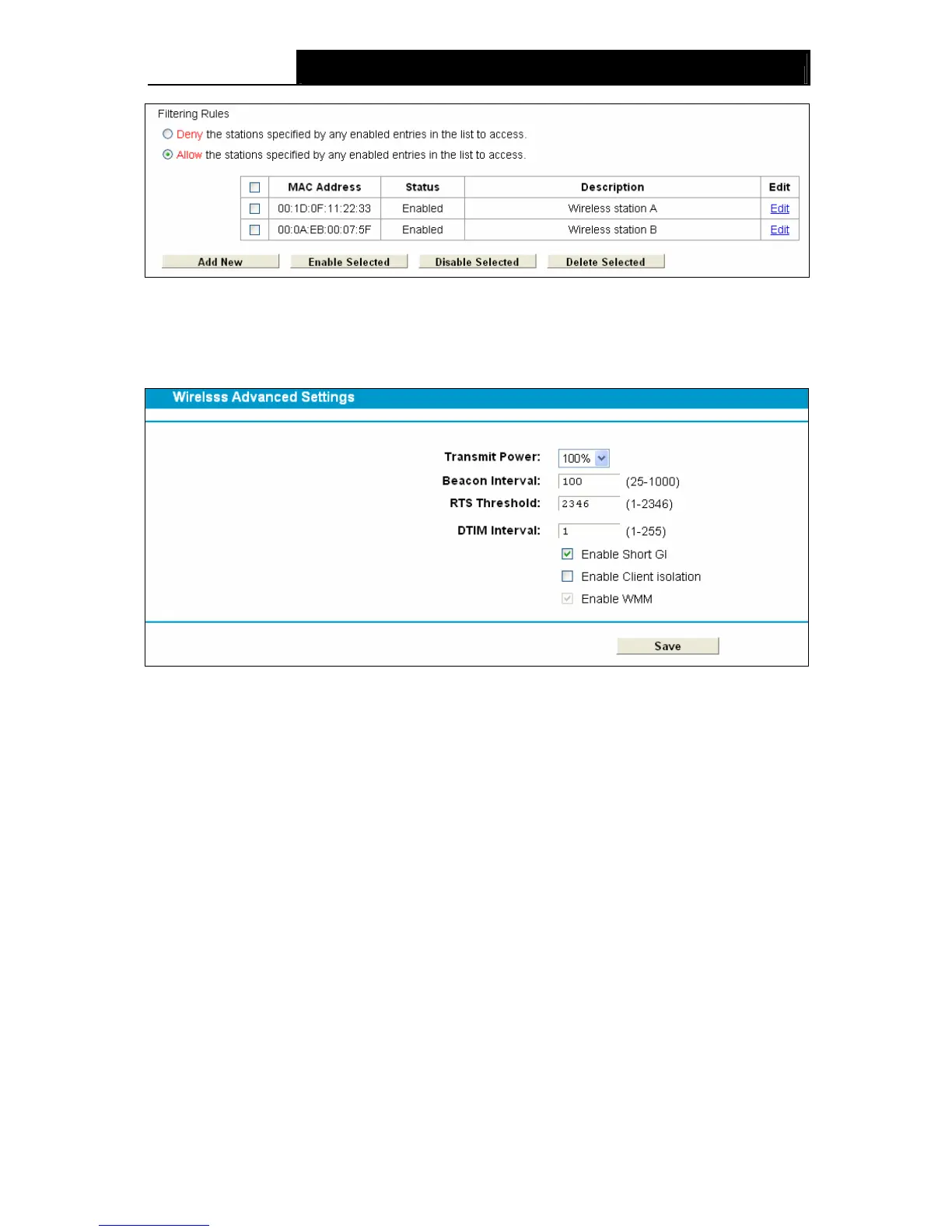

Figure 4-47
¾ Transmit Power: Here you can specify the transmit power of modem router. You can select
High, Middle or Low which you would like. High is the default setting and is recommended.
¾ Beacon Interval: Enter a value between 25-1000 milliseconds for Beacon Interval here. The
beacons are the packets sent by the modem router to synchronize a wireless network.
Beacon Interval value determines the time interval of the beacons. The default value is 100.
¾ RTS Threshold: Here you can specify the RTS (Request to Send) Threshold. If the packet is
larger than the specified RTS Threshold size, the modem router will send RTS frames to a
particular receiving station and negotiate the sending of a data frame. The default value is
2346.
¾ DTIM Interval: This value determines the interval of the Delivery Traffic Indication Message
(DTIM). A DTIM field is a countdown field informing clients of the next window for listening to
broadcast and multicast messages. When the modem router has buffered broadcast or
multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value.
You can specify the value between 1-255 Beacon Intervals. The default value is 1, which
indicates the DTIM Interval is the same as Beacon Interval.
¾ Enable Short GI: This function is recommended for it will increase the data capacity by
reducing the guard interval time.
¾ Enabled Client isolation: This function can isolate wireless stations on your network from

TP-Link TD-W8980 Specifications

General

VPN support	PPTP, L2TP
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1.5 A
Rack mounting	No
Frequency band	2.4 & 5 GHz
USB ports quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Supported network protocols	ATM/PPP
Antennas quantity	5
Antenna connector type	RP-SMA
Security algorithms	128-bit AES, 128-bit WEP, 256-bit AES, 3DES, 64-bit WEP, DES, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	MD5, SHA-1
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Output voltage	12 V

Weight and Dimensions

Depth	160.6 mm
Width	243 mm
Height	32.5 mm
Weight	- g
