TD-W8980 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
67

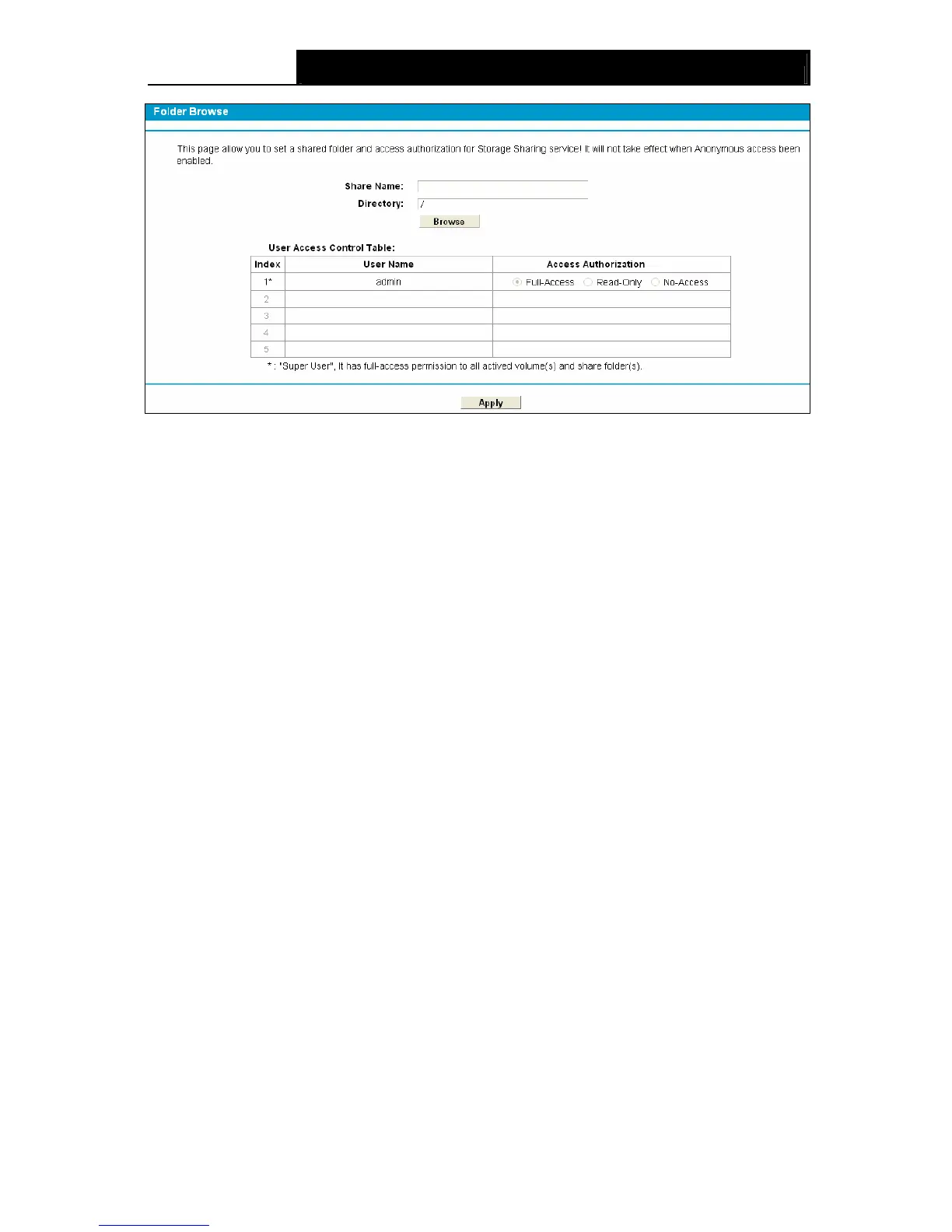

Figure 4-52
2. Click the Browse button, and then select the Select Volume from the drop-down list.
3. Enter display name of the share folder in Share Name filed.
4. Click the Apply button to apply the settings.
You can click the upper button to go to the upper folder
Click the Enable/Disable Selected button to enable or disable the selected entries.
Click the Delete Selected button to delete the selected entries.
)
Note:
1. The max share folders number is 10. If you want to share a new folder when the number has
reached 10, you can delete an existing share folder and then add a new one.
2. If you want to change the Storage Sharing settings, you can click the Apply button to make
the changes take effect.
4.10.4 FTP Server
Choose menu “USB SettingsFTP Server”, you can create an FTP server that can be
accessed from the Internet or your local network.
