TD-W8980 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
80
4.14 IPv4 Firewall
There are four submenus under the Firewall menu: Rule, LAN Host, WAN Host and Schedule.
Click any of them, and you will be able to configure the corresponding function.
4.14.1 Rule

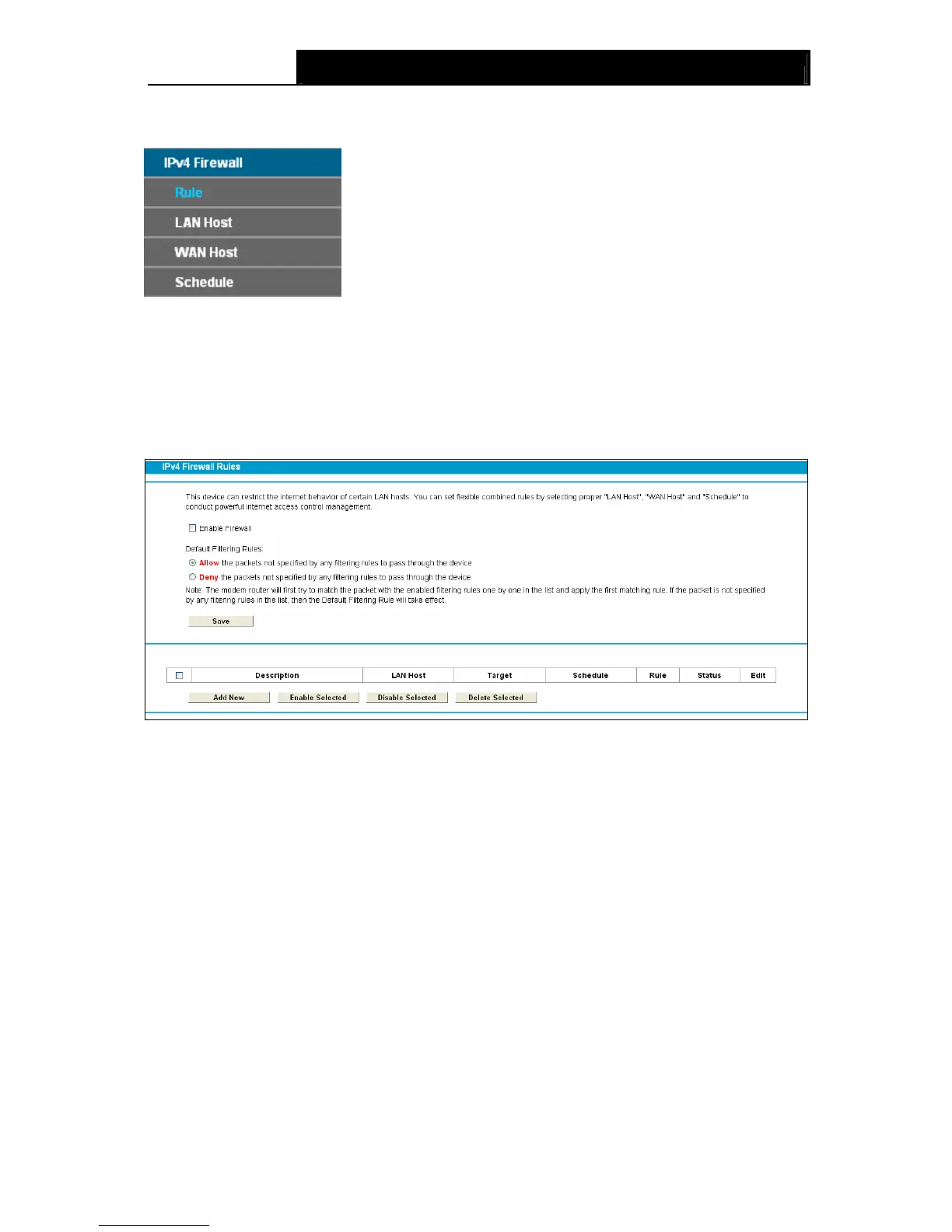

Choose menu “Firewall” → “Rule”, and then you can view and set Access Control rules in the
screen as shown in Figure 4-71.
Figure 4-71
¾ Enable Firewall: Select the check box to enable the Firewalll function, so the Default Filtering
Rules can take effect.
¾ Description: Here displays the description of the rule and this name is unique.
¾ LAN Host: Here displays the host selected in the corresponding rule.
¾ Target: Here displays the target selected in the corresponding rule.
¾ Schedule: Here displays the schedule selected in the corresponding rule.
¾ Status: Here displays the status of the rule, enabled or not.
¾ Edit: Here you can edit or delete an existing rule.
¾ Add New: Click the Add New button to add a new rule entry.
¾ Enable Selected: Click the Enable Selected button to enable the selected rules in the list.
¾ Disable Selected: Click the Disable Selected button to disable the selected rules in the list.
¾ Delete Selected: Click the Delete Selected button to delete the selected entries in the table.
