TD-W8980 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
43
4.6.4 Conditional Pool

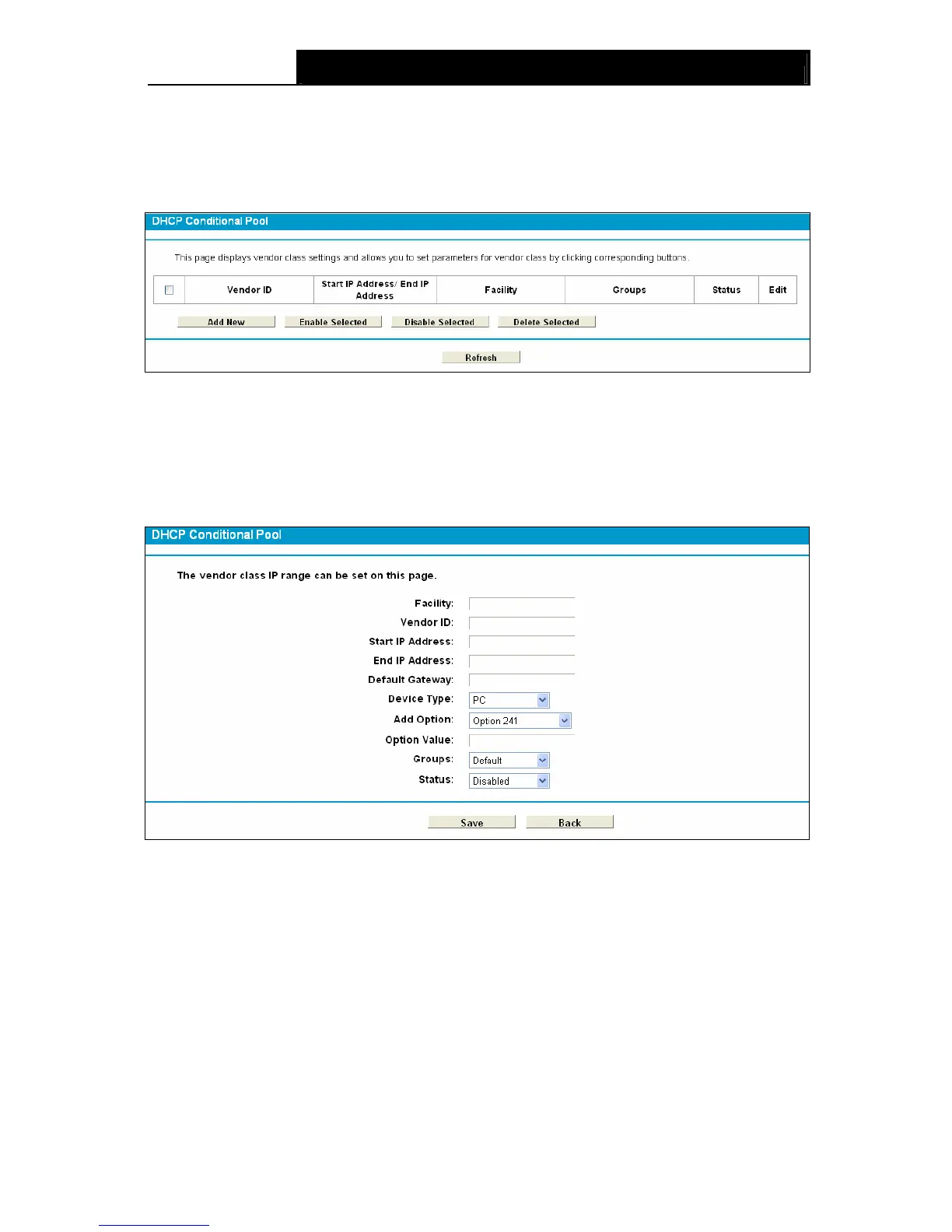

Choose menu “DHCP Server”Æ“Conditional Pool”, you can see the next screen (shown in
Figure 4-28). This page displays vendor class settings and allows you to set parameters for
vendor class by clicking corresponding buttons.
Figure 4-28
To add a vendor class:
1. Click the Add New button. Then Figure 4-29 will pop up.
2.
Enter parameters for the vendor class.
Click the Save button.
Figure 4-29
To modify or delete an existing entry:
4. Click the Edit in the entry you want to modify. If you want to delete the entry, click the Delete.
5. Modify the information.
6. Click the Save button.
Click the Enable/Disable Selected button to make selected entries enabled/disabled.
Click the Delete Selected button to selected entries.
