TP-Link TD-W8980 User Manual

TD-W8980 N600 Wireless Dual Band Gigabit ADSL2+ Modem Router User Guide
74

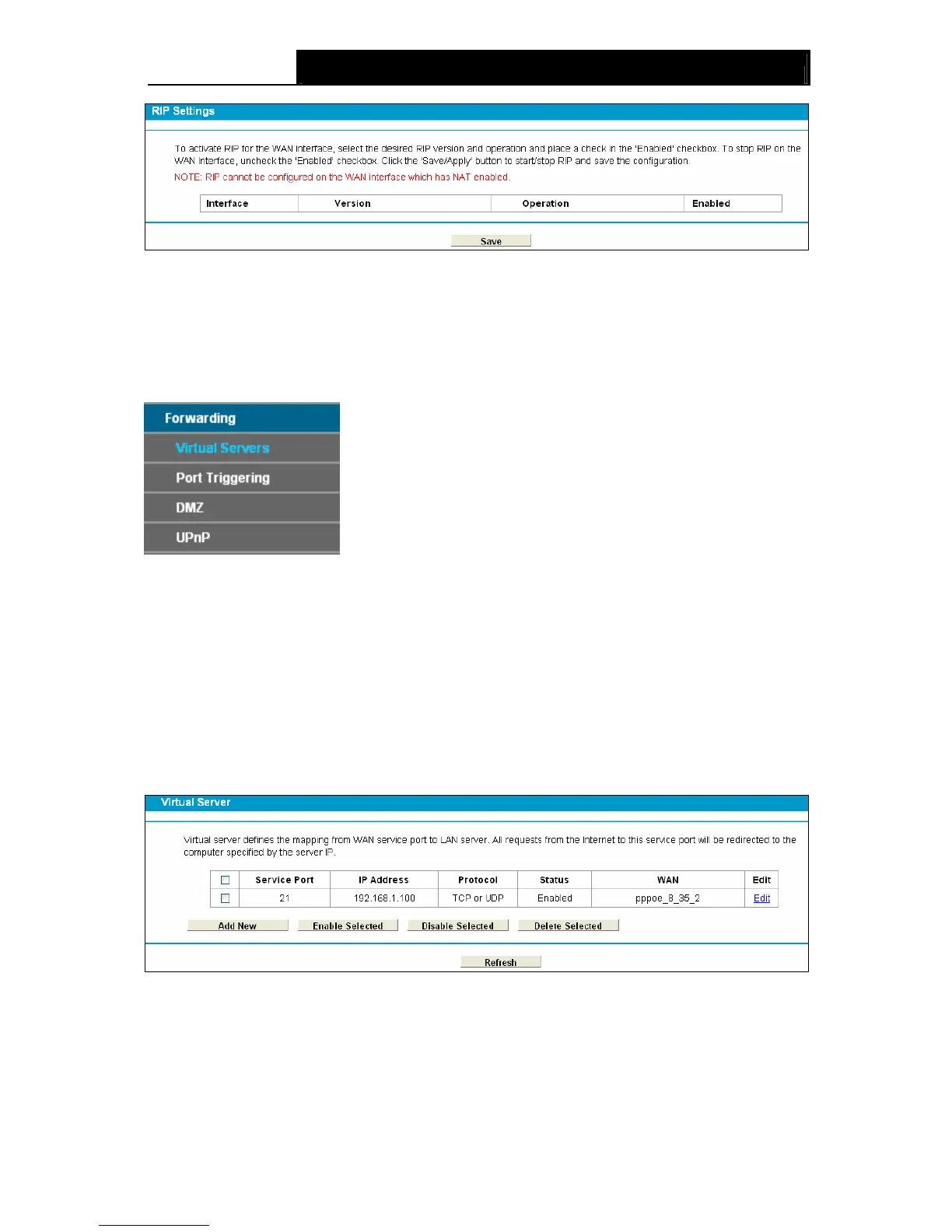

Figure 4-63
)
Note:
RIP cannot be configured on the WAN Interface which has NAT enabled (such as PPPoE).
4.12 Forwarding
There are four submenus under the Forwarding menu: Virtual Servers, Port Triggering, DMZ
and UPnP. Click any of them, and you will be able to configure the corresponding function.
4.12.1 Virtual Servers
Choose menu “Forwarding” → “Virtual Servers”, and then you can view and add virtual servers
in the next screen (shown in Figure 4-64). Virtual servers can be used for setting up public
services on your LAN. A virtual serve
r is defined as a service port, and all requests from Internet
to this service port will be redirected to the computer specified by the server IP. Any PC that was
used for a virtual server must have a static or reserved IP address because its IP address may
change when using the DHCP function.
Figure 4-64
¾ Service Port: The numbers of External Service Ports. You can enter a service port or a
range of service ports (the format is XXX – YYY; XXX is the Start port and YYY is the End
port).
¾ IP Address: The IP address of the PC running the service application.

TP-Link TD-W8980 Specifications

General

VPN support	PPTP, L2TP
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1.5 A
Rack mounting	No
Frequency band	2.4 & 5 GHz
USB ports quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Supported network protocols	ATM/PPP
Antennas quantity	5
Antenna connector type	RP-SMA
Security algorithms	128-bit AES, 128-bit WEP, 256-bit AES, 3DES, 64-bit WEP, DES, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	MD5, SHA-1
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Output voltage	12 V

Weight and Dimensions

Depth	160.6 mm
Width	243 mm
Height	32.5 mm
Weight	- g
