 Set Priority: The priority of the rule. It can be p0(highest), p1, p2, p3(lowest). The traffic
matches the rule will be assigned the priority you have configured.

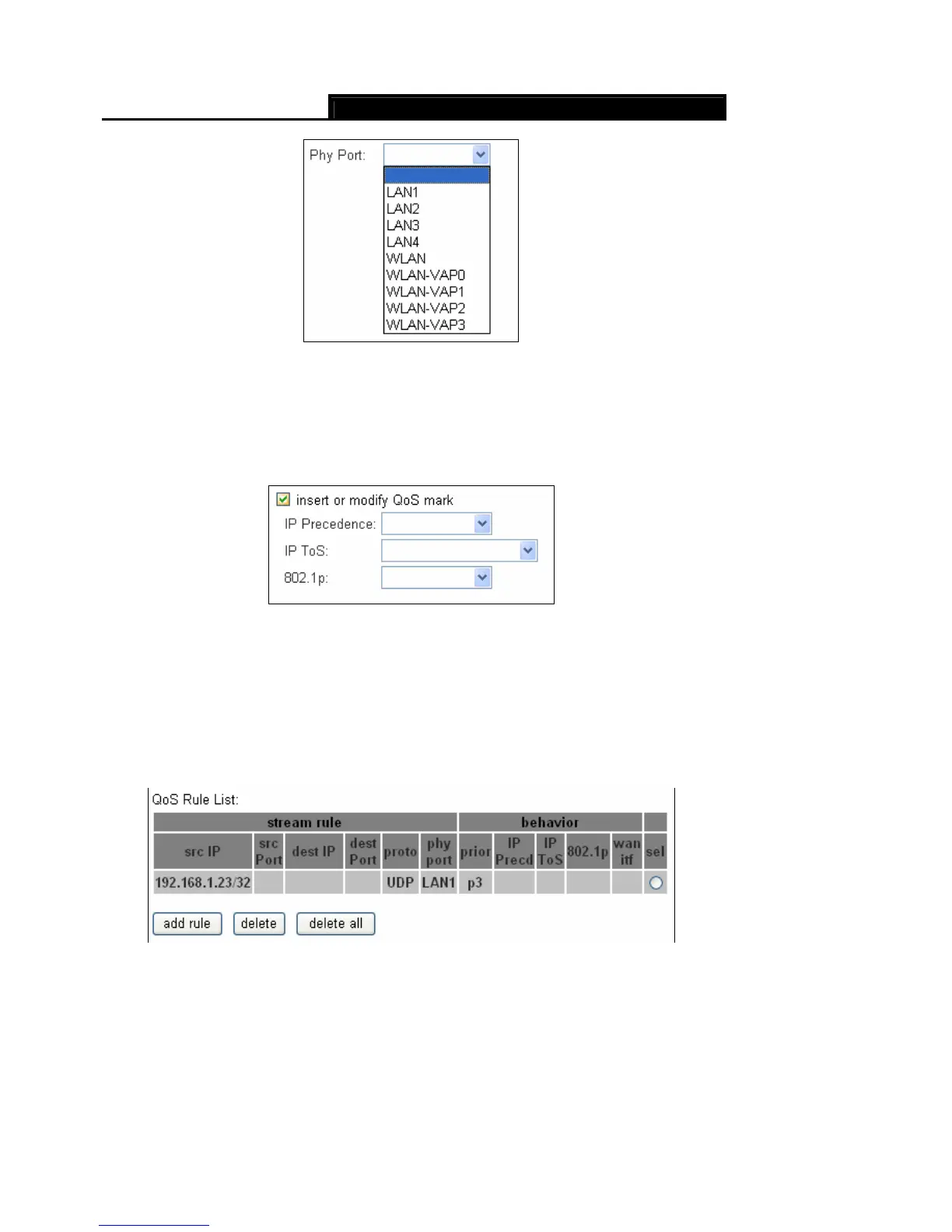

 Insert or modify QoS mark: You can insert or modify the DSCP or 802.1p tag. The traffic
matches the rule will be added or modified the mark.

Note:
If you select 802.1p tag, please make sure 802.1q is enabled in specified WAN interface;
otherwise 802.1p tag will not be tagged.
 Add rule: After filling the parameters, click this button to add a new rule.
 QoS Rule List: Shows the current rules on the device.
 Delete: Select a rule then press “delete” button, the selected rule will be deleted from Qos
rule list.
 Delete all: Delete all the rules from QoS rule list.
