29

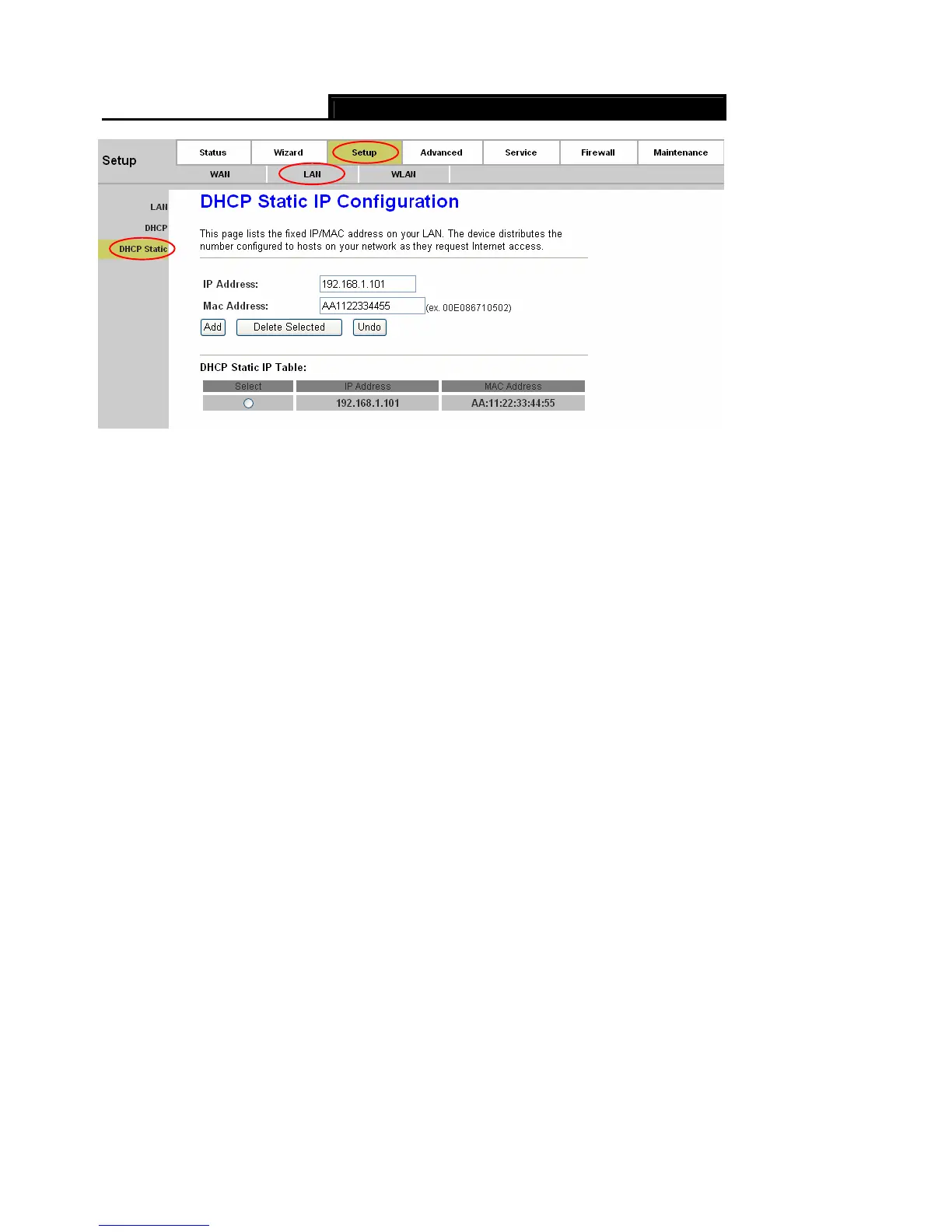

Figure 4-13
IP Address: Enter the IP address desired to be assign to the client.
Mac Address: Enter the MAC address of the client.
After configuration, click Apply Changes button to save your changes.
Note:
After saving your configuration, you need to click the Save button on the left panel to make your
configuration take effect.
4.2.3 WLAN
There are seven submenus under the WLAN menu, Basic, MSSID, Security, Access Control,
Advanced, QSS, and WDS. Click any of them, and you will be able to configure the corresponding
function.
4.2.3.1 Basic
Choose “Setup→WLAN→Basic” menu, and you will see the Wireless Basic Settings screen
(shown in Figure 4-14). Please configure the parameters for wireless according to the descriptions
below.
