TP-Link TD854W

Error! AutoText entry not defined. Error! AutoText entry not defined. User Guide
44
4.2.3.7 WDS

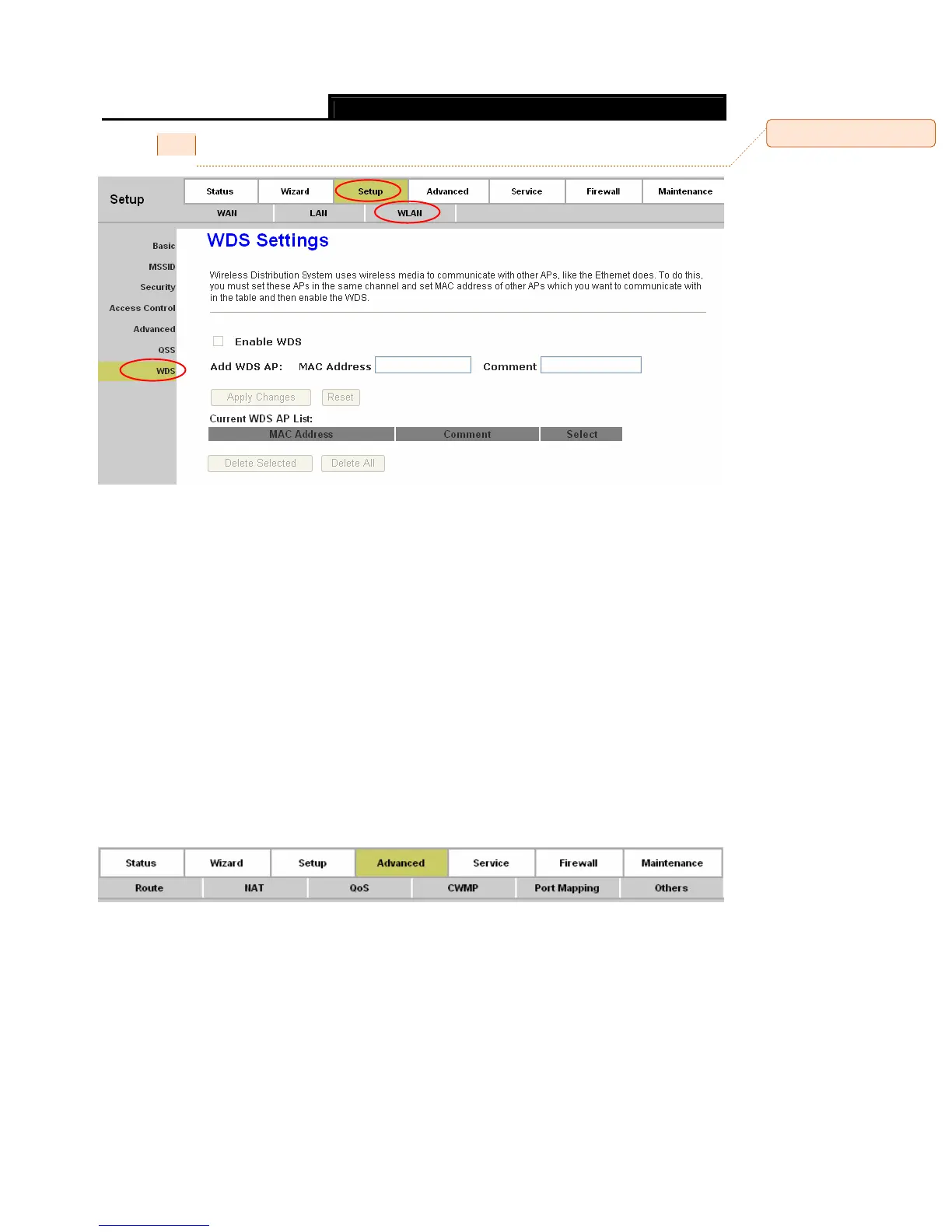

Figure 4-24
 Enable WDS: Select to enable WDS. With this function enabled, the Router can bridge two or
more WLANs.
 Add WDS AP:
 MAC Address: Enter the MAC Address you wish to bridge in the field.
 Comment: Give a comment.

Note:
If changes are made, after clicking Apply Changes button, a Save button will appear on the left
panel. You need to click the Save button to make your changes take effect.
4.3 Advanced
Choose “Advanced”, you can see the next submenus:
Click any of them, and you will be able to configure the corresponding function.
4.3.1 Route
4.3.1.1 Static Route
Choose “Advanced→Route→Static Route” menu, you can configure the routing information in
the next screen (shown in Figure 4-25). Here you can add or delete IP routes.
Comment [znh1]: 无法设置
