Web Smart Gigabit Switch Family User's Guide
TL-SG2216WEB/TL-SG2224WEB
A MAC address and its corresponding switch port should be provided when
adding a static MAC address entry.
Search: Input the MAC address in “Mac Address” eld and click “Search”
button. If that MAC address exists, the following page will display:

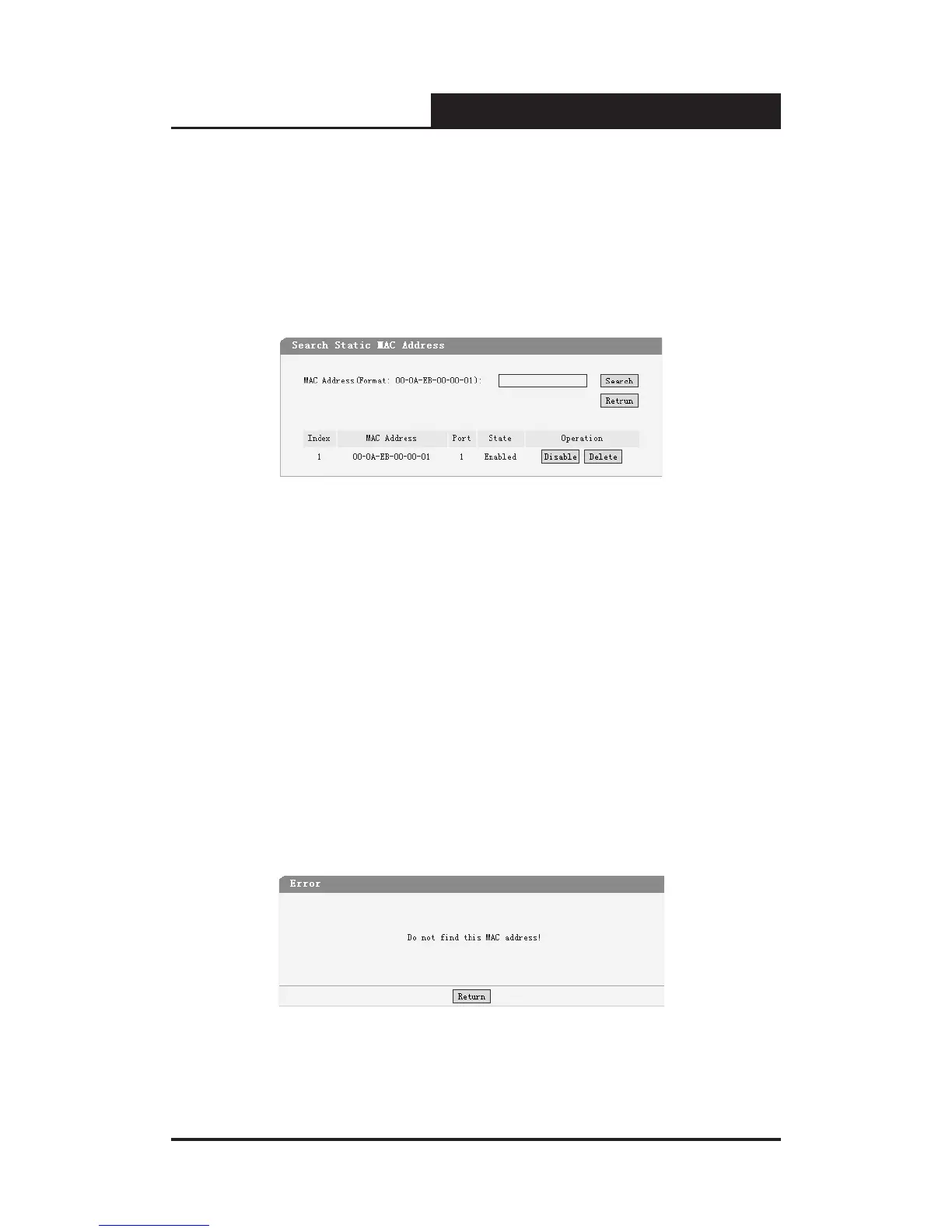

Figure 5-25 A Successful Searching
Index: Stands for entry index of the MAC address in the table.
Port: Stands for the switch port number.
State: Indicates the entry in enabled state or disabled state.
Operation: Provides the function of enabling, disabling or deleting an
entry.
Return: Return to the “Static MAC Address” page.
A search can also be executed in this page.
If the static MAC address isn’t found in searching, then the following page will
display:
Figure 5-26 A Failed Search
