60
Web Smart Gigabit Switch Family User's Guide
TL-SG2216WEB/TL-SG2224WEB

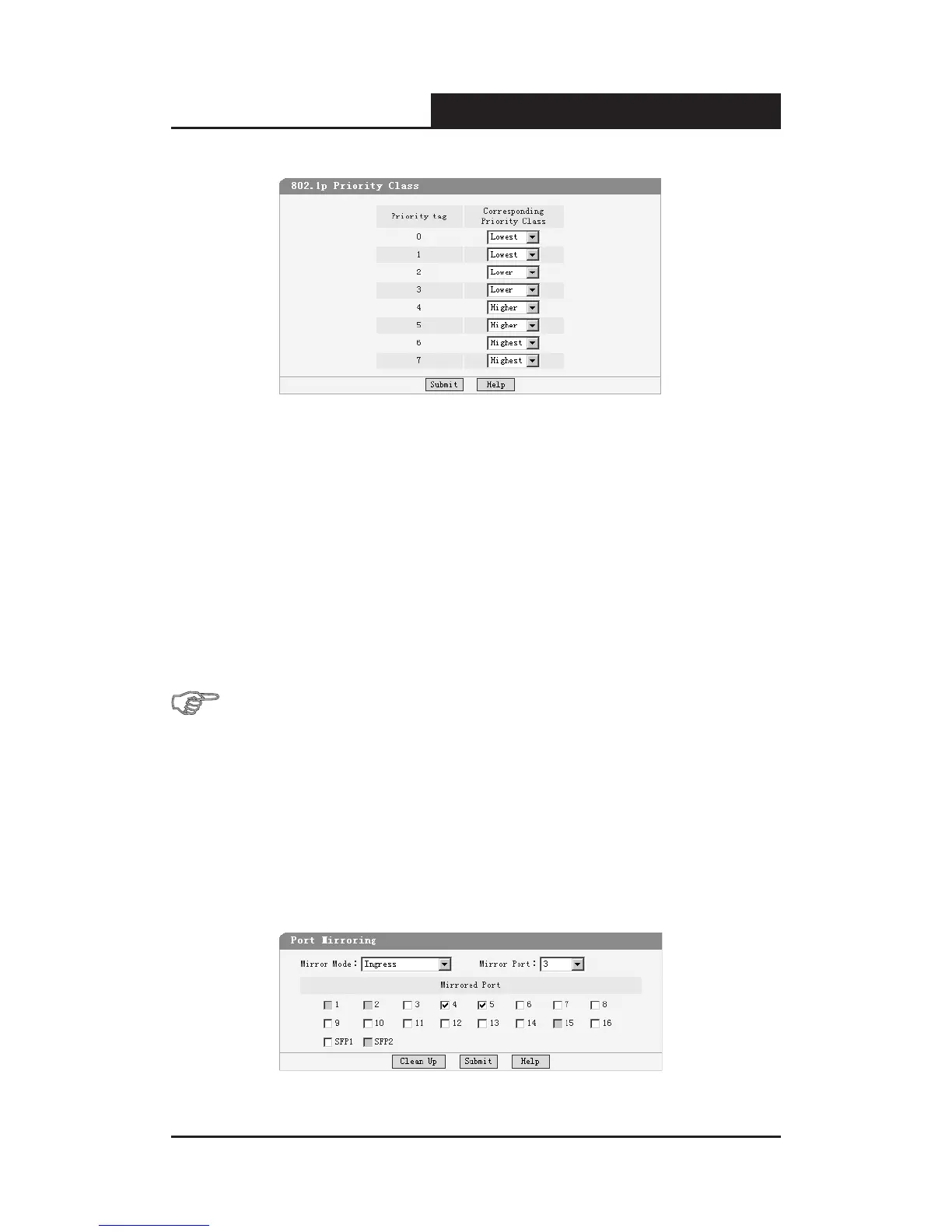

Figure 5-43 802.1p Priority
Priority Tag: The priority tag dened in IEEE802.1p.
Corresponding Priority Class: Indicates the inner priority classes of
switch. The tagged frames are classified into four classes inside the
switch: lowest, lower, higher and highest. When the “Weighted” priority rule
is congured, a 1,2,4,8 weighting is applied to forward these four classes
of packets.
Further explanation
In IEEE802.1p priority mode, when a switch port receives an untagged frame (a
frame without priority tag), the port's default priority tag will be inserted into the
frame before any other process.
5.3.7 Port Mirroring
This page contains the following elds:
Figure 5-44 Port Mirroring
