64
Web Smart Gigabit Switch Family User's Guide
TL-SG2216WEB/TL-SG2224WEB
1 TX+
2 TX-
3 RX+
6 RX-
RX+ 1
RX- 2
TX+ 3
TX- 6
MDI-II
MDI-X

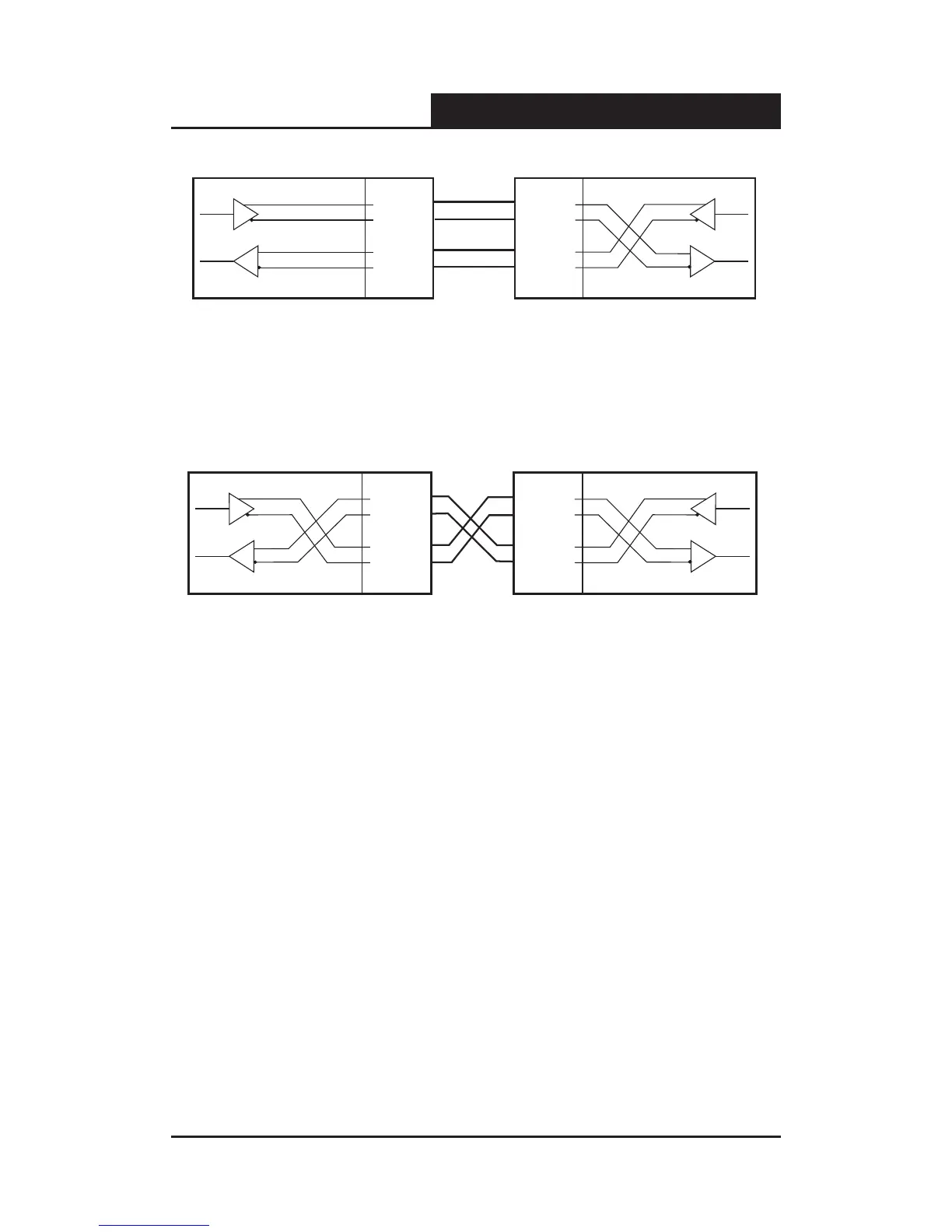

Figure straight cable
Crossed cable: use to connect switch (normal port) to switch/hub/other
device(normal port).
1 RX+
2 RX-
3 TX+
6 TX-
RX+ 1
RX- 2
TX+ 3
TX- 6
MDI-XMDI-X
Figure crossed cable
