TP-Link TL-WR841HP Quick Installation Guide

5
Chapter 1

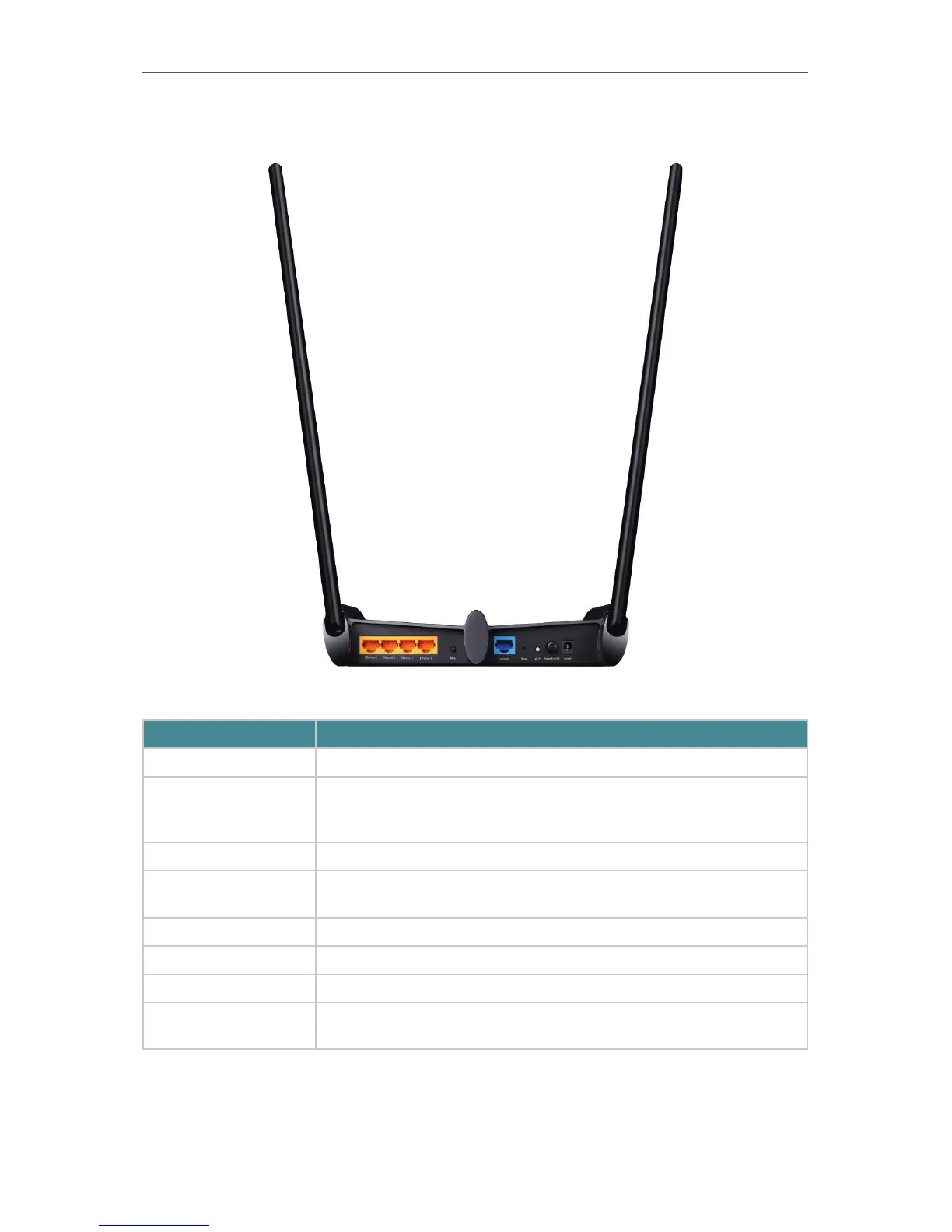

Get to Know About Your Router
1. 2. 2. The Back Panel
The following parts (view from left to right) are located on the rear panel.
Item Description
Ethernet Ports (1/2/3/4) For connecting your PCs or other wired network devices to the router.
WPS
If your devices, such as wireless adapters, that support Wi-Fi Protected Setup, then
you can press this button to quickly establish a connection between the router and
devices.
WAN Port For connecting to a DSL/Cable modem, or an Ethernet jack.
Reset Button
Use a pin to press and hold this button until all the LED turn on momentarily to reset
the router to its factory default settings.
Wi-Fi On/Off Press and hold this button about 2 seconds to enable or disable Wireless function.
Power On/Off For powering on or off the router.
Power Port For connecting the router to a power socket via the provided power adapter.
Antennas
Used for wireless operation and data transmitting. Upright them for the best Wi-Fi
performance.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
