TP-Link TL-WR841HP Quick Installation Guide

78
Chapter 5
Congure the Router as an Access Point

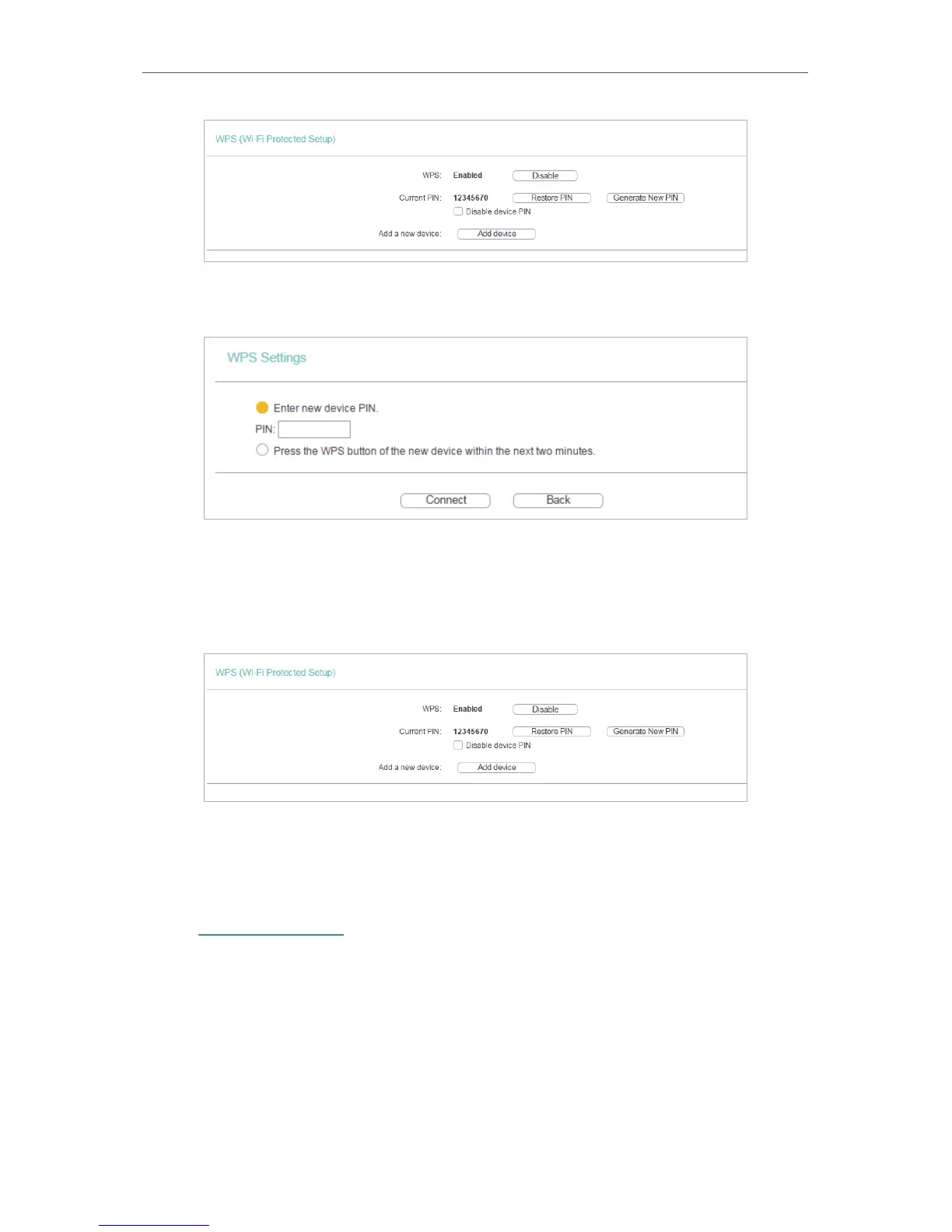

2. Select Enter the new device PIN, enter your client device’s current PIN in the PIN filed
and click Connect.
3. A success message will appear on the WPS page if the client device has been
successfully added to the router’s network.
Method Three: Enter the Router’s PIN
1. Keep the WPS Status as Enabled and get the Current PIN of the router.
2. Enter the router’s current PIN on your client device to join the router’s Wi-Fi network.
5. 4. 3. Wireless Security
1. Visit http://tplinkwifi.net, and log in with the username and password you set for the
router.
2. Go to Wireless > Wireless Security.
3. Configure the security settings of your wireless network and click Save.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
