TP-Link TL-WR841HP Quick Installation Guide

10
Chapter 2
Connect to the Internet

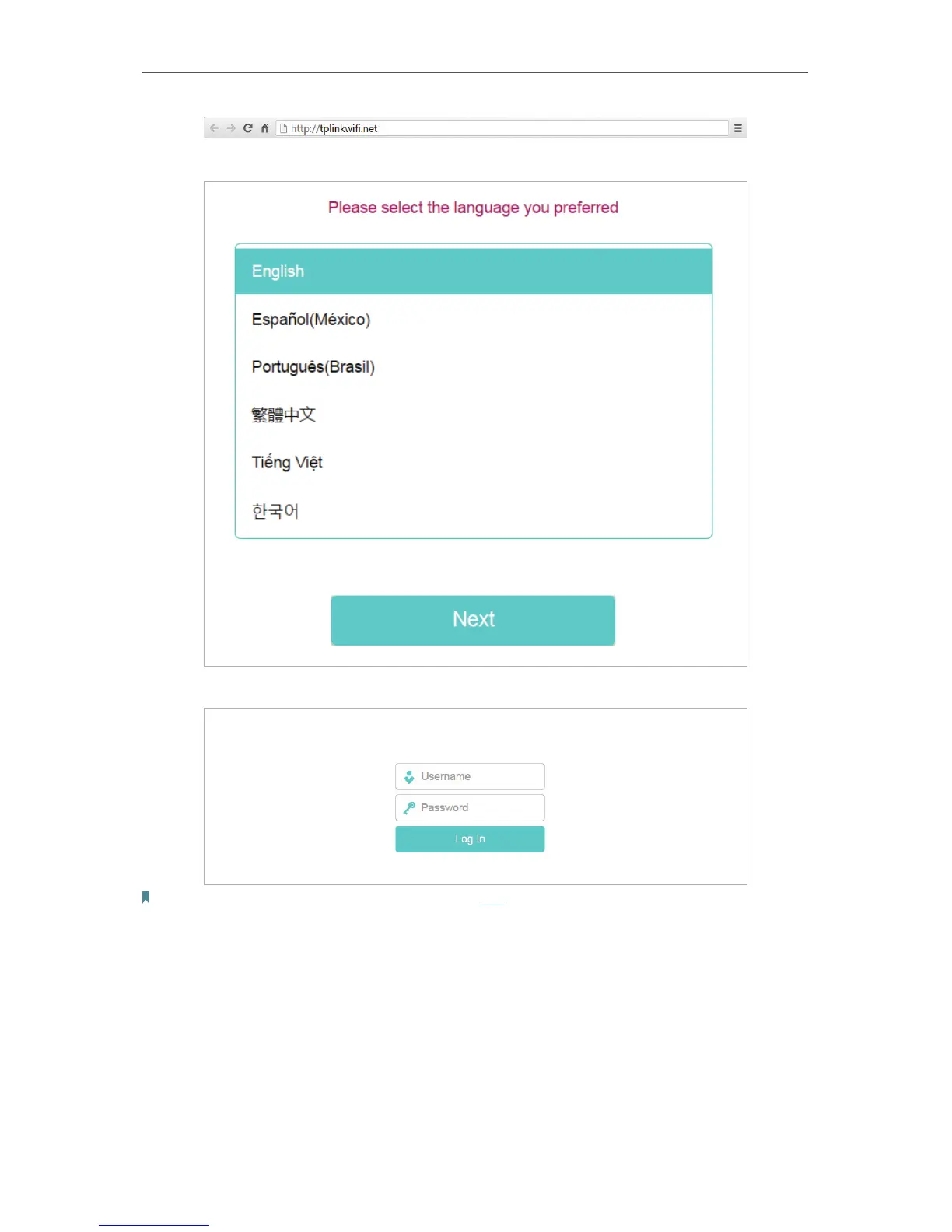

Note: If the login page does not appear, please refer to the FAQ section.
4. After successful login, click Next to start the Quick Setup. Select Wireless Router and
follow the step-by-step instructions to complete the initial configuration.
5. Enjoy! For wireless devices, you may have to reconnect to the wireless network if you
have customized the SSID (network name) and password during the configuration.
2. 2. 3. Repeater/Bridge Mode
This mode boosts your home wireless coverage.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
