21
Chapter 4
Configure the Router as a Standard Wireless Router

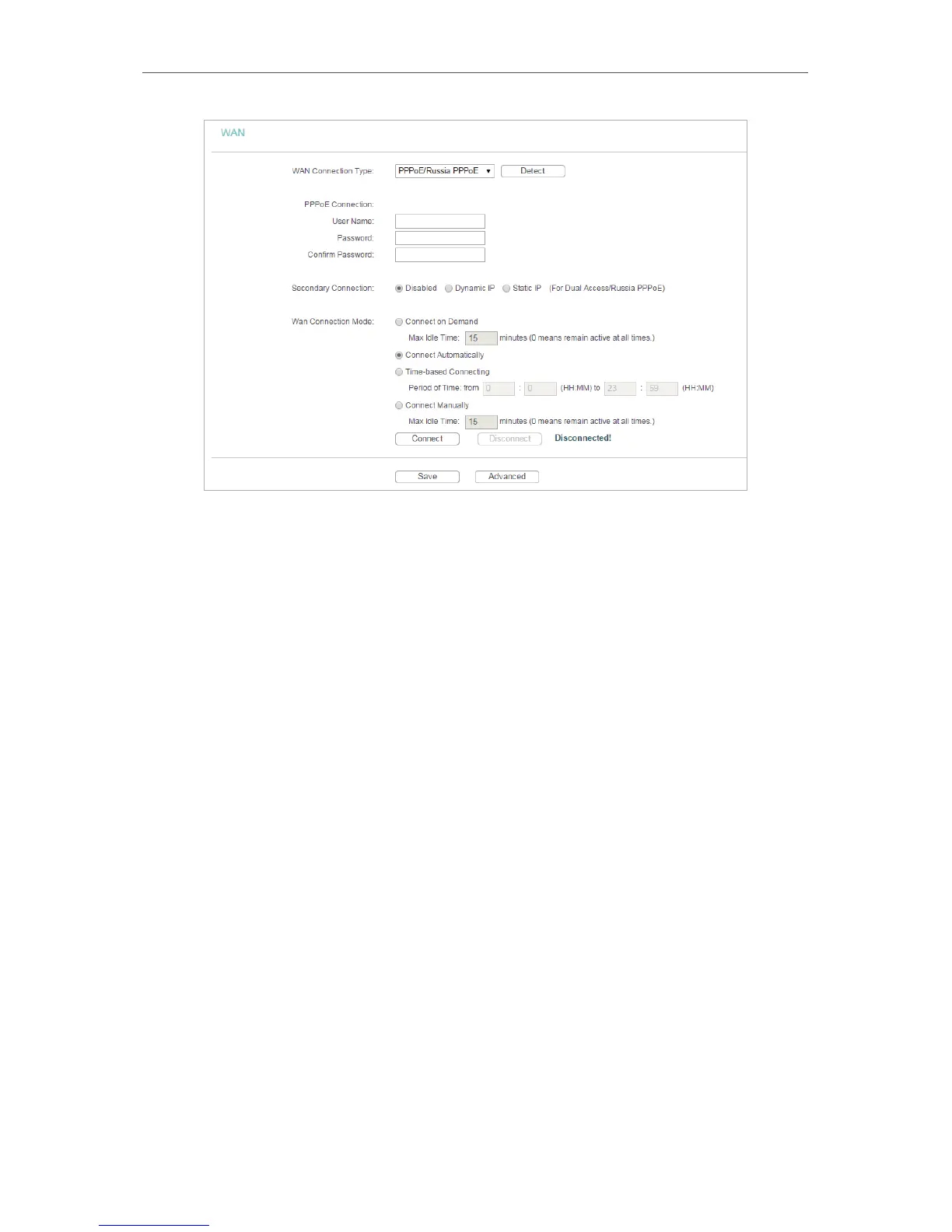

User Name/Password - Enter the user name and password provided by your ISP.
These fields are case-sensitive.
Confirm Password - Enter the Password provided by your ISP again to ensure the
password you entered is correct.
Secondary Connection - It’s available only for PPPoE connection. If your ISP provides
an extra connection type, select Dynamic IP or Static IP to activate the secondary
connection.
WAN Connection Mode
Connect on Demand - In this mode, the internet connection can be terminated
automatically after a specified inactivity period (Max Idle Time) and be re-
established when you attempt to access the internet again. If you want to keep
your internet connection active all the time, please enter 0 in the Max Idle Time
field. Otherwise, enter the number of minutes you want to have elapsed before
your internet access disconnects.
Connect Automatically - The connection can be re-established automatically
when it is down.
Time-based Connecting - The connection will only be established in the period
from the start time to the end time (both are in HH:MM format).
Connect Manually - You can click Connect/Disconnect to connect/disconnect
immediately. This mode also supports the Max Idle Time function as Connect
on Demand mode. The internet connection can be disconnected automatically
after a specified inactivity period (Max Idle Time) and not be able to re-establish
when you attempt to access the internet again.

Table of Contents

Other manuals for TP-Link TL-WR841HP

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TP-Link TL-WR841HP and is the answer not in the manual?

TP-Link TL-WR841HP Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Number of guest networks (2.4 GHz)1
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
USB portNo
Ethernet LAN (RJ-45) ports4
Supported network protocolsDynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionalityVirtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithmsWEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power30 dBmW
Antennas quantity2
Antenna connector type-
Antenna gain level (max)9 dBi
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Product typeTabletop router
Product colorBlack
Cables includedLAN (RJ-45)
WAN connection typeRJ-45
Output current1 A
Output voltage12 V
Power source typeDC
Weight and Dimensions IconWeight and Dimensions
Depth190 mm
Width227.5 mm
Height48.3 mm
