TP-Link TL-WR841HP Quick Installation Guide

45
Chapter 4
Configure the Router as a Standard Wireless Router

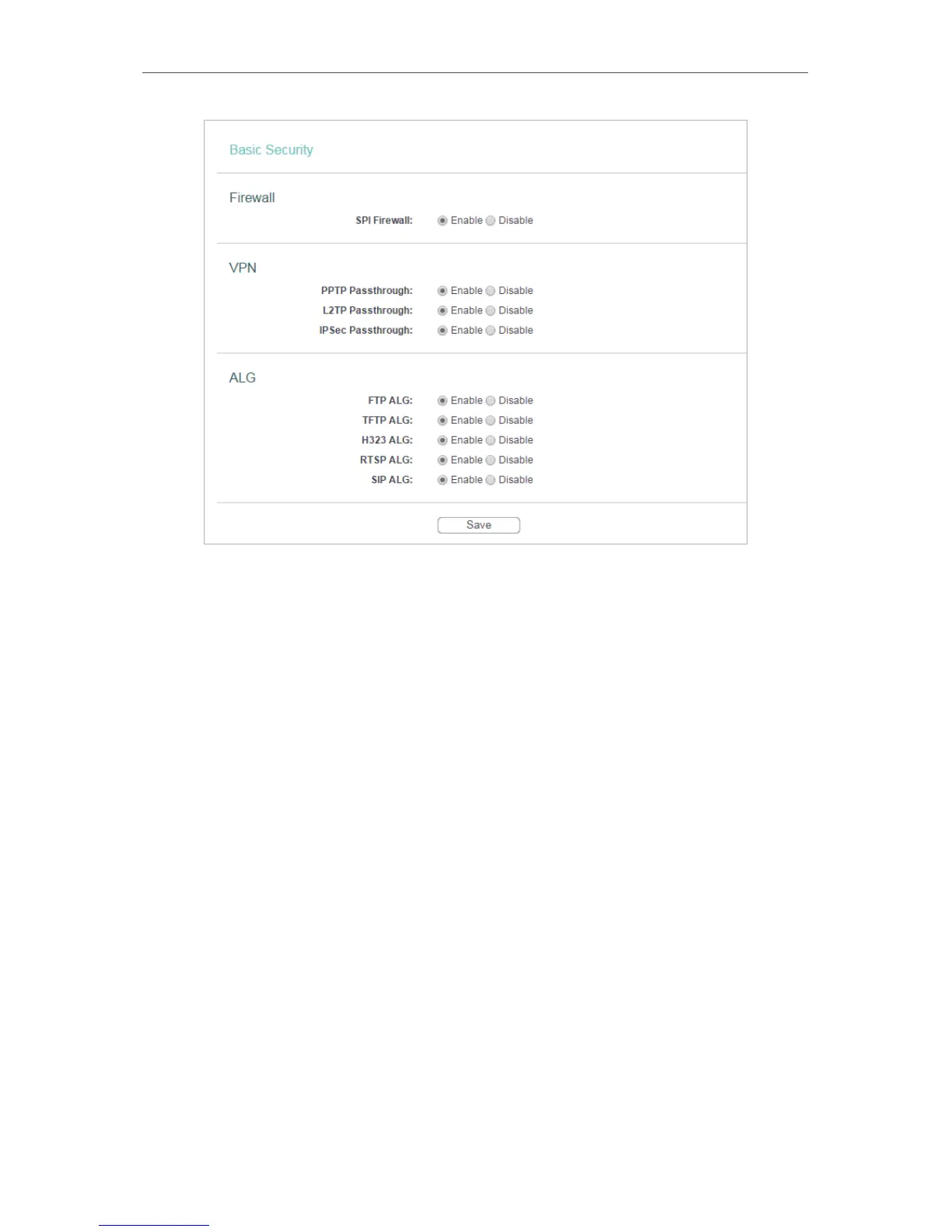

• Firewall - A firewall protects your network from internet attacks.
• SPI Firewall - SPI (Stateful Packet Inspection, also known as dynamic packet
filtering) helps to prevent cyber attacks by tracking more state per session. It
validates that the traffic passing through the session conforms to the protocol.
SPI Firewall is enabled by default.
• VPN - VPN Passthrough must be enabled if you want to allow VPN tunnels using IPSec,
PPTP or L2TP protocols to pass through the router’s firewall.
• PPTP Passthrough - Point-to-Point Tunneling Protocol (PPTP) allows the Point-
to-Point Protocol (PPP) to be tunneled through an IP network. If you want to allow
PPTP tunnels to pass through the router, you can keep the default (Enabled).
• L2TP Passthrough - Layer 2 Tunneling Protocol (L2TP) is the method used
to enable Point-to-Point sessions via the internet on the Layer 2 level. If you
want to allow L2TP tunnels to pass through the router, you can keep the default
(Enabled).
• IPSec Passthrough - Internet Protocol Security (IPSec) is a suite of protocols for
ensuring private, secure communications over Internet Protocol (IP) networks,
through the use of cryptographic security services. If you want to allow IPSec
tunnels to pass through the router, you can keep the default (Enabled).
• ALG - It is recommended to enable Application Layer Gateway (ALG) because ALG
allows customized Network Address Translation (NAT) traversal filters to be plugged
into the gateway to support address and port translation for certain application layer
“control/data” protocols such as FTP, TFTP, H323 etc.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
