94
Chapter 5
Congure the Router as an Access Point

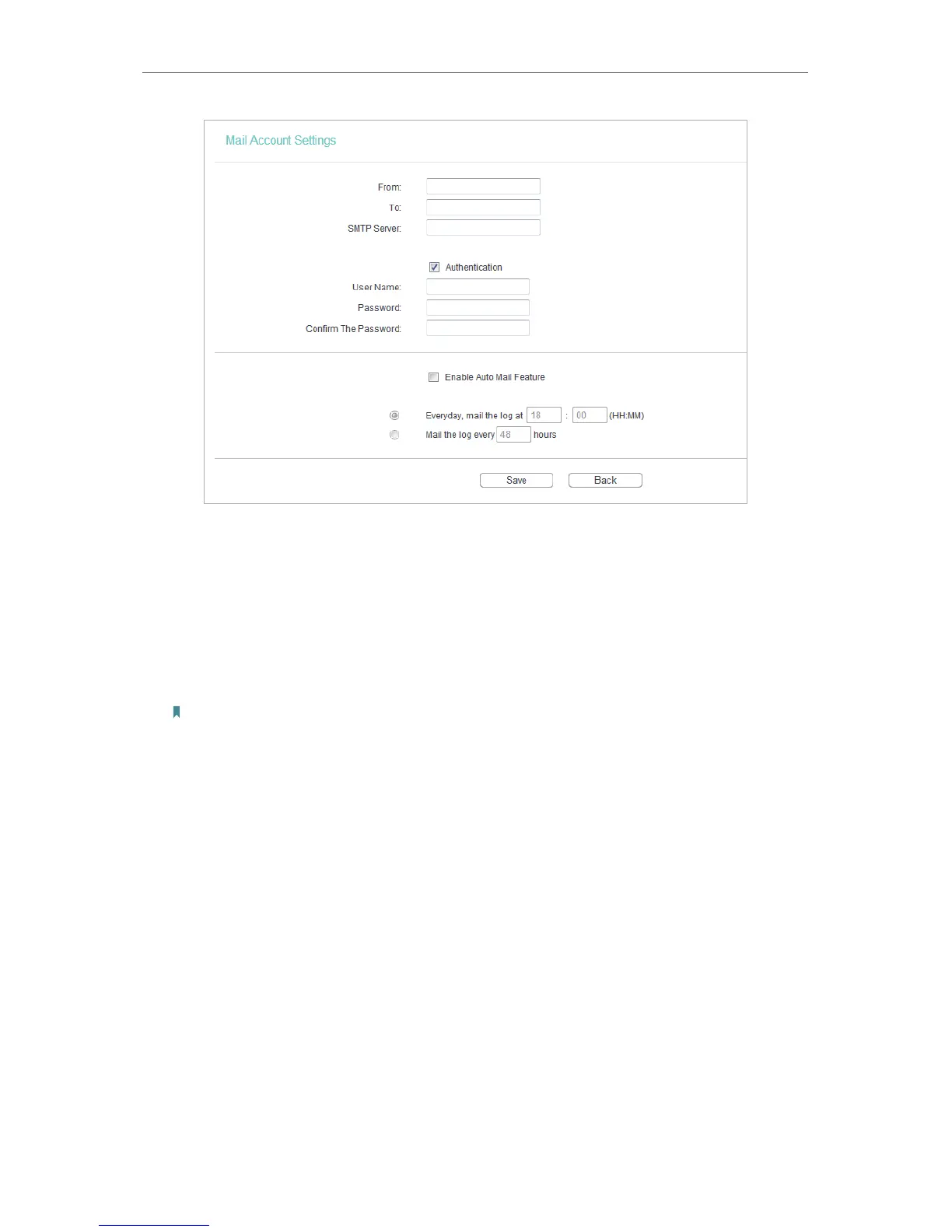

From - Your mail box address. The router will connect it to send logs.
To - Recipient’s mail address. The destination mailbox which will receive logs.
SMTP Server - Your smtp server. It corresponds with the mailbox filled in the
From field. You can log on the relevant website for help if you are not clear with
the address.
Authentication - Most SMTP Server requires Authentication. It is required by
most mailboxes that need user name and password to log in.
Note: Only when you select Authentication, do you have to enter the user name and password in the following
fields.
User Name - Your mail account name filled in the From field. The part behind @
is included.
Password - Your mail account password.
Confirm The Password - Enter the password again to confirm.
Enable Auto Mail Feature - Select it to mail logs automatically. You could mail
the current logs either at a specified time everyday or by intervals, but only one
could be the current effective rule. Enter the desired time or intervals in the
corresponding field.
Click Save to apply your settings.
Click Back to return to the previous page.
Log Type - By selecting the log type, only logs of this type will be shown.
Log Level - By selecting the log level, only logs of this level will be shown.
Refresh - Refresh the page to show the latest log list.
Save Log - Click to save all the logs in a txt file.

Table of Contents

Other manuals for TP-Link TL-WR841HP

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TP-Link TL-WR841HP and is the answer not in the manual?

TP-Link TL-WR841HP Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Number of guest networks (2.4 GHz)1
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)300 Mbit/s
USB portNo
Ethernet LAN (RJ-45) ports4
Supported network protocolsDynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionalityVirtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithmsWEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power30 dBmW
Antennas quantity2
Antenna connector type-
Antenna gain level (max)9 dBi
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Product typeTabletop router
Product colorBlack
Cables includedLAN (RJ-45)
WAN connection typeRJ-45
Output current1 A
Output voltage12 V
Power source typeDC
Weight and Dimensions IconWeight and Dimensions
Depth190 mm
Width227.5 mm
Height48.3 mm
