21
Chapter 4
Configure the Router in Wireless Router Mode

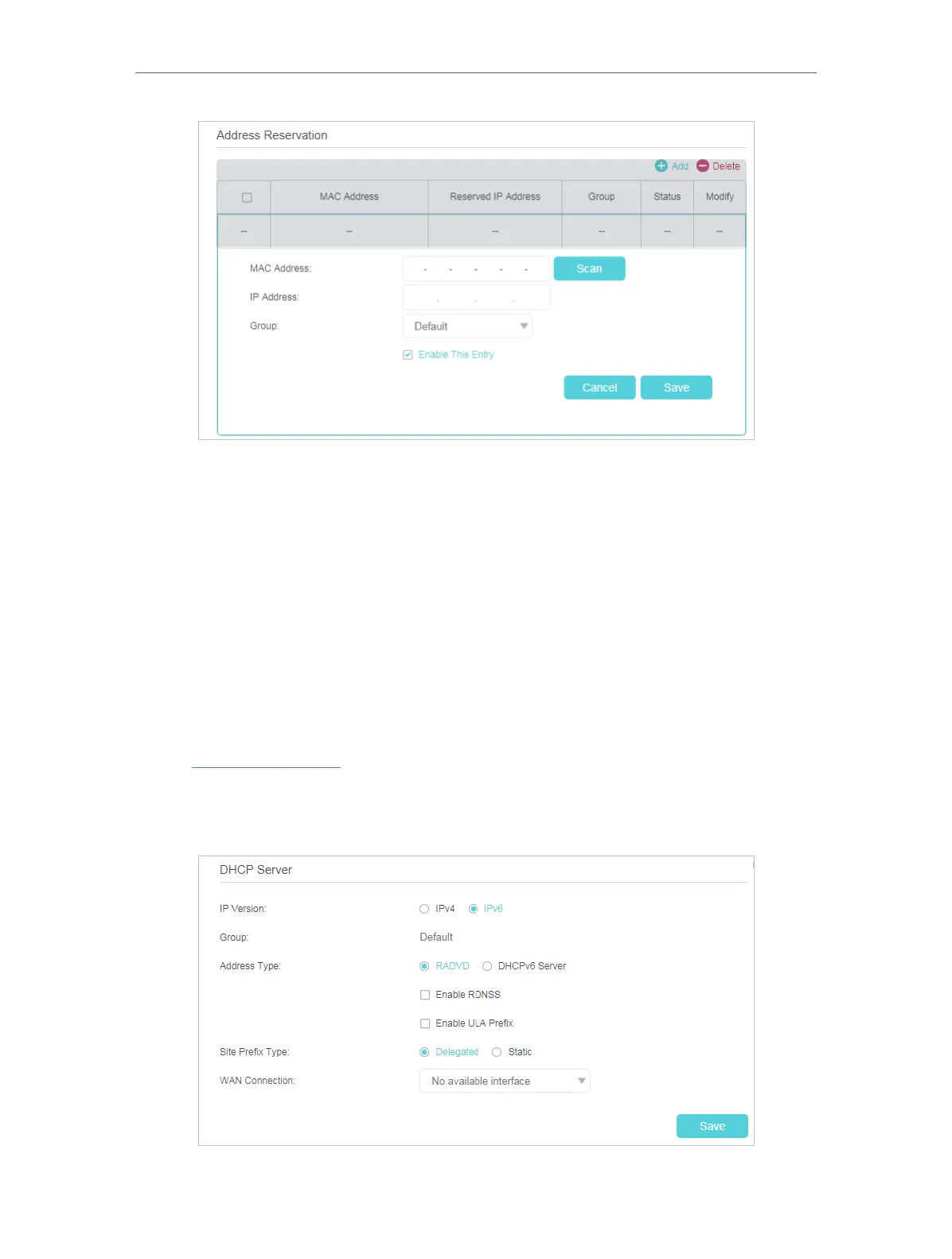

4. Enter the MAC address of the device for which you want to reserve IP address.
5. Specify the IP address which will be reserved by the router.
6. Check to Enable this entry and click Save to make the settings effective.
4. 3. 3. IPv6 LAN Settings
Based on the IPv6 protocol, the router provides two ways to assign IPv6 LAN addresses:
• Configure the RADVD (Router Advertisement Daemon) address type
• Configure the DHCPv6 Server address type
4.3.3.1. Configure the RADVD address type
1. Visit http://tplinkwifi.net, and log in with the password you set for the router.
2. Go to Advanced > Network > LAN Settings page.
3. Select IPv6 to configure IPv6 LAN parameters.
To Next Page
