121
Chapter 15
Quality of Service

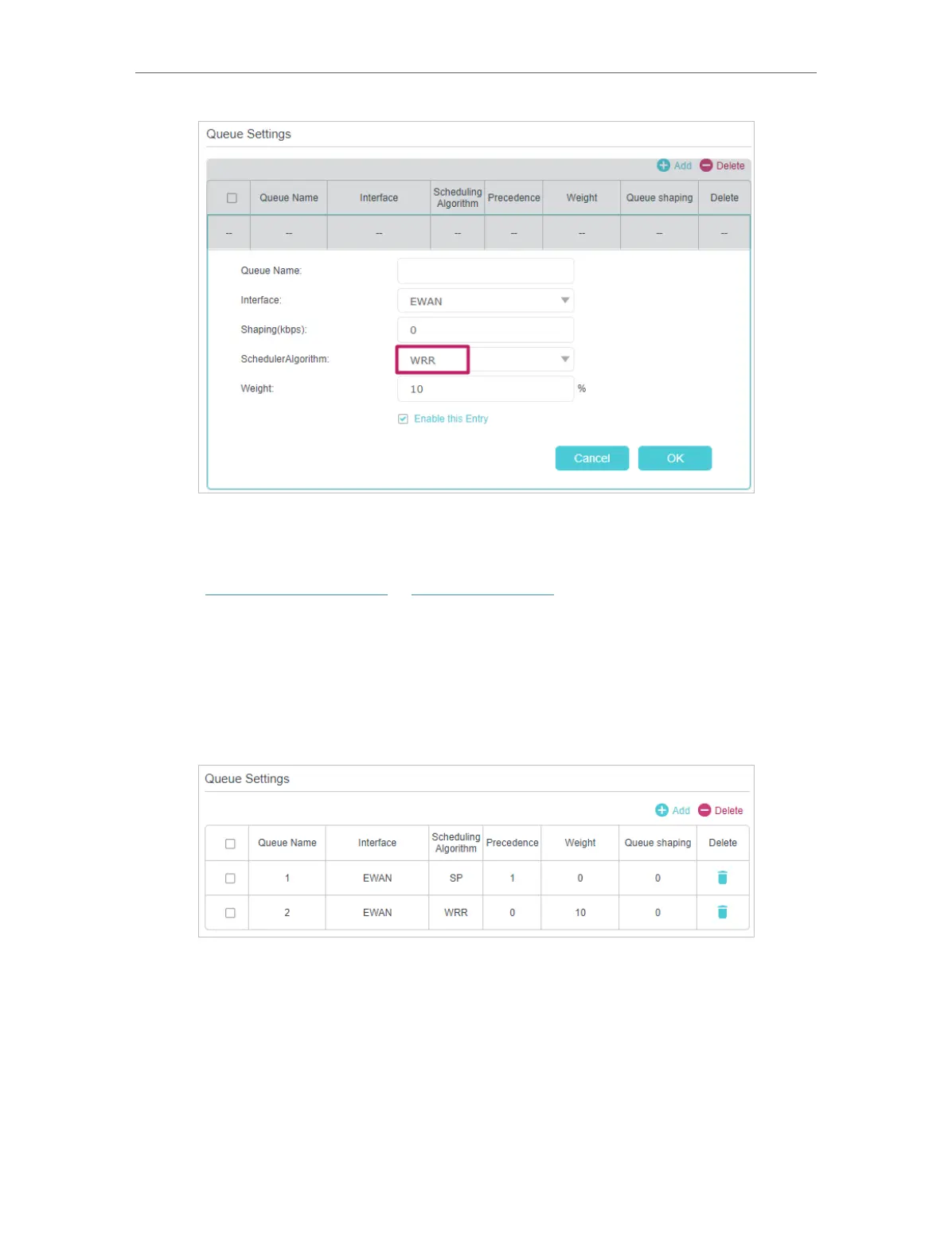

10. Click OK to save queue.
To delete a queue:
1. Visit http://tplinkmodem.net or http://192.168.1.1, and log in with the password you
set for the GPON router.
2. Go to Advanced > QoS > Queue Settings.
3. In the queue list, select the corresponding checkbox of the queue to be deleted and
click Delete above the table to delete multi queues, or click delete icon to delete
one queue.
15. 3. Configure Flow Classification
This page allows you to add classification rules to choose certain kind of packages
to enter a queue. The classification of packages is based mainly on the differences of
data link layer header, network layer header, transport layer header and so on.An option
should be empty if you don’t want to use it for a classification.
