Trace Engineering DR Series Owner’s Manual - Version 3.2 - 9/7/98 - Page 28

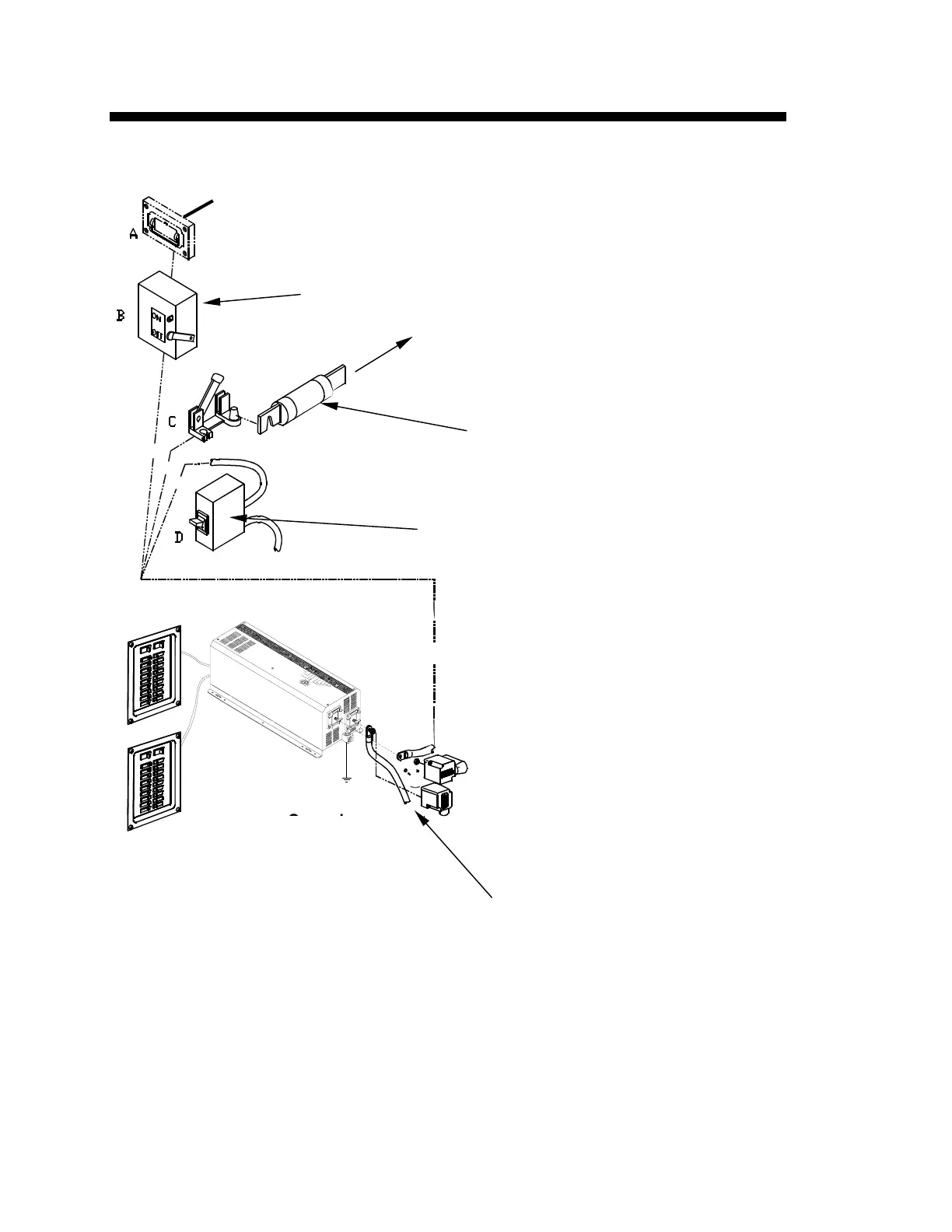

System Safety Wiring Requirements
Ananda Pull out Type DC Disconnect, or
Ananda SF400-T, 400 amp DC Rated
Disconnect Switch with 400 am
p
Class T
250 Amp
Minimu
m
Trace Engineering Class T
Fuse and Fuseblock
Recommended.
See section on DC Wiring for
To Battery Positive
To Battery Positive
To Battery Positive
Battery Supply Over Current Protection and DC
Disconnect. Trace Engineering DC175 or DC250
Recommended. Contact your Trace dealer for
s
p
ecific a
pp
lications.
To Battery
Negative (-)
Safety
Gd
AC Output disconnect and over current
protection accomplished using a circuit
breaker panel.
AC Input disconnect and over current
protection accomplished using a circuit
breaker panel.
3
1
2
+
_
Note: The above UL required safety parts are not supplied by Trace Engineering. High quality Trace
Engineering DC disconnects, covered class T fuses, and battery cables are available from your
Trace dealer. Other items may be obtained by calling or faxing:
INDUSTRIAL CONTROLS SUPPLY COMPANY
22410 70 AVE WEST, UNIT #6
MOUNTLAKE TERRACE, WASHINGTON, USA 98043
Phone: 1-800-756-2356 or 1-206-771-6344, FAX: 1-206-775-8901
