TrafiCam with TI (9 wires)
The cables for connection

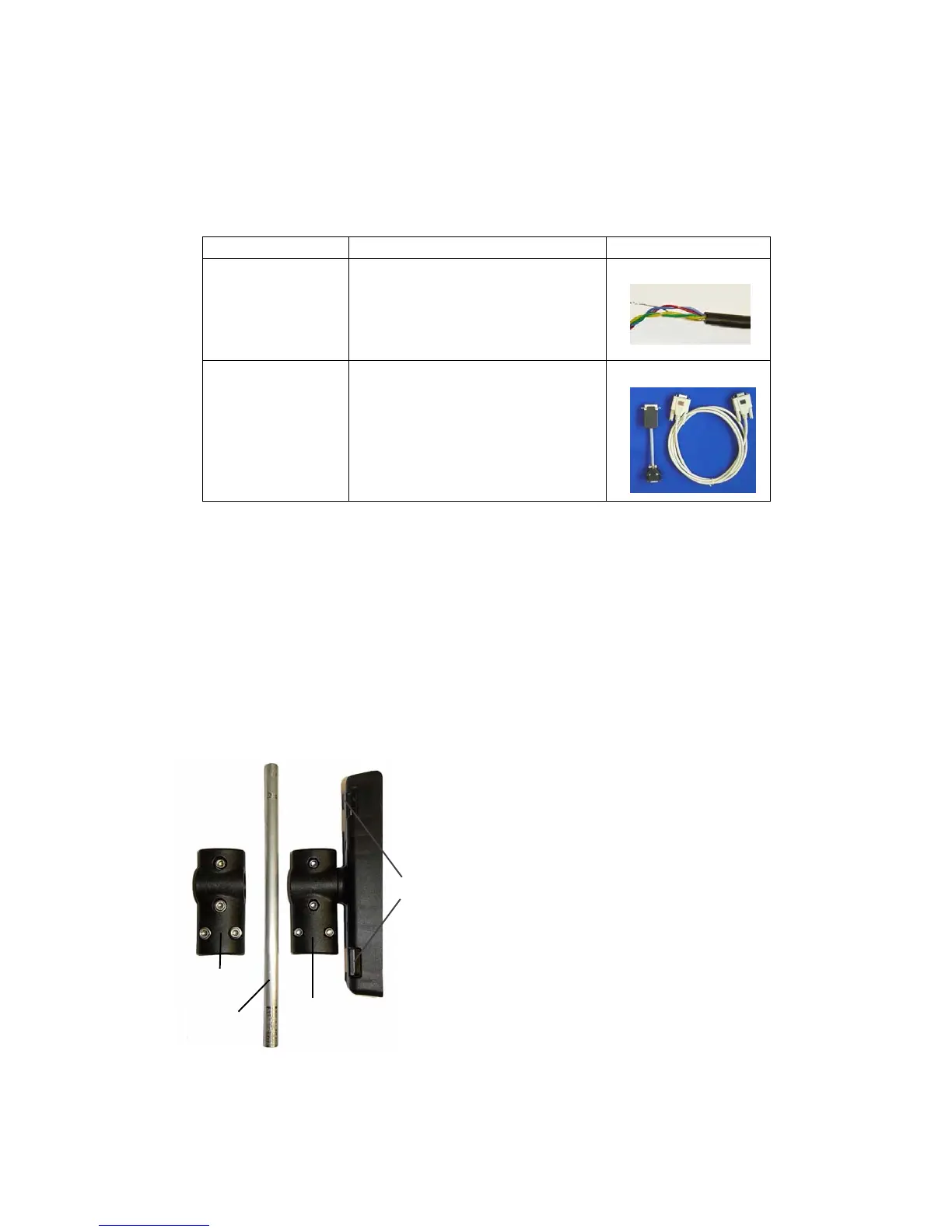

The table below gives an overview of the cables used for connecting the TrafiCam sensor, the interface and the PC.
Connection Cable Illustration
Sensor to interface UV-resistant, 9 wires + shielding
STP, cable d. 5-9,2 mm, min 5x2 + shield
min. wire d. 0,3 mm
Interface to PC RS-232 to RS-485 converter cable + DB9
serial cable
The cables for connection
The accessories for mounting
There is a mounting bracket for the TrafiCam sensor and a mounting bracket to the pole. The tube connects both
brackets.
C
A
B
D
A = The mounting bracket for the TrafiCam sensor
B = The tube
C = The mounting bracket to the pole
D = The holes to put the retaining straps through
The mounting accessories (brackets and tube)
