Traficon TrafiCam - The TrafiCam Sensor; Sensor Views and Components

4WX
TrafiCam with TI (9 wires)

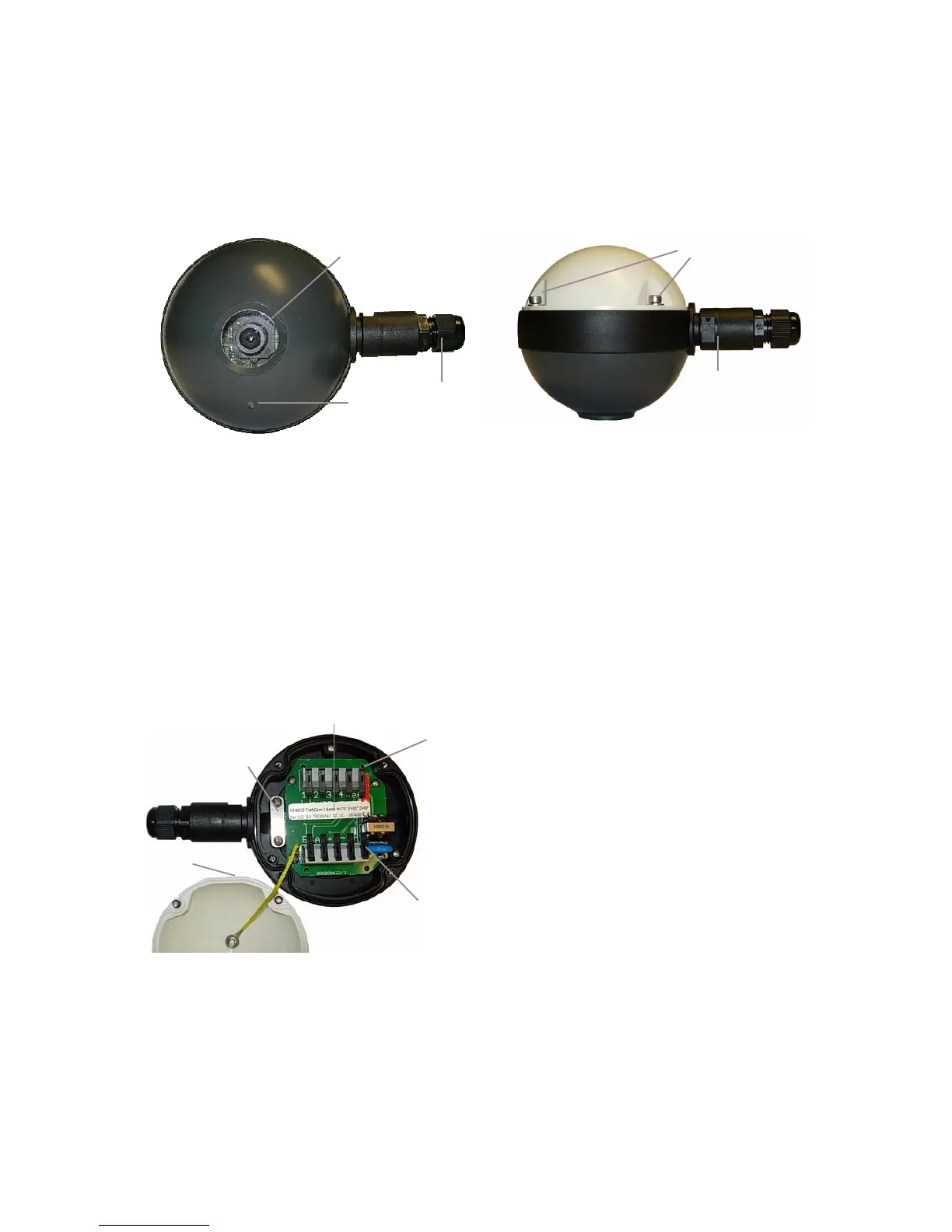

The TrafiCam sensor
A
C
B
A = The lens
B = The gland to insert the connection cable
between sensor and interface
C = The sensor LED
D
E
D = The screws on the rear shell (to open the sensor)
E = The rotating point to fix the mounting bracket
Front and side view of the TrafiCam sensor
B
CN1
A
C
CN2
CN1, CN2 = The connectors to the TI (9 wires) interface
CN1, CN2 pinout: see next.
A = The fixation plate (to keep the connection cable in its
place)
B = The product label
C = Flattened side of the rear shell (as an aid to close the
sensor)
The TrafiCam sensor opened
