TrafiCam with TI (9 wires)
3. Installation
Do not remove the lens cover until TrafiCam is installed.
Ensure that the system power is off before starting the installation.

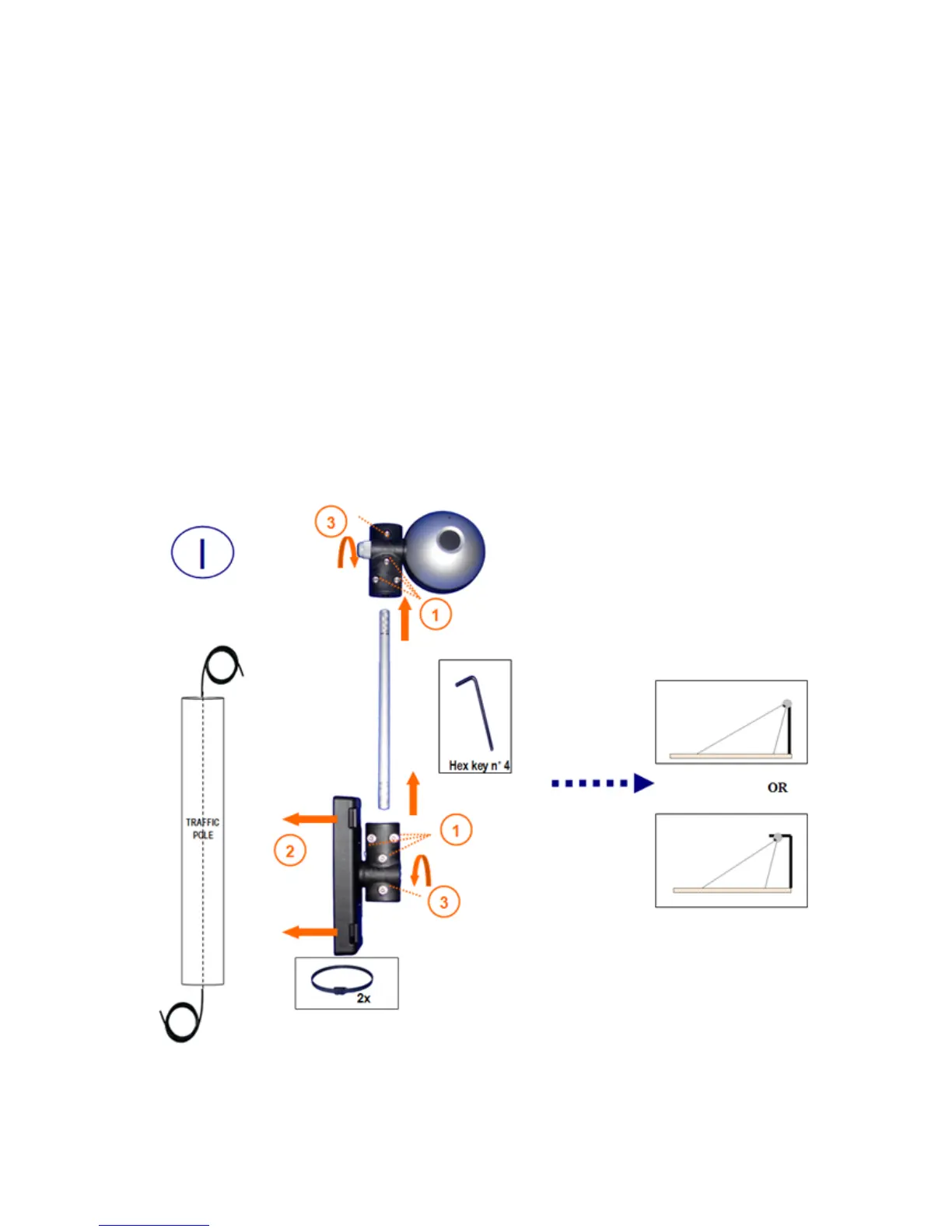

Step I: Mount the TrafiCam sensor on a stable pole.
• Fix the mounting tube to the brackets (Torque max = 1,3 Nm). (1)
• Fix TrafiCam to the pole using retaining straps. (2)
Put the retaining straps through the holes in the bracket.
• Position TrafiCam provisionally (Torque max = 1,3 Nm). (3)
You can mount TrafiCam in a horizontal or vertical position.
TrafiCam is a downward looking device.
