Guidelines to edit the zones
ALWAYS VERIFY THAT THERE IS NO HORIZON IN THE IMAGE!

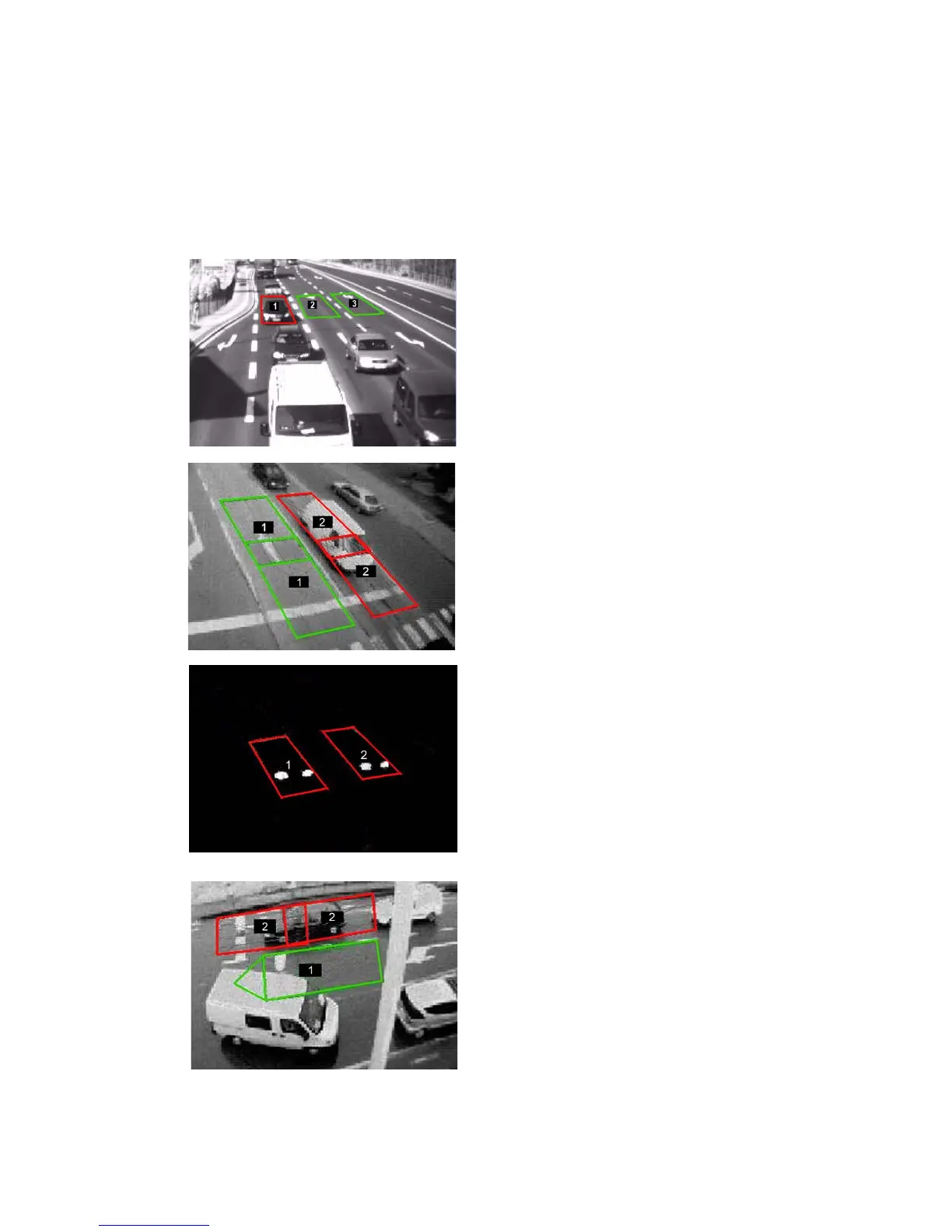

SIZE AND POSITION OF THE ZONE
The zone should have the length and the width
of a regular vehicle.
For detection at the stop bar place the zone as
such that the vehicle will stop in the middle of
the zone.
Take into account that vehicles may stop well in
front of or over the stop line.
OVERLAPPING ZONES
To optimise detection, two overlapping zones
may be used. These zones are assigned to the
same output.
Overlapping zones minimize the chance that a
car stops in front or behind a zone.
DETECTION AT NIGHT
The detection zones should cover the
headlights in every situation.
At night the detection is on the headlights of the
vehicle.
DIRECTION SENSITIVITY
The zone should be made direction sensitive in
situations where vehicles in the opposite
direction may cause unwanted detection.
