Trane Technologies Agility HDWA PC 747 - Page 40

40
HDWA-SVX002C-EN

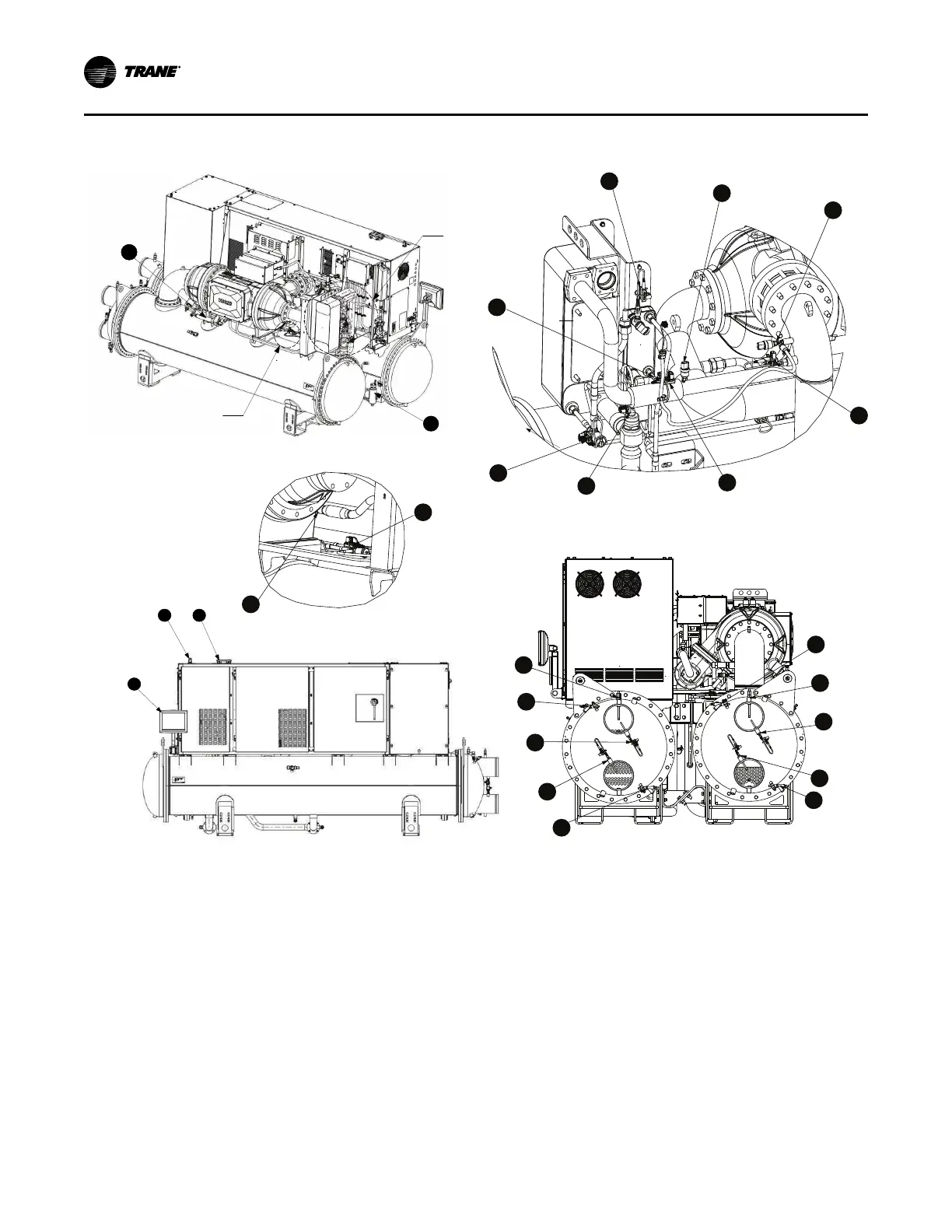

Figure 27. Agility chiller sensor locations
Detail A
Detail B
17
See Detail B
See Detail A
21
20
1
24 25
18
16
15
19
12
13
14
10
6
3
2
7
8
11
5
4
9
23
22
1. 4P1, Tracer® AdaptiView™ display
2. 4BT3, Condenser entering water temperature
3. 4BT6, Condenser leaving water temperature
4. 4BT2, Evaporator entering water temperature
5. 4BT5, Evaporator leaving water temperature
6. 4BP7, Condenser leaving water pressure transducer (Low)
7. 4BP6, Condenser entering water pressure transducer (High)
8. 4BP5, Evaporator leaving water pressure transducer (Low)
9. 4BP4, Evaporator entering water pressure transducer (High)
10. 4R18, Condenser water flow detector
11. 4R17, Evaporator water flow detector
12. 4BP3, Economizer leaving pressure
Electrical Requirements
