HDWA-SVX002C-EN
45
AdaptiView Control Panel

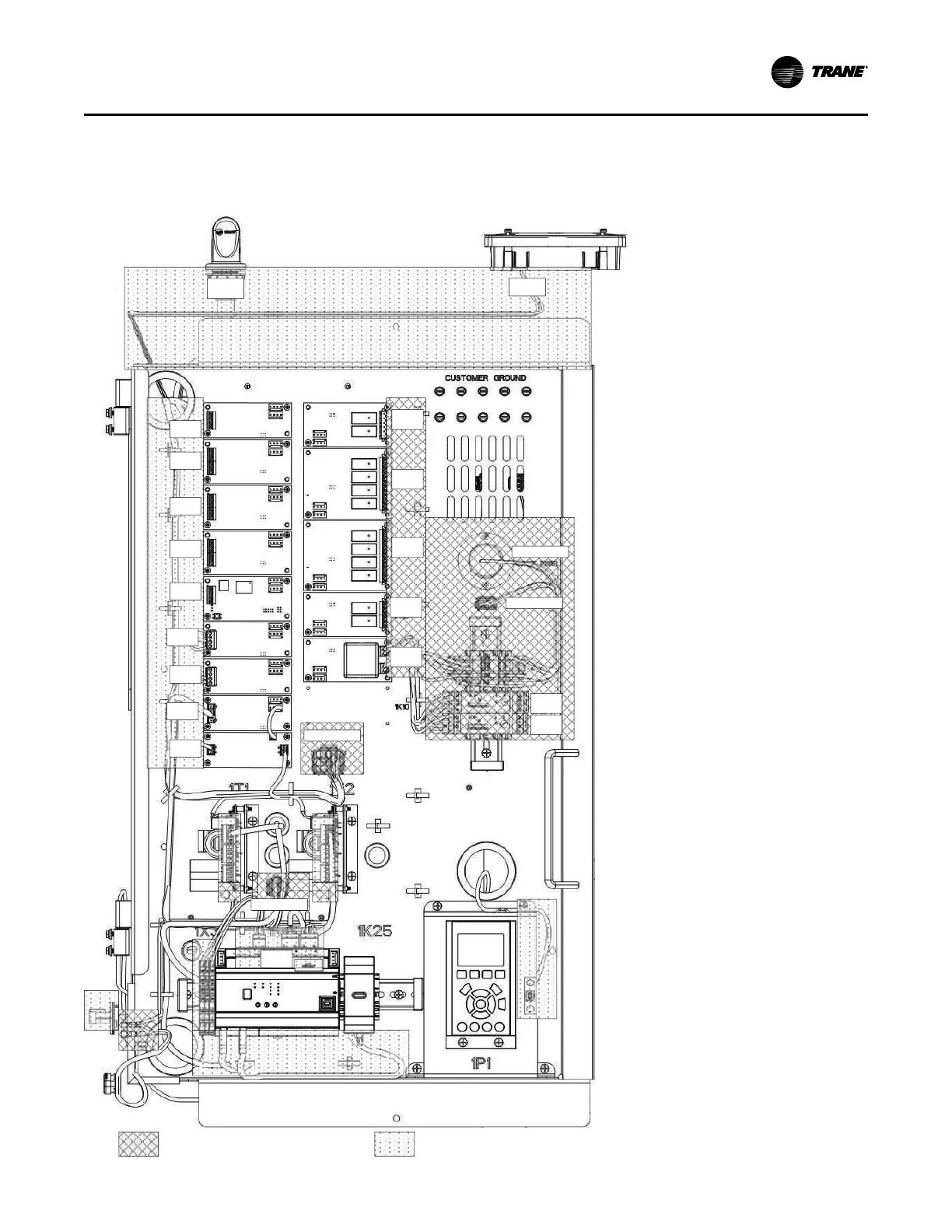

Figure 28. Control panel: Tracer AdaptiView main unit assembly (showing low voltage areas for proper routing of field
wiring)
30-115 Volt Maximum 30 Volt Maximum
4K4
4Y1
1K15
1K14
1K13
1K12
1K11
1XJ3/1XP3
1K22
1K23
1XJ1/1XP1
1XJ5/1XP5
1K9
1K8
1K7
1K6
1K5
1K4
1K3
1K2
1K1
1K20
1XJ2/1XP2
Installation: Controls
