Installing the Tracer AdaptiView
Display
During shipment, the Tracer® AdaptiView™ and support
arm are boxed, shrink-wrapped, and shipped with unit. The
display and support arm must be installed at the site.
Important: For best results, Trane, or an agent of Trane,
must install the Tracer AdaptiView display and
support arm.
1. Unwrap the chiller. Locate the box containing the
Tracer AdaptiView display and support arm strapped to
the shear plate between the condenser and the
evaporator (see the following figure).
2. Remove the display and support arm from the box.
Note: Display to support arm screws are M4 (metric
size 4), 6 to 8 mm long, and are shipped with the
display. Display arm screws are M6 (metric size
6), 16 mm long, washers, and nuts used to
secure arm to unit bracket are shipped in the
parts box.
3. Using the M6 hardware shipped in the parts box, attach
the display support arm to the mounting bracket on the
side of the control panel (labeled A and B in the
following figure).
4. Plug the power cable (labeled C in the following figure)
and the Ethernet cable (labeled D in the following
figure) into the bottom of the display. Plug other ends of
the cables into the ports on the side of the control
panel.
5. Adjust the Tracer AdaptiView display support arm so
the base plate that attaches to the display is horizontal.
CAUTION
Tension in Display Support Arm!
Failure to follow instructions below could result in
unexpected movement of the spring-loaded
support arm which could result in minor to
moderate injury.
Ensure that the support arm is in the full upright
position when removing the Tracer AdaptiView
display from the support arm.
Note: Review “Adjusting the Tracer
®
AdaptiView™
Display Arm,” p. 47 before attaching the display
as some adjustments may be required prior to
attaching the display to the support arm base.
6. Position the Tracer AdaptiView display—with the LCD
screen facing up—on top of the display support arm
base plate.
Note: Ensure the Trane logo is positioned so that it will
be at the top when the display is attached to the
display support arm.
Important: Use care when positioning the Tracer
AdaptiView display on top of the support
arm base plate and do NOT drop the
display.
7. Align the four holes in the display with the screw holes
in the display support arm base plate.
8. Attach the Tracer AdaptiView display to the display
support arm base plate (labeled E in the following
figure) using the M4 (metric size 4) screws referenced
in step 3.

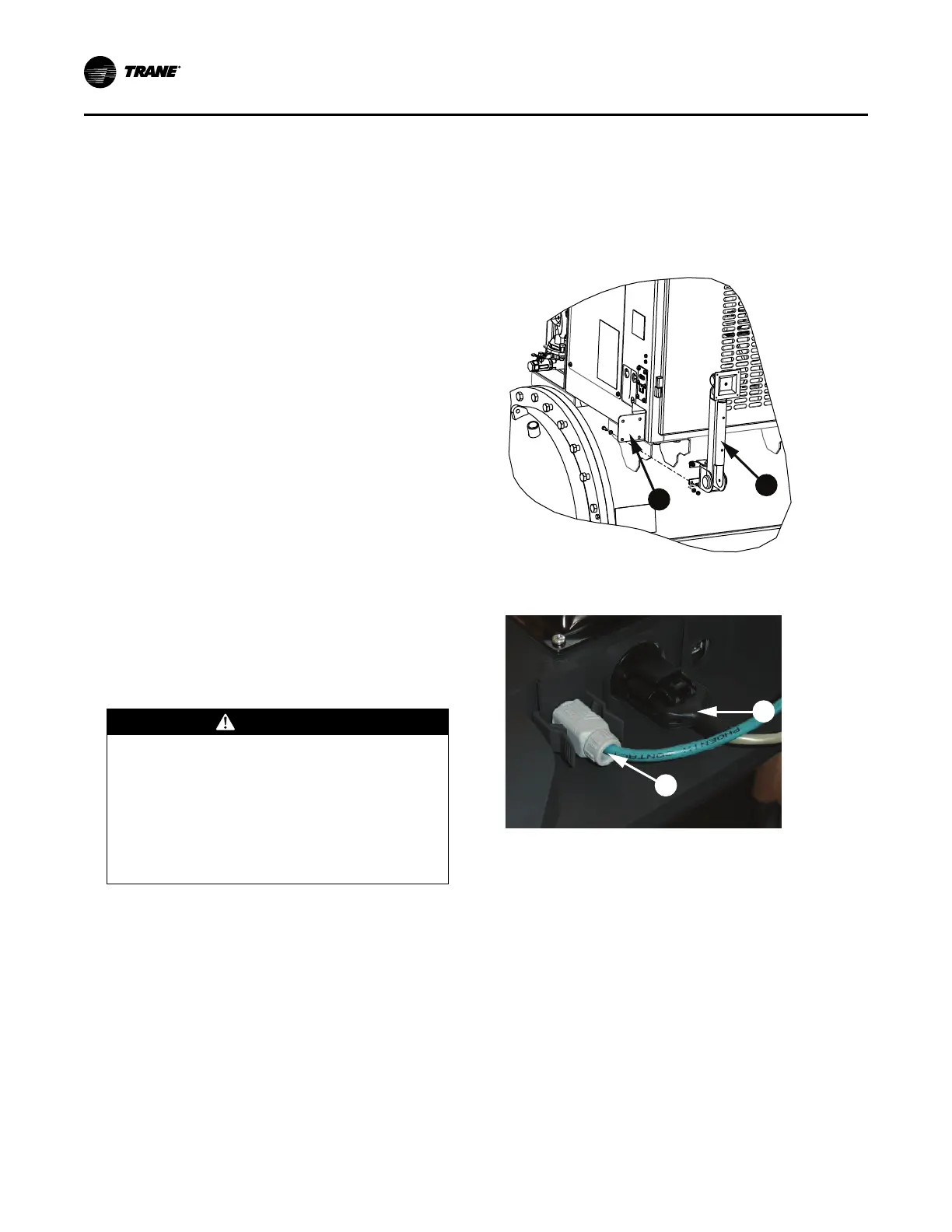

Figure 29. Display arm installation
Figure 30. Power cable and Ethernet cable
connections
Installation: Controls
