Trane Agility HDWA - Dimensions and Weights; Dimensions; Unit Specifications-Imperial (I-P); Units

14
HDWA-SVX001D-EN
Dimensions and Weights
Dimensions
Refer to unit submittals for specific chiller dimensions
and water connection locations.
Unit Specifications—Imperial (I-P) Units
Weights (lb)
IImmppoorrttaanntt:: The weight information provided here
should be used for general information
only. For specific weights for your chiller,
refer to your submittal package.
Table 1. Agility chiller weights (lb)
Shell
Shipping Weight
Operat-
ing
Weight
With
Refriger-
ant
Without
Refriger-
ant
020
Minimum 10100 9575 14087
Maximum 12302 11777
16775
040
Minimum 12706 11906 14134
Maximum 15058 14258 16830
Notes:
1. All weights ±5 percent.
2. Shipping weights include standard 150 psig waterboxes.
3. Operating weights include refrigerant, glycol, and water
charges.
4. Optional waterbox hinges each weigh 44 lb (19.94 kg).
Center of Gravity (in.)
Table 2. Agility chiller center of gravity (in.)
Shipping Operating
X Y Z X Y Z
Mini-
mum
29.2 31.2 39.7 29.6 29.3 39.8
Maxi-
mum
31.7 32.5 46.9 32.1 30.8 46.4
Notes:
1. All weights ±5 percent.
2. Shipping weights include standard 150 psig waterboxes.
3. Operating weights include refrigerant, glycol, and water
charges.

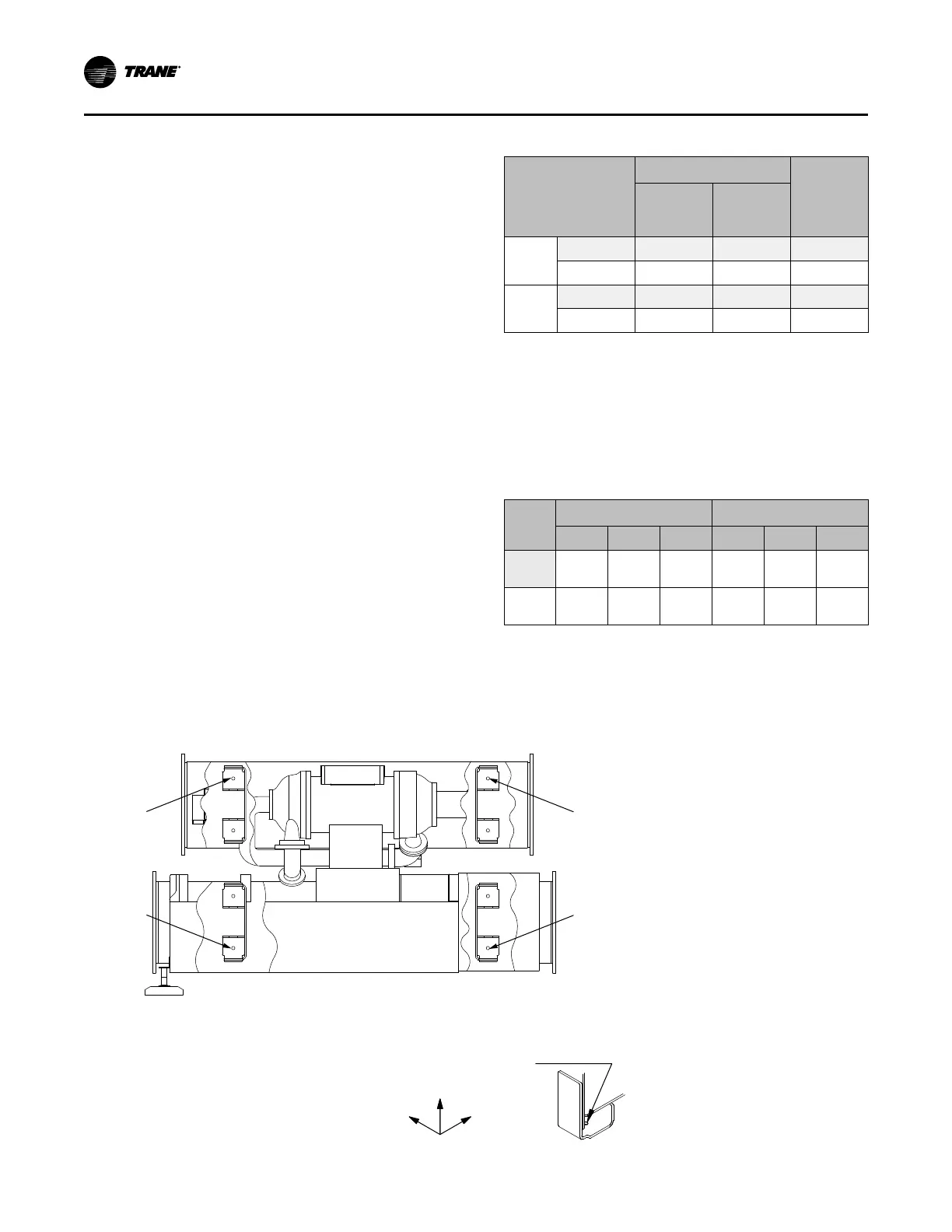

Figure 8. Zero point location for center of gravity data
Left Rear
Left Front
Right Rear
Right Front
Z
Y
X
Right Front Mounting Hole
The bottom of this hole is the (0,0,0) point
for center of gravity dimensions.
