HDWA-SVX001D-EN
7
Compressor Nameplate
The compressor assembly has a separate model
number which is required to identify internal and
external compressor parts. The model number begins
with “HDMA” and the nameplate is located on the
interstage pipe; refer to “Model Number
Descriptions,” p. 8.

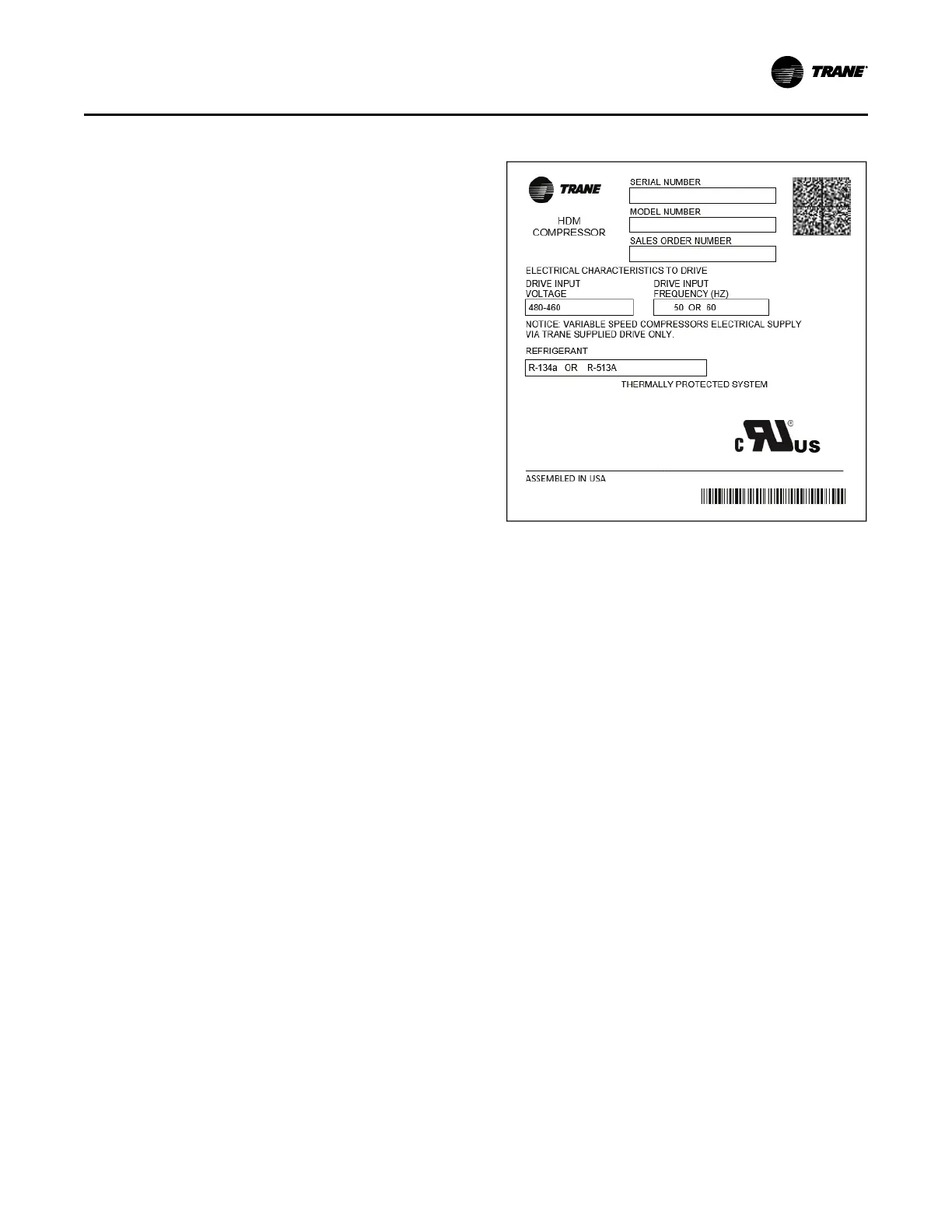

Figure 2. Compressor nameplate
NNoottee:: Do NOT cover compressor nameplate with wrap
or insulation (leave a window).
UUnniitt NNaammeeppllaattee
