HDWA-SVX001D-EN
49
Start-up and Shut-down
IImmppoorrttaanntt:: Initial unit commissioning start-up must be
performed by Trane or an agent of Trane
specifically authorized to perform start-up
and warranty of Trane products. Contractor
shall provide Trane (or an agent of Trane
specifically authorized to perform start-up)
with notice of the scheduled start-up at
least two weeks prior to the scheduled
start-up.
Sequence of Operation
Adaptive control algorithms are used on Agility™
chillers. This section illustrates common control
sequences.
Software Operation Overview Diagram
The following figure is a diagram of the five possible
software states. This diagram can be thought of as a
state chart, with the arrows and arrow text, depicting
the transitions between states:
• The text in the circles is the internal software
designations for each state.
• The first line of text in the circles is the visible top
level operating modes that can be displayed in
Tracer® AdaptiView™.
• The shading of each software state circle
corresponds to the shading on the time lines that
show the chiller’s state.
There are five generic states that the software can be
in:
• Power Up
• Stopped
• Starting
• Running
• Stopping

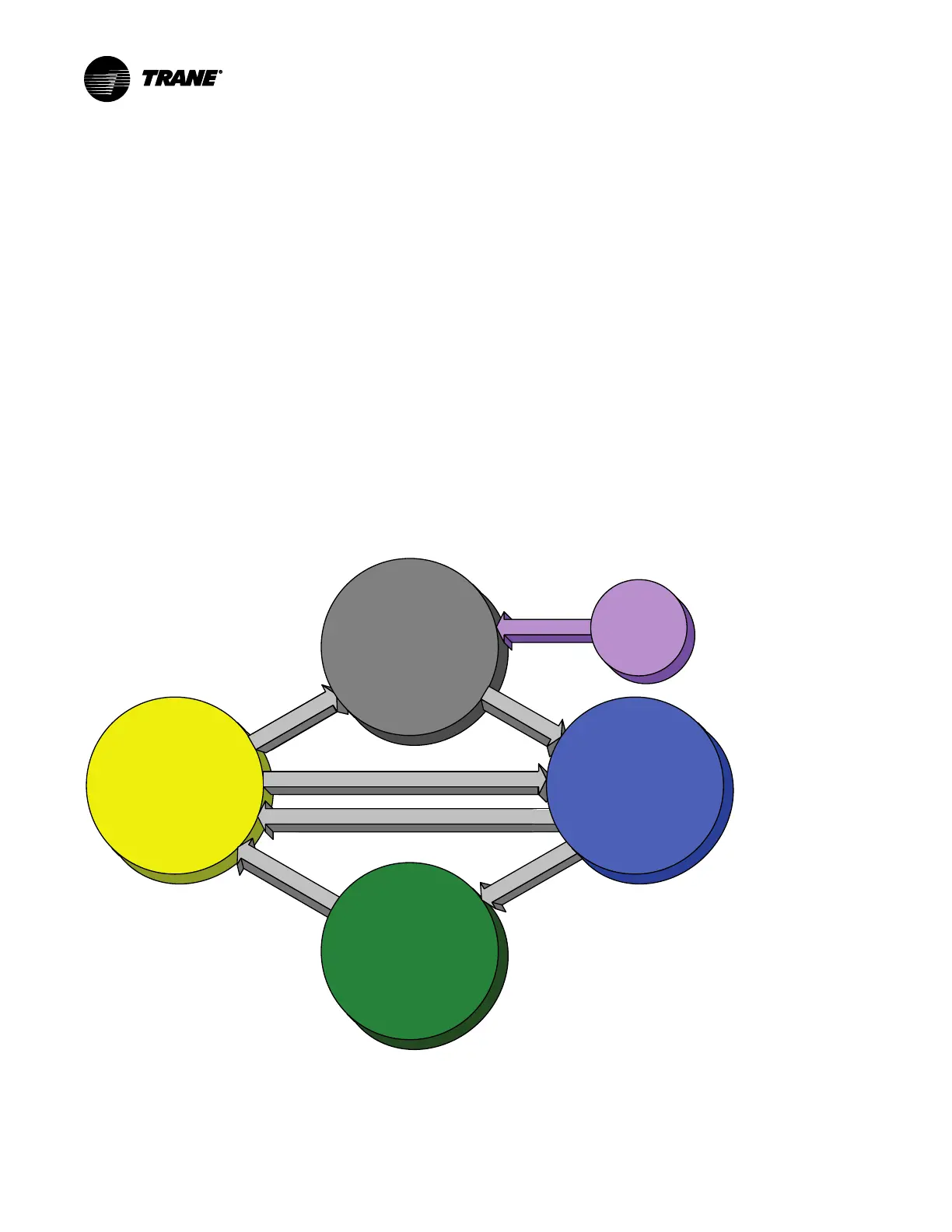

Figure 33. Software operation overview
Confirmed
Shutdown
Stopped
Stopped
Run Inhibit
Stopping
Preparing to Shut Down
Shutting Down
Running
Running
Running—Limit
Starting
Auto
Waiting to Start
Starting Compressor
Power
Up
Start
Command
Diagnostic
Res
e
t
Fast Restart or Satisfied Setpoint
Stop Command or Diagnostic
Stop Command
Diagnosti
c
Start
Confirmed
