30
AC-SVX003A-EN

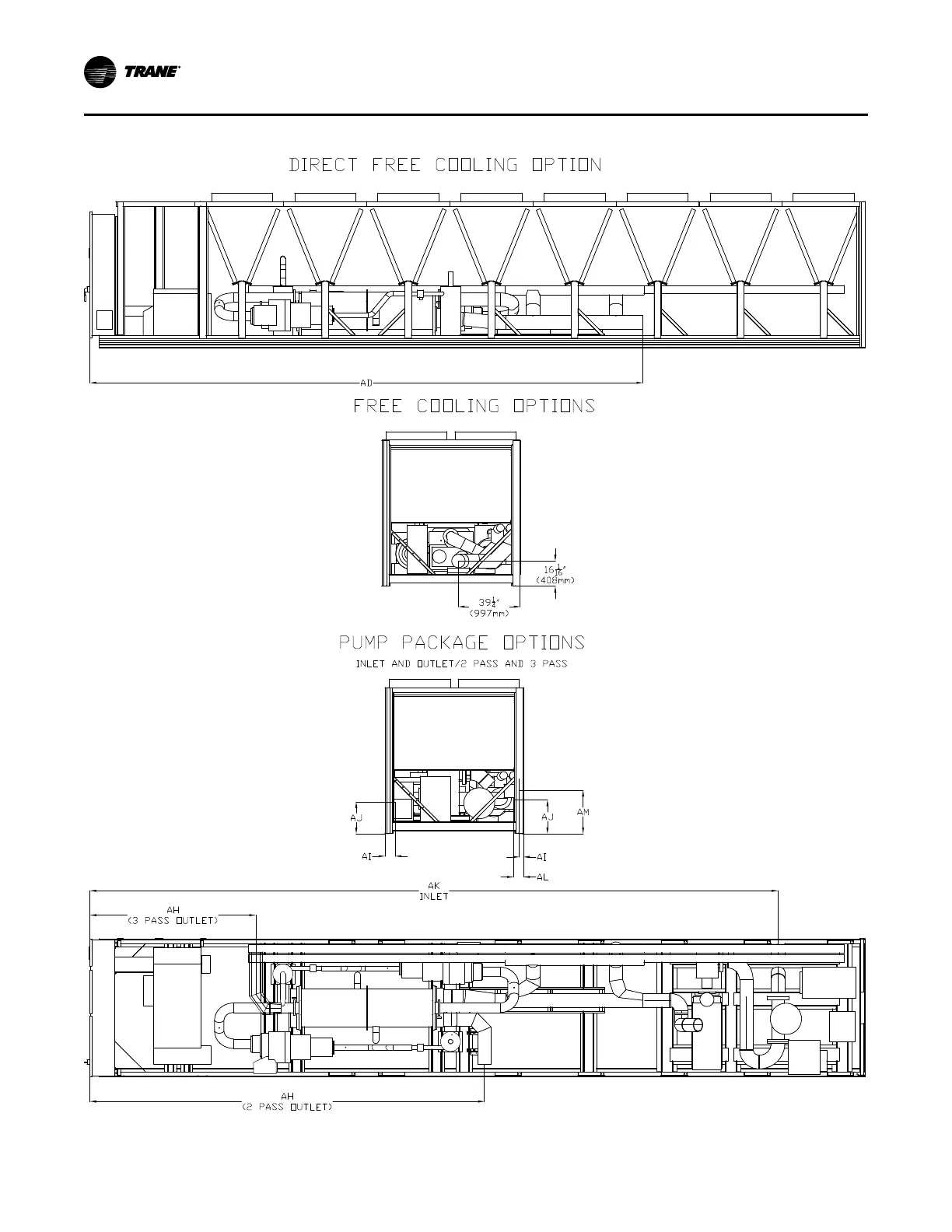

Figure 6. Water connection dimensions — 150 to 330 ton units with free-cooling or pump package option
Dimensions and Weights
