Navigating the User Interface
TheTracer SC user interface (UI) is designed with common navigation elements across all pages.
These include the global navigation bar, the left navigation menu, contextual help, and the
navigation tree. Each of these elements is described below.
Global navigation bar
Contains shortcuts to the home page, alarm and event log, user preferences, administrative
functions, the “Configuration UI”, and the entireTracer SC help system.
Outdoor air conditions
This information area displays the current outdoor air temperature outside of your facility.
Context sensitive help
Click to open a help topic exclusi ve to the page in which you are viewing.
Printer icon
Click to print the page that you are viewing.
The Screen Expansion icon
click to temporarily hide the left navigation menu.To return to the default view, click the icon again.
Left navigation menu
Contains a list ofTracer SC applications and equipment.

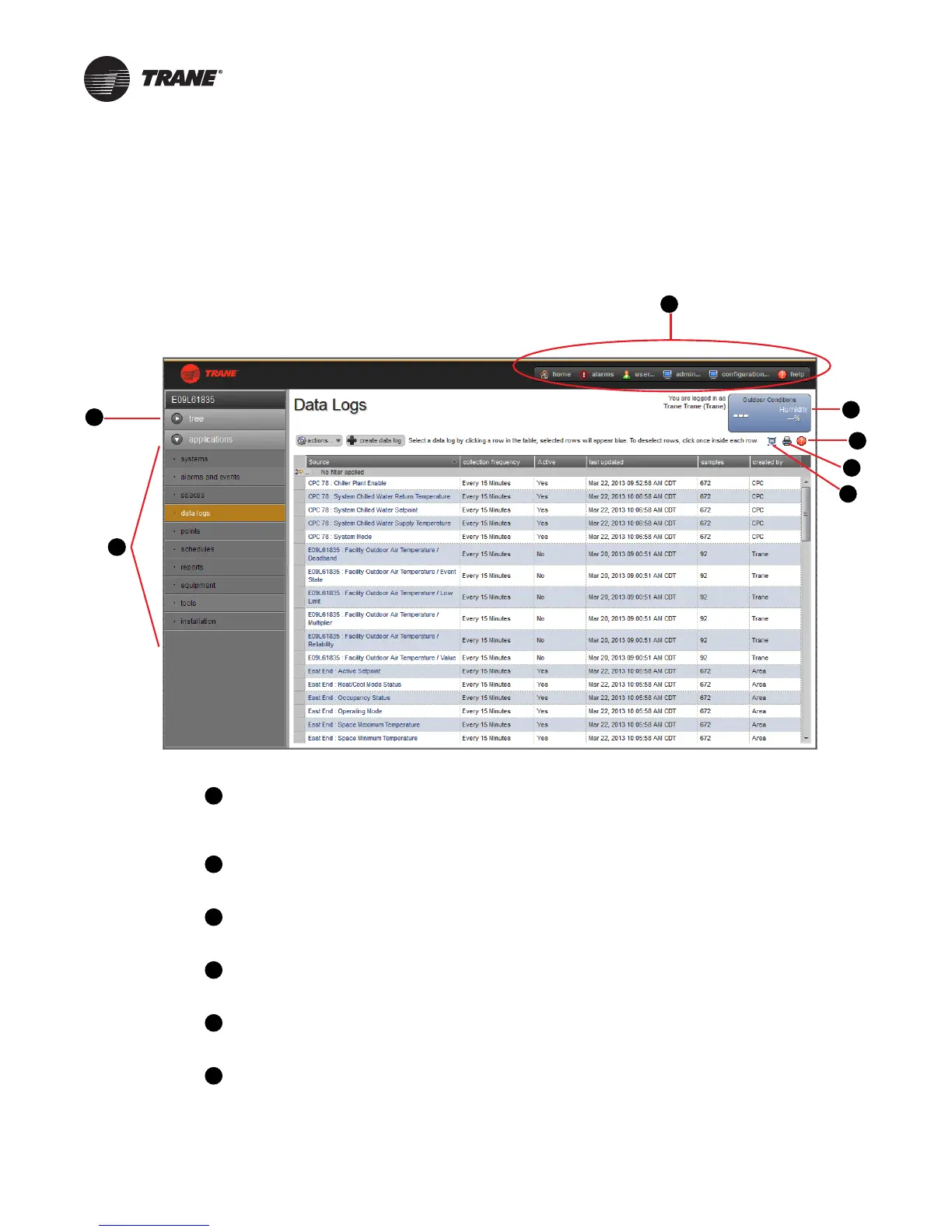

Figure 1. Navigational elements on the Tracer SC user interface
6
3
1
4
5
2
7
1
2
3
4
5
6
