The Navigation Tree
The navigation tree contains the logically ordered and grouped content of all the elements of your
HVAC system.The navigation tree populates automatically when spaces, systems, points, and
equipment are installed.
Using the Navigation Tree
Click the arrow icon on the navigation tree to expand the tree and display the contents (Figure 1).
The navigation tree can be customized according to your preferences and facility needs.The tree
must be unlocked before any editing can be done. Click the chain link icon located at the bottom
of the tree. when clicked, the edit bar appears which contains a number of edit icons.
Note: The tree must be unlocked before any changes can be made. Click the chain link icon
located at the bottom of the tree to enable editing.To save edits made to the navigation
tree, lock the tree by clicking the chain link icon.

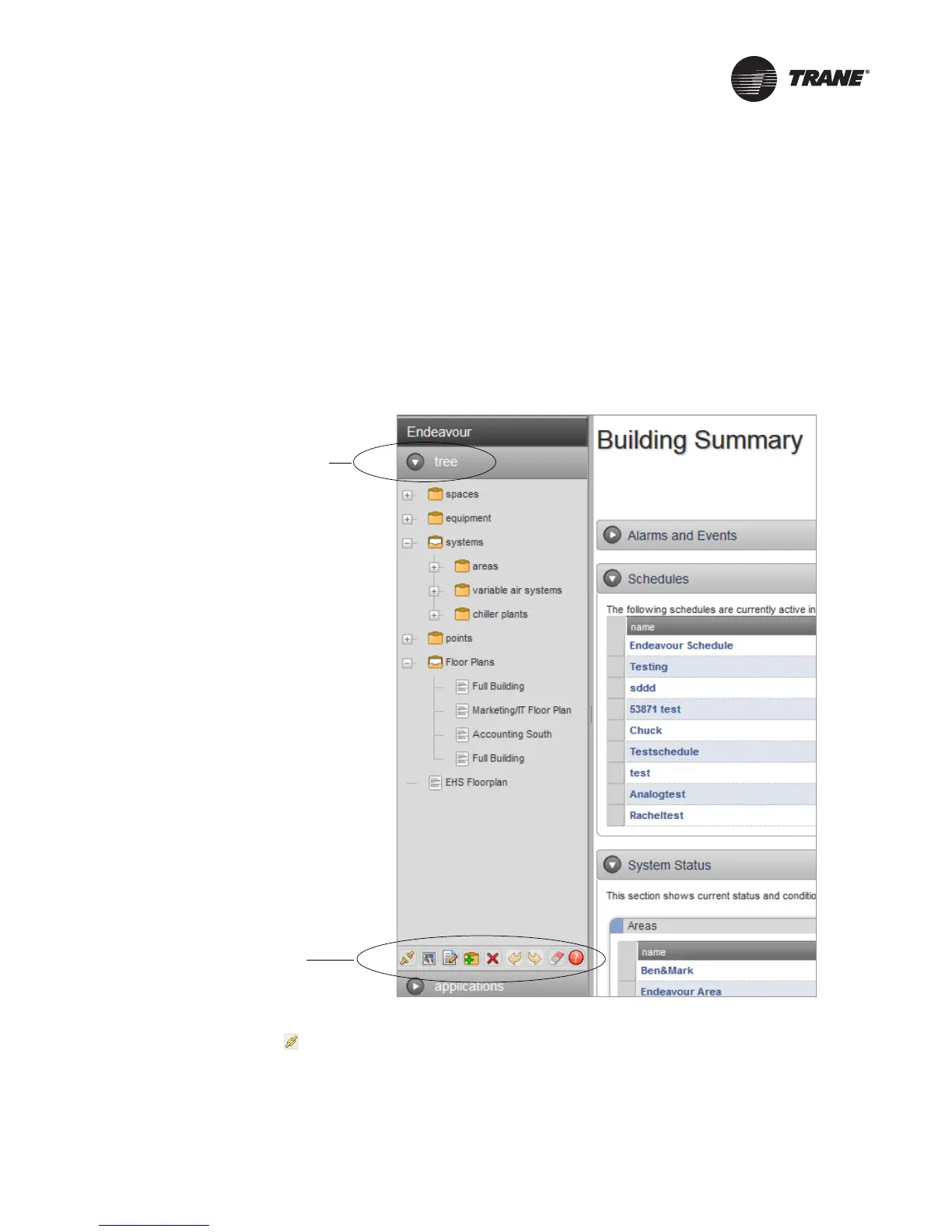

Figure 1. Expanding the navigation tree
Click the arrow
icon to expand
the tree
Edit bar
