Product Overview
TheTracer™ SC system controller (Tracer SC) serves as the central coordinator for all individual
equipment devices on aTracer building automation system.TheWeb-based interface of theTracer
SC system controller provides an easy and convenient way for building operators to access their
building automation system. Access is available from most PCs, tablets and smartphones that
meet system requirements.
Tracer SC Model Numbers
Tracer SC Components
TheTracer SC is equipped with the components shown in Figure 1.
Model number Description
BMSC000AAA011000 (current) Tracer SC with power supply module (PM014) with U.S. outlet, enclosure ordered separately
BMSC000AAA011100 (obsolete) Tracer SC system controller with power supply module (PM214) with U.S. outlet, in enclosure
BMSC000AAA011200 (obsolete) Tracer SC system controller with power supply module (PM214), in enclosure

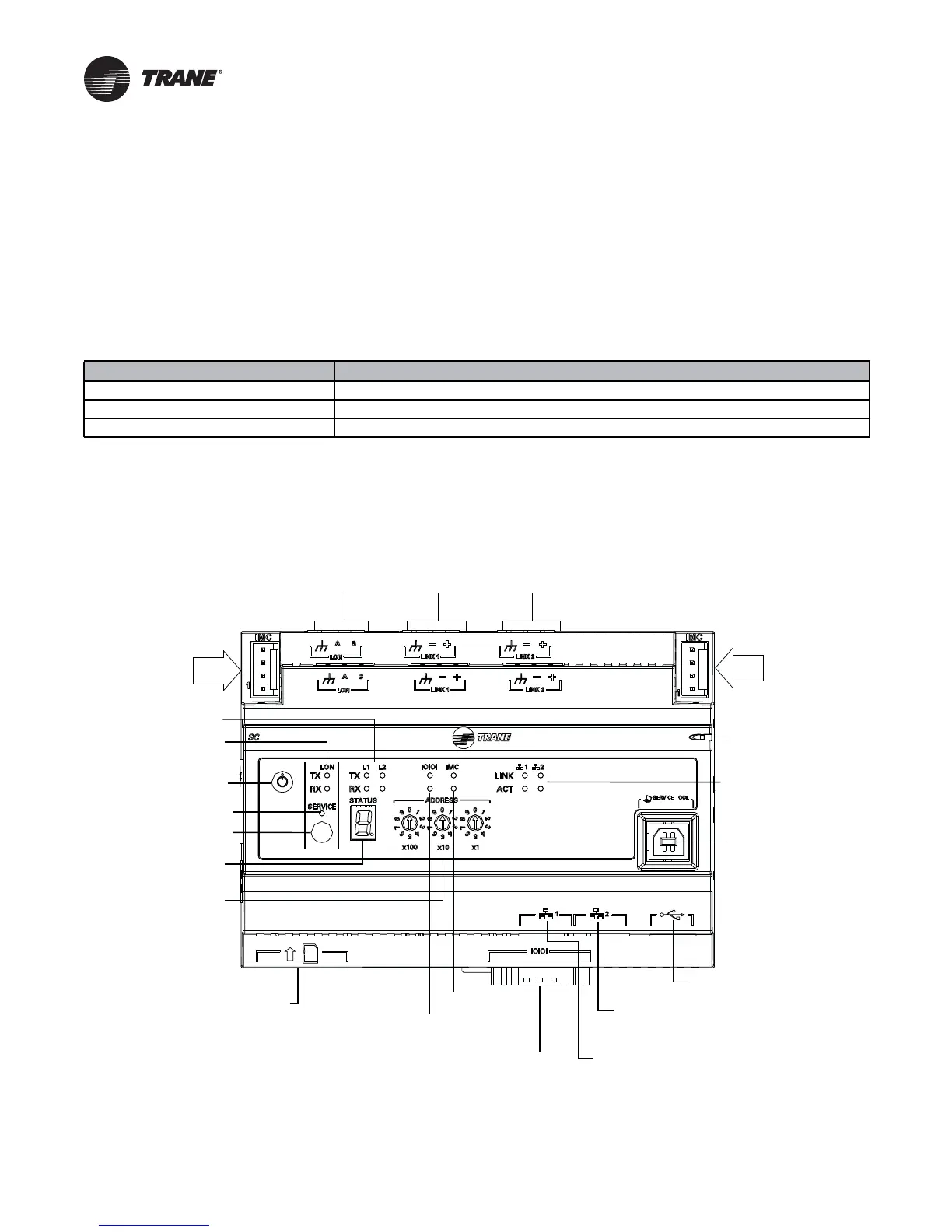

Figure 1. Tracer SC components
IMC
IMC
BACnet
MS/TP LINK 1
BACnet
MS/TP LINK 2
USB service
tool port
SD card port (future)
EIA-232 serial connection
USB host (future)
Ethernet network connection 2 (supports
TCP/IP) (recommended for direct
connection to PC)
Ethernet network connection 1 (supports
BACnet and TCP/IP (recommended for
building network connection)
Power button
Status LED
7-segment display
Rotary switches
LonTalk service pin
LonTalk
BACnet LEDs
Ethernet LEDs
LonTalk LEDs
LonTalk service LED
IMC LEDs
EIA-232 LEDs

Trane BMSC000AAA011000 Specifications

General

Brand	Trane
Model	BMSC000AAA011000
Category	Controller
Language	English
