Trane Jupiter JDAC Series User Manual

20

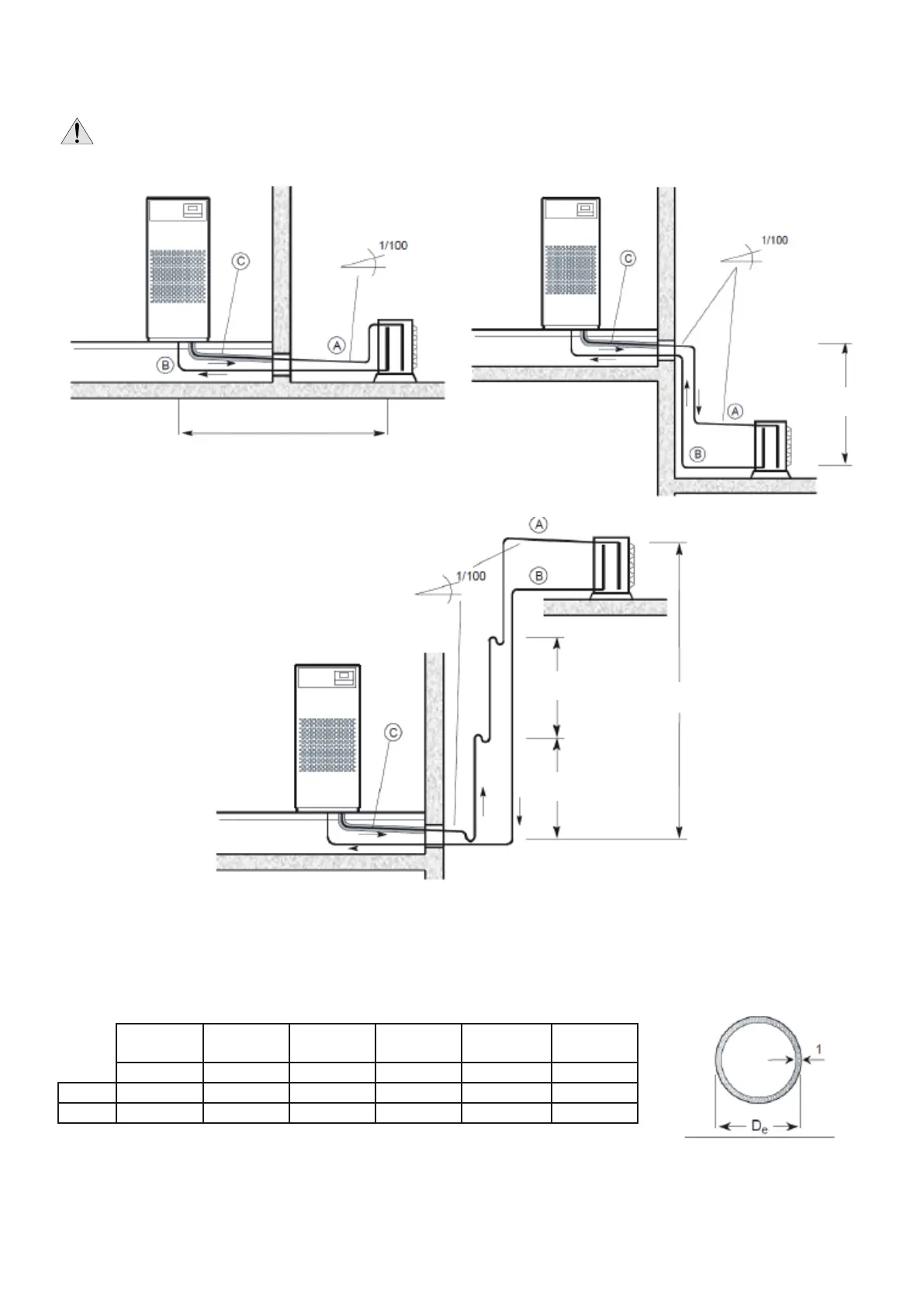

Refrigerant connections on air cooled units
Installation guide
WARNING! The pipes must always be protected from the sun.
SUA*0151
SDA*0151
SUA*0251
SDA*0251
SUA*0331
SDA*0331
SUA*0351
SDA*0351
SUA*0501
SDA*0501
SUA*0601
SDA*0601
De De De De De De
A 14 mm 16 mm 16 mm 18 mm 18 mm 22 mm
B 12 mm 12 mm 12 mm 14 mm 14 mm 16 mm
24
A: Discharge line
B: Liquid line
C: Thermal insulation
Recommended connections
SUA*0151
SDA*0151
SUA*0251
SDA*0251
SUA*0331
SDA*0331
SUA*0351
SDA*0351
SUA*0501
SDA*0501
SUA*0601
SDA*0601
De De De De De De
A 14 mm 16 mm 16 mm 18 mm 18 mm 22 mm
B 12 mm 12 mm 12 mm 14 mm 14 mm 16 mm
24
JUA*0115
JDA*0115
JUA*0125
JDA*0125
JUA*0133
JDA*0133
JUA*0135
JDA*0135
JUA*0150
JDA*0150
JUA*0160
JDA*0160
De De De De De De
A 12mm 12mm 14mm 16mm 18mm 18mm
B 12mm 12mm 12mm 14mm 14mm 16mm
MAX. 30 m
MAX.
5 m
MAX.
5 m
MAX.
5 m
MAX.
5 m
